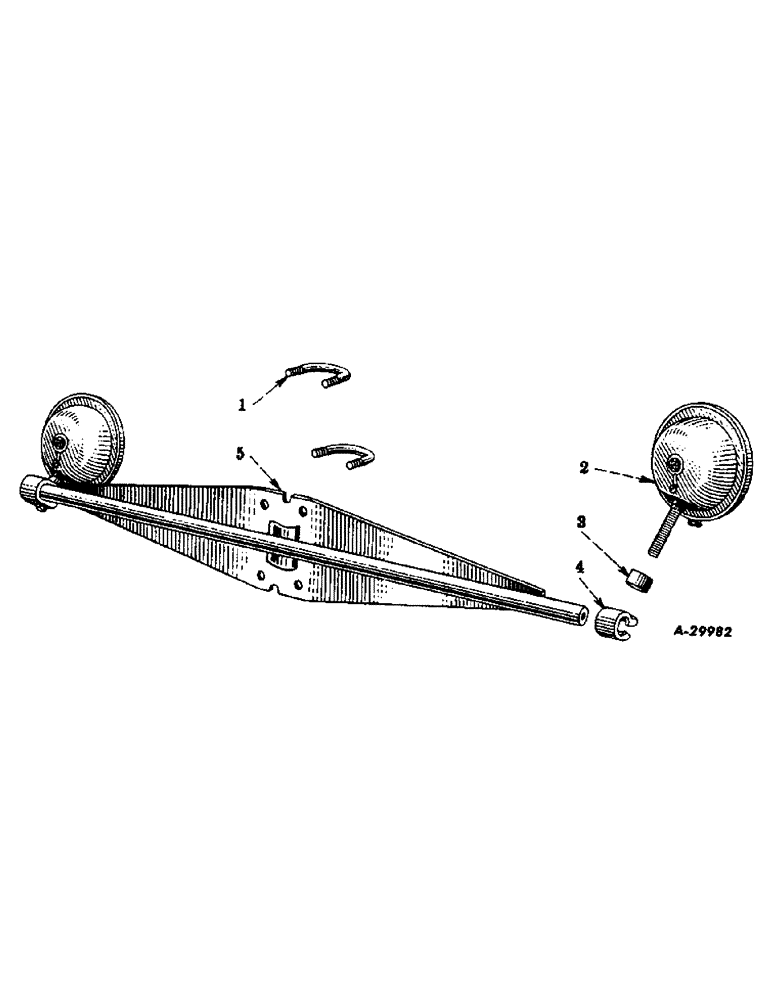

Запчасти Case IH FARMALL H (065) - ELECTRICAL SYSTEM, HEADLIGHT AND REAR LIGHT SUPPORTS (06) - ELECTRICAL SYSTEMS

1

59468D

HEADLIGHT SUPPORT U-BOLT (S/N 56140 up)

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

2

45640DB

LAMP

HEADLIGHT (Conventional) (For components see detail list of parts under "headlight or rear light" unit)

3шт.

2

357884R91

HEADLIGHT (Sealed beam) (For components see detail list of parts under "headlight or rear light" unit)

3шт.

3

49069D

SPACER

LIGHT SPACER

3шт.

4

350920R1

CLAMP

LIGHT CLAMP (Will work for 6780D)

3шт.

5

51675DC

HEADLIGHT SUPPORT PIPE AND PLATE

1шт.

9231D

REAR LIGHT SUPPORT (Order 66836D) (S/N 501 to)

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C. hex head

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

9231DA

REAR LIGHT SUPPORT (Optional with 353642R11)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

51678D

HEADLIGHT SUPPORT SADDLE (S/N, Serial Range: 501-56139)

1шт.

51679D

HEADLIGHT SUPPORT U-BOLT (S/N, Serial Range: 501-56139)

2шт.

103026

NUT,3/8"-24, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

66836D

REARLIGHT SUPPORT, 9231DA with screw, 179874 (Will work for 9231D) (S/N 501 to)

1шт.

179874

BOLT,Hex, 7/16" - 14 x 4", Gr 5

1шт.

353642R11

REAR LIGHT SUPPORT (Optional with 9231DA)

1шт.

179871

BOLT,Hex, 7/16" - 14 x 3 1/4", Gr 5

CAP SCREW, 7/16 x 3-1/4" N.C. hex head

1шт.
