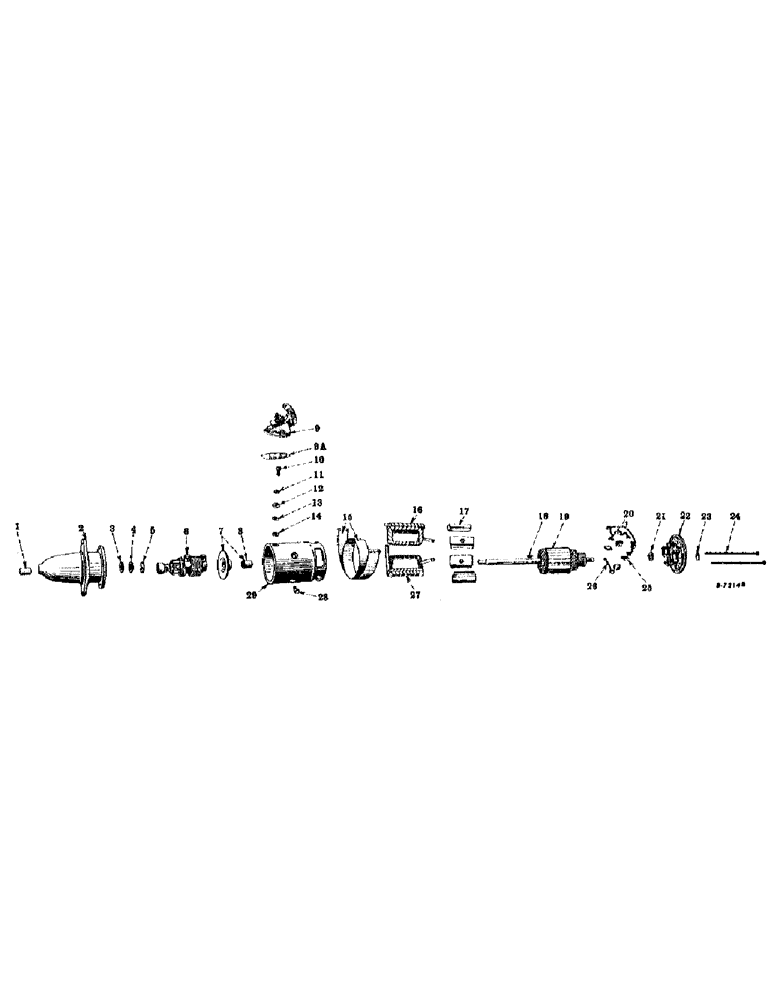

Запчасти Case IH FARMALL H (060) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, SERIAL NO. 391358 AND UP (06) - ELECTRICAL SYSTEMS

358160R91

CRANKING MOTOR (Mfr. no. 1108016)

1шт.

1

DRIVE HOUSING BUSHING (Mfr. no. 810620)

1шт.

2

DRIVE HOUSING WITH BUSHING, 810620 (Mfr. no. 1925547)

1шт.

3

DRIVE END SPACE WASHER (Mfr. no. 833602)

1шт.

4

809815

WASHER

DRIVE END SPACE WASHER (Mfr. no. 809815)

1шт.

5

1849774

WASHER

DRIVE END SPACE WASHER (Mfr. no. 1849774)

1шт.

6

MOTOR DRIVE (Mfr. no. 1868804)

1шт.

7

CENTER BEARING WITH BUSHING, 1838670 (Mfr. no. 1838667)

1шт.

.

SLOTTED SCREW, no. 10-32 x 5/16" N.F. round head (Blued) (Mfr. no. 142210)

2шт.

.

LOCKWASHER, no. 10 (Mfr. no. 106497)

2шт.

8

CENTER BEARING BUSHING (Mfr. no. 1838670)

1шт.

9

STARTING SWITCH (For components see list of parts under details of "starting switch") (Mfr. no. 1918405)

1шт.

9a

STARTING SWITCH GASKET (Mfr. no. 1912376)

1шт.

10

TERMINAL STUD (Mfr. no. 1913694)

1шт.

11

TERMINAL STUD WASHER PLAIN (Outside) (Mfr. no. 805790)

1шт.

11

TERMINAL STUD WASHER PLAIN (Inside) (Mfr. no. 812622)

1шт.

12

TERMINAL STUD INSULATING WASHER (3/4" O.D.) (Mfr. no. 1861076)

2шт.

13

TERMINAL STUD INSULATING WASHER (9/16" O.D.) (Mfr. no. 1904669)

2шт.

14

TERMINAL STUD NUT (Mfr. no. 1835299)

1шт.

15

COVER BAND (Mfr. no. 1886923)

1шт.

.

SLOTTED SCREW, no. 10-32 x 1-1/4" round head (Cadmium plated) (Mfr. no. 132926)

1шт.

.

HEX NUT, no. 10-32 (Mfr. no. 120614)

1шт.

16

UPPER FIELD COIL (Mfr. no. 817056)

1шт.

17

POLE SHOE (Mfr. no. 810601)

4шт.

.

POLE SHOE SCREW (Mfr. no. 1881869)

4шт.

18

WOODRUFF KEY (no. 6, 5/32 x 5/8") (Mfr. no. 124546)

1шт.

19

818002

ARMATURE

ARMATURE (Mfr. no. 818002)

1шт.

20

819362

CABLE

BRUSH CONNECTOR LEAD (Mfr. no. 819362)

2шт.

.

SLOTTED SCREW, no. 10-32 x 1/4" round head (Cadmium plated) (Mfr. no. 132892)

2шт.

.

LOCKWASHER, no. 10 (Mfr. no. 106497)

2шт.

21

COMMUTATOR END SPACE WASHER (Mfr. no. 833602)

1шт.

22

COMMUTATOR END FRAME (Mfr. no. 1881627)

1шт.

23

COMMUTATOR END FRAME PLUG (Mfr. no. 1865182)

1шт.

24

THRU BOLT (Mfr. no. 809053)

2шт.

.

LOCKWASHER, 1/4" (Mfr. no. 120380)

2шт.

25

BRUSH (Mfr. no. 811553)

4шт.

.

SLOTTED SCREW, no. 6-32 x 1/2" round head (Blued) (Mfr. no. 115903)

4шт.

26

GROUND BRUSH LEAD (Mfr. no. 813554)

2шт.

.

SLOTTED SCREW, no. 8-32 x 1/4" round head (Cadmium plated) (Mfr. no. 122159)

2шт.

.

LOCKWASHER, no. 8 (Mfr. no. 121841)

2шт.

27

FIELD COIL, lower (Mfr. no. 817055)

1шт.

28

FOLLOWS REFERENCE NO. 17 (Mfr. no. 1881869)

1шт.

29

FRAME (Not serviced separately)

1шт.

.

COMMUTATOR END OIL WICK (Mfr. no. 802694)

1шт.

.

DRIVE SPRING SCREW LOCKWASHER (Mfr. no. 805057)

2шт.

.

COMMUTATOR END DOWEL PIN (Mfr. no. 809062)

1шт.

.

DRIVE END DOWEL PIN (Mfr. no. 809593)

1шт.

.

BRUSH HOLDER (Mfr. no. 810226)

4шт.

.

BRUSH HOLDER STOP PIN WITH INSULATION (Mfr. no. 812015)

2шт.

.

BRUSH HOLDER HINGE PIN WITH INSULATION (Mfr. no. 812016)

2шт.

.

BRUSH SPRING (Mfr. no. 813521)

4шт.

.

BRUSH HOLDER HINGE PIN (Mfr. no. 817313)

2шт.

.

BRUSH HOLDER STOP PIN (Mfr. no. 817314)

2шт.

.

DRIVE MOTOR HEAD (Mfr. no. 1848530)

1шт.

.

MOTOR DRIVE SLEEVE (Mfr. no. 1849782)

1шт.

.

MOTOR DRIVE SPRING SCREW (Shaft end) (Mfr. no. 1850810)

1шт.

.

MOTOR DRIVE SPRING SCREW (At head) (Mfr. no. 1850811)

1шт.

.

DRIVE MOTOR SHAFT AND GEAR (Mfr. no. 1855629)

1шт.

.

MOTOR DRIVE SPRING (Mfr. no. 1860639)

1шт.

.

COMMUTATOR END FRAME OILER (Mfr. no. 1880642)

1шт.
