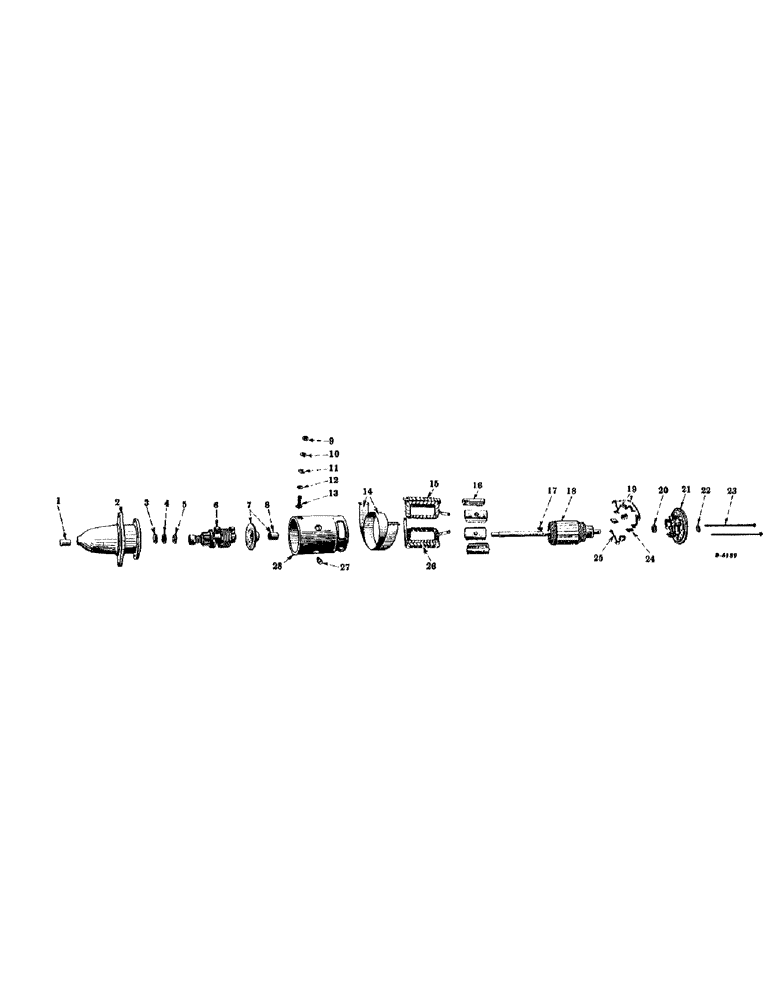

Запчасти Case IH FARMALL H (058) - ELECTRICAL SYSTEM, CRANKING MOTOR, DELCO-REMY, SERIAL NO. 501 TO 391357 (06) - ELECTRICAL SYSTEMS

63608D

SPARE PART CRANKING MOTOR (Mfr. no. 1107448)

1шт.

104220A2R

REMAN-STARTER

Remanufactured Starter 6 volt, intertia. Three Bolt Flange

1шт.

104220A1C

CORE-STARTER

Return Number

1шт.

104219A2GV

STARTER MOTOR

Value, 6V, 10MT

1шт.

104219A2R

REMAN-STARTER

Remanufactured Starter 6 volt, 10MT. Two Bolt Flange

1шт.

104219A1C

CORE-STARTER

Return Number, Starter 6 volt, 10MT

1шт.

1

DRIVE HOUSING BUSHING (Mfr. no. 810620)

1шт.

2

DRIVE HOUSING WITH BUSHING, 810620 (Mfr. no. 1887109)

1шт.

3

DRIVE END SPACE WASHER (Mfr. no. 833602)

1шт.

4

DRIVE END SPACE WASHER (Mfr. no. 809815)

1шт.

5

DRIVE END SPACE WASHER (Mfr. no. 1849774)

1шт.

6

MOTOR DRIVE (Mfr. no. 1868804)

1шт.

7

CENTER BEARING WITH BUSHING, 1838670 (Mfr. no. 1838667)

1шт.

.

SLOTTED SCREW, no. 10-32 x 5/16" round head (Blued) (Mfr. no. 142210)

2шт.

.

LOCKWASHER, no. 10 (Mfr. no. 802731)

2шт.

8

CENTER BEARING BUSHING (Mfr. no. 1838670)

1шт.

9

TERMINAL STUD NUT (Mfr. no. 805258)

2шт.

10

TERMINAL STUD WASHER, plain (Mfr. no. 805790)

1шт.

11

TERMINAL STUD INSULATING WASHER (Mfr. no. 1861076)

2шт.

12

TERMINAL STUD INSULATING WASHER (Mfr. no. 1904669)

2шт.

13

TERMINAL STUD (Mfr. no. 826938)

1шт.

.

LOCKWASHER, 3/8" (Mfr. no. 110730)

2шт.

14

COVER BAND (Mfr. no. 1886923)

1шт.

.

SLOTTED SCREW, no. 10-32 x 1-1/4", round head (Cadmium plated) (Mfr. no. 132926)

1шт.

.

HEX NUT, no. 10-32 (Mfr. no. 103088)

1шт.

15

UPPER FIELD COIL (Mfr. no. 1878635)

1шт.

16

POLE SHOE (Mfr. no. 810601)

4шт.

17

WOODRUFF KEY (no. 6, 5/32 x 5/8") (Mfr. no. 124546)

1шт.

18

ARMATURE (Mfr. no. 1871662)

1шт.

19

BRUSH CONNECTOR LEAD (Mfr. no. 819362)

1шт.

.

SLOTTED SCREW, no. 10-32 x 1/4", round head (Cadmium plated) (Mfr. no. 132892)

2шт.

.

LOCKWASHER, no. 10 (Mfr. no. 106497)

2шт.

20

COMMUTATOR END SPACE WASHER (Mfr. no. 833602)

1шт.

21

COMMUTATOR END FRAME (Mfr. no. 1881627)

1шт.

22

COMMUTATOR END FRAME PLUG (Mfr. no. 1865182)

1шт.

23

THRU BOLT (Mfr. no. 809053)

2шт.

.

LOCKWASHER, 1/4" (Mfr. no. 103319)

2шт.

24

BRUSH (Mfr. no. 811553)

4шт.

.

SLOTTED SCREW, no. 6-32 x 1/2", round head (Blued) (Mfr. no. 115903)

4шт.

.

LOCKWASHER, no. 6 (Mfr. no. 106495)

4шт.

25

GROUND BRUSH LEAD (Mfr. no. 813554)

2шт.

.

SLOTTED SCREW, no. 8-32 x 1/4", round head (Cadmium plated) (Mfr. no. 122159)

2шт.

.

LOCKWASHER, no. 8 (Mfr. no. 106496)

2шт.

26

LOWER FIELD COIL (Mfr. no. 1878636)

1шт.

27

POLE SHOE SCREW (Mfr. no. 1881869)

4шт.

28

FRAME (Not serviced separately)

1шт.

.

COMMUTATOR END FRAME OILER OIL WICK (Mfr. no. 802691)

1шт.

.

COMMUTATOR END FRAME OILER (Mfr. no. 1880642)

1шт.
