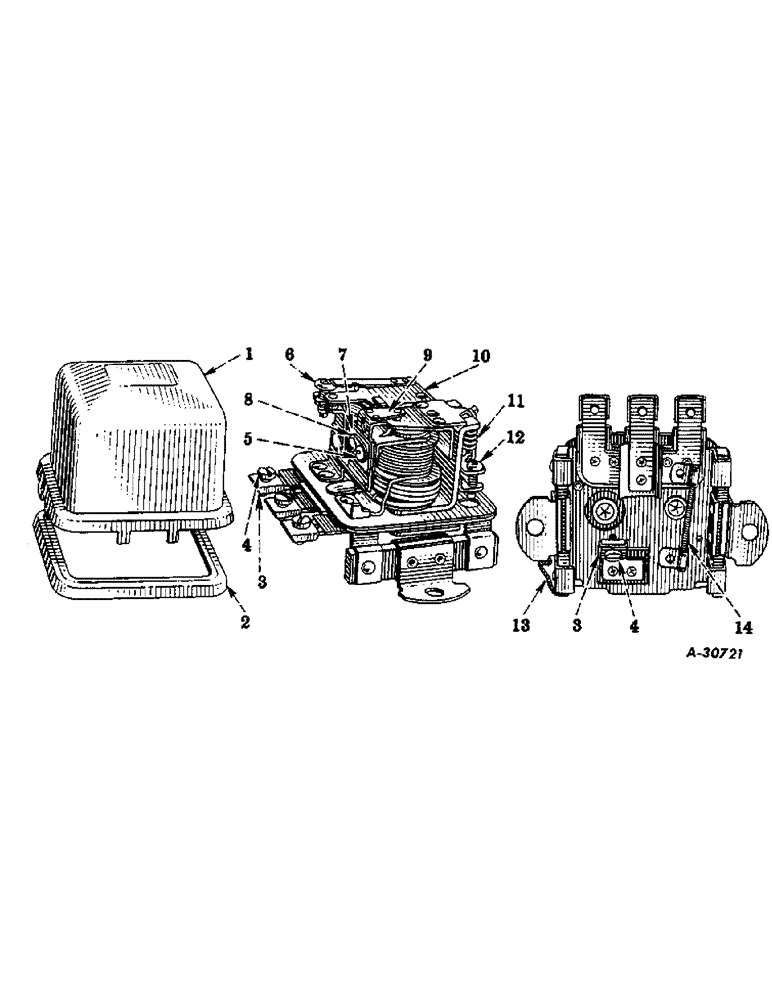

Запчасти Case IH FARMALL H (056) - ELECTRICAL SYSTEM, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

354234R91

REGULATOR

VOLTAGE REGULATOR (Delco-Remy) (Order 360898R91) (Mfr. no. 1118308)

1шт.

1

COVER (Mfr. no. 1909034)

1шт.

2

COVER GASKET (Mfr. no. 1909035)

1шт.

3

TERMINAL CLAMP (Mfr. no. 1868137)

4шт.

4

TERMINAL SCREW (Mfr. no. 1864099)

4шт.

5

REGULATOR CONTACT ATTACHING SCREW (Mfr. no. 1878516)

2шт.

6

ADJUSTING RELAY ARMATURE SCREW (Mfr. no. 1912159)

1шт.

7

INSULATING REGULATOR CONTACT ATTACHING SCREW WASHER (Mfr. no. 1878507)

2шт.

8

REGULATOR CONTACT ATTACHING SCREW LOCKWASHER (Mfr. no. 1878505)

1шт.

9

REGULATOR CONTACT AND SUPPORT (Mfr. no. 1878517)

1шт.

10

RELAY ARMATURE (Mfr. no. 1878780)

1шт.

RELAY ARMATURE SCREW (Mfr. no. 1904817)

2шт.

RELAY ARMATURE ATTACHING SCREW LOCKWASHER (Mfr. no. 1904377)

2шт.

11

REGULATOR ARMATURE SPRING (Mfr. no. 1912176)

1шт.

12

REGULATOR ARMATURE ADJUSTING SCREW (Mfr. no. 1912365)

1шт.

13

GROUND LEAD, ASSEMBLY (Mfr. no. 1885467)

1шт.

14

"F" TERMINAL TO GROUND RESISTOR (Mfr. no. 1885297)

1шт.

INSULATING REGULATOR CONTACT ATTACHING SCREW BUSHING (Mfr. no. 1878506)

2шт.

SHOCK MOUNTING PACKAGE (Mfr. no. 1913064)

1шт.
