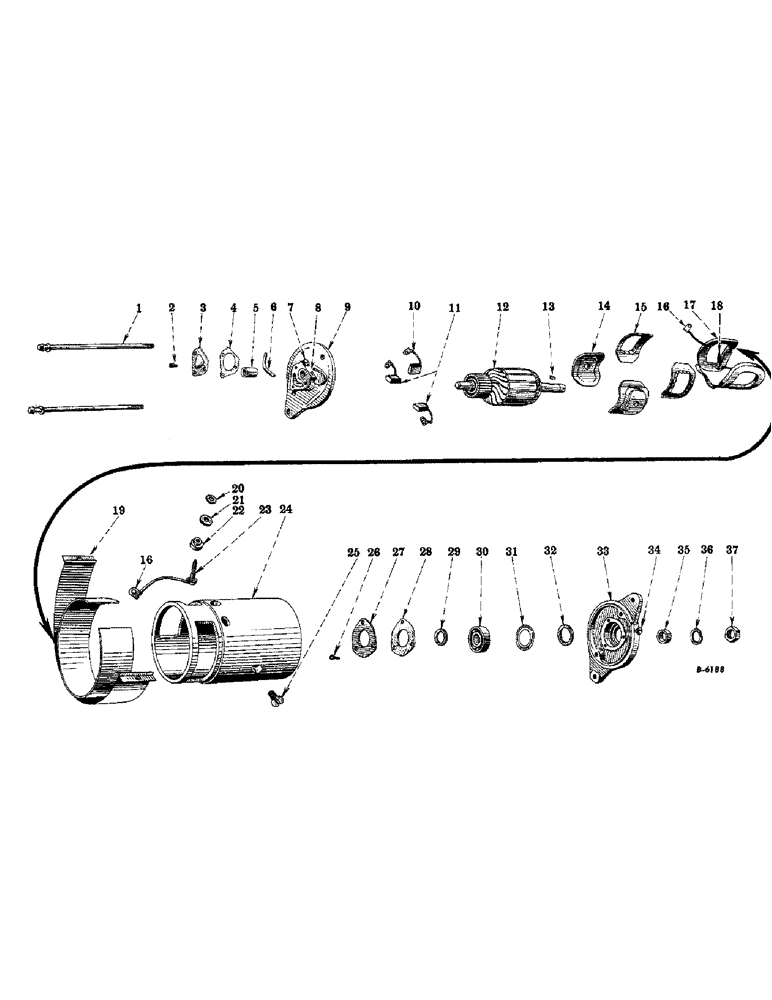

Запчасти Case IH FARMALL H (052) - ELECTRICAL SYSTEM, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

354237R91

GENERATOR, complete (Mfr. no. 1100501) (A)

1шт.

45634D

GENERATOR

complete (Mfr. no. 1101355) (B)

1шт.

1

THRU BOLT (Mfr. no. 815018) (A)

2шт.

1

THRU BOLT (Mfr. no. 815018) (B)

2шт.

LOCKWASHER, 5/16" (Cadmium plated) (Mfr. no. 120638)

2шт.

2

COMMUTATOR END COVER PLATE SCREW

3шт.

LOCKWASHER, no. 8 (Mfr. no. 106496) (A)

3шт.

LOCKWASHER (Mfr. no. 1904376) (B)

3шт.

3

COMMUTATOR END FRAME COVER PLATE (Mfr. no. 820524)

1шт.

4

COMMUTATOR END FRAME COVER PLATE GASKET (Mfr. no. 817220)

1шт.

5

COMMUTATOR END BUSHING (Mfr. no. 812823)

1шт.

6

COMMUTATOR END OIL WICK (Mfr. no. 804076)

1шт.

7

COMMUTATOR END OILER (Mfr. no. 1913564) (A)

1шт.

COMMUTATOR END OILER (Mfr. no. 1880635) (B)

1шт.

8

COMMUTATOR END OIL WICK PLUG (Mfr. no. 816315)

1шт.

9

COMMUTATOR END FRAME, complete (Mfr. no. 817216) (A)

1шт.

9

COMMUTATOR END FRAME, complete (Mfr. no. 1913564) (B), Consists of

1шт.

BUSHING (Mfr. no. 812823)

1шт.

PLUG (Mfr. no. 816315)

1шт.

WICK (Mfr. no. 804076)

1шт.

10

THIRD BRUSH (Mfr. no. 1880225) (B)

1шт.

10

THIRD BRUSH (Mfr. no. 1850768) (A)

1шт.

Ref #10 - Is included in the 1880998 Brush Set. 05/14/96

1шт.

SLOTTED SCREW, no. 6-32 N.C. x 1/4" round head (Cadmium plated) (Mfr. no. 132688) (A)

1шт.

SLOTTED SCREW, no. 6-32 N.C. x 3/16" round head (Mfr. no. 141540) (B)

1шт.

BRUSH LEAD ATTACHING SCREW, lockwasher (Mfr. no. 1904377)

1шт.

11

MAIN BRUSH (Mfr. no. 1836664) (B)

2шт.

11

MAIN BRUSH (Mfr. no. 1906923) (A)

2шт.

SLOTTED SCREW, no. 6-32 N.C. x 1/4" round head (Cadmium plated) (Mfr. no. 132688) (A)

2шт.

141540) (B)

2шт.

BRUSH LEAD ATTACHING SCREW, lockwasher (Mfr. no. 1904377)

2шт.

12

ARMATURE (Mfr. no. 1913560) (A)

1шт.

12

ARMATURE (Mfr. no. 1873054) (B)

1шт.

13

WOODRUFF, key, 5, 1/8 x 5/8" (Drive end) (Mfr. no. 124545)

1шт.

14

POLE SHOE (Mfr. no. 1914618) (A)

2шт.

14

816331

POLE SHOE (Mfr. no. 816331) (B)

2шт.

POLE SHOE SCREW (Mfr. no. 1843646)

2шт.

15

FIELD COIL INSULATOR (Mfr. no. 1914491) (A)

2шт.

16

TERMINAL, type "K" (Mfr. no. 200182)

2шт.

17

FIELD COIL SET (Mfr. no. 1902102) (B)

1шт.

17

FIELD COIL SET (Mfr. no. 1913554) (A)

1шт.

18

1858749

PLUG

TERMINAL STUD (Mfr. no. 1858749) (B)

1шт.

18

TERMINAL STUD (Mfr. no. 1858751) (A)

1шт.

HEX NUT, no. 12-24 N.C. (Cadmium plated) (Mfr. no. 121743)

2шт.

TERMINAL STUD LOCKWASHER (Mfr. no. 1904661)

2шт.

19

COVER, band (Mfr. no. 1872638)

1шт.

SLOTTED SCREW, no. 10-32NF x 1-1/2" round head (Cadmium plated) (Mfr. no. 132930)

1шт.

HEX NUT, no. 10-32 N.F. (Cadmium plated) (Mfr. no. 120614)

1шт.

20

TERMINAL STUD WASHER (Mfr. no. 1881409)

2шт.

21

TERMINAL STUD INSULATING WASHER (Mfr. no. 1858753)

2шт.

22

TERMINAL STUD INSULATING BUSHING (Mfr. no. 1885090) (A)

1шт.

23

TERMINAL STUD AND LEAD (Mfr. no. 1858754)

1шт.

HEX NUT, no. 12-24 N.C. (Cadmium plated) (Mfr. no. 121743)

2шт.

TERMINAL STUD LOCKWASHER (Mfr. no. 1904661)

2шт.

24

FRAME (Not serviced separately)

1шт.

25

FOLLOWS REFERENCE NO. 14 (Mfr. no. 1843646)

1шт.

26

RETAINER PLATE SCREW (Mfr. no. 1904370)

3шт.

LOCKWASHER (Mfr. no. 1880781)

3шт.

27

1911263

LARGE PLATE

BALL BEARING RETAINER PLATE (Mfr. no. 1911263)

1шт.

28

BALL BEARING RETAINER PLATE GASKET (Mfr. no. 1912008)

1шт.

29

SPACE WASHER, drive end (Mfr. no. 809945)

1шт.

30

BALL BEARING, drive end (Mfr. no. 954378)

1шт.

31

DRIVE END FELT WASHER RETAINER (Mfr. no. 819104)

1шт.

32

DRIVE END FELT WASHER (Mfr. no. 809961)

1шт.

33

DRIVE END FRAME, with/oiler, 1880641 (Mfr. no. 1873830)

1шт.

34

DRIVE END BEARING OILER (Mfr. no. 1880641)

1шт.

35

PULLEY SPACER (Mfr. no. 817224) (A)

1шт.

36

DRIVE END SHAFT NUT LOCKWASHER (Mfr. no. 804000)

1шт.

37

DRIVE END SHAFT NUT (Mfr. no. 1914308)

1шт.

BRUSH HOLDER (Mfr. no. 1850759) (A)

3шт.

BRUSH HOLDER (Mfr. no. 809642) (B)

3шт.

MAIN BRUSH PLATE (Mfr. no. 1913737) (A)

1шт.

THIRD BRUSH PLATE (Mfr. no. 809698)

1шт.

GENERATOR RELAY (Mfr. no. 1116766) (B)

1шт.

MAIN BRUSH SPRING (R.H.) (Mfr. no. 1850760) (A)

1шт.

MAIN BRUSH SPRING (R.H.) (Mfr. no. 809658) (B)

1шт.

MAIN BRUSH SPRING (L.H.) (Mfr. no. 1850760) (A)

1шт.

MAIN BRUSH SPRING (L.H.) (Mfr. no. 809644) (B)

1шт.

THIRD BRUSH SPRING (Mfr. no. 1850767) (A)

1шт.

THIRD BRUSH SPRING (Mfr. no. 809644) (B)

1шт.
