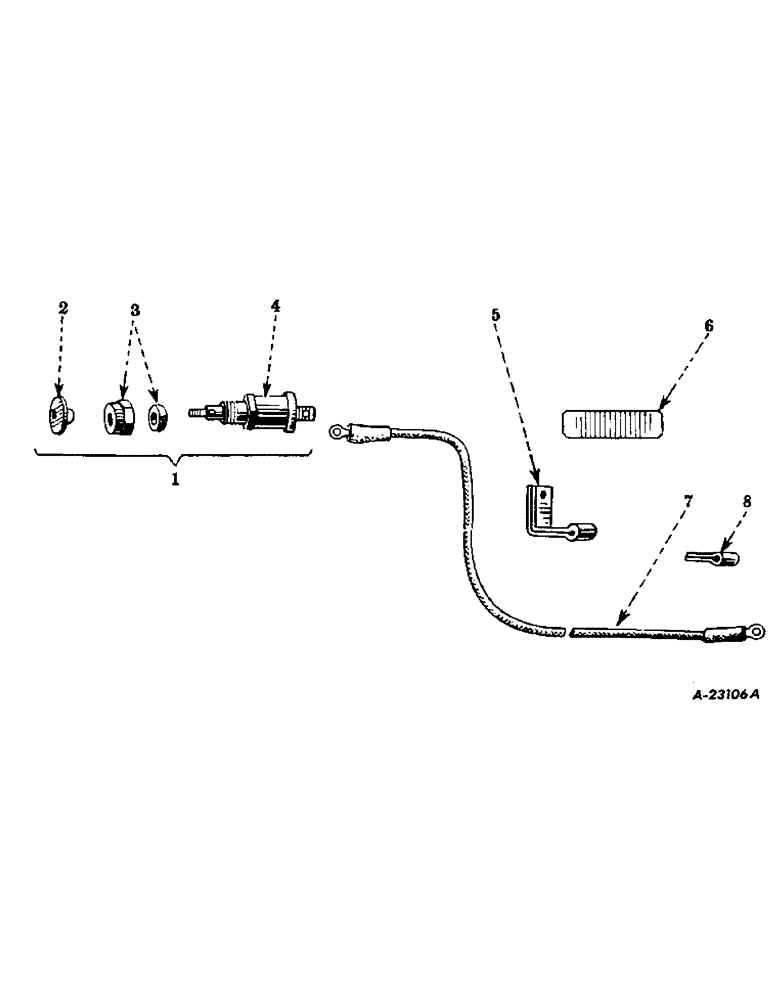

Запчасти Case IH FARMALL H (048) - ELECTRICAL SYSTEM, MAGNETO IGNITION SWITCH AND CABLE (06) - ELECTRICAL SYSTEMS

1

54207DB

SWITCH

MAGNETO IGNITION SWITCH, complete (S/N, Serial Range: 43875-340953)

1шт.

SLOTTED SCREW, no. 8-32 x 5/16" special head (Delco-Remy 1864099)

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

551655R1

WASHER

19/32" I.D. x 1" O.D. x no. 11 ga.

1шт.

2

8732D

SWITCH KNOB (S/N, Serial Range: 43875-340953)

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

3

56517DX

SWITCH MOUNTING NUT WITH SEAL (S/N, Serial Range: 43875-340953)

1шт.

138553

WASHER

LOCKWASHER, 9/16" (Internal tooth) (Cadmium plated) (Same as 55440D) (S/N, Serial Range: 43875-340953)

1шт.

4

MAGNETO IGNITION SWITCH (Order 54207DB)

1шт.

5

55471DA

CLIP, Magneto iginition switch cable (S/N, Serial Range: 43875-340953)

1шт.

6

350525R1

LOOM CLAMP (Will work for 28428D) (For tractors not equipped with starting and lighting)

1шт.

7

358316R91

CABLE, Magneto ignition switch (Will work for 54235D) (S/N, Serial Range: 43875-340953)

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SLOTTED SCREW, no. 10-32 x 5/16" (Fillister head) (Cadmium plated)

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

8

11248H

CLIP

Magneto ignition cable (S/N, Serial Range: 43875-340953)

2шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

1шт.

220064

NUT

HEX NUT, 1/4" N.C.

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

52728D

OIL PIPE CUSHION (Use with clamp, 350525R1)

1шт.

58262D

MAGNETO IGNITION SWITCH CABLE CLIP (For tractors not equipped with starting and lighting)

1шт.
