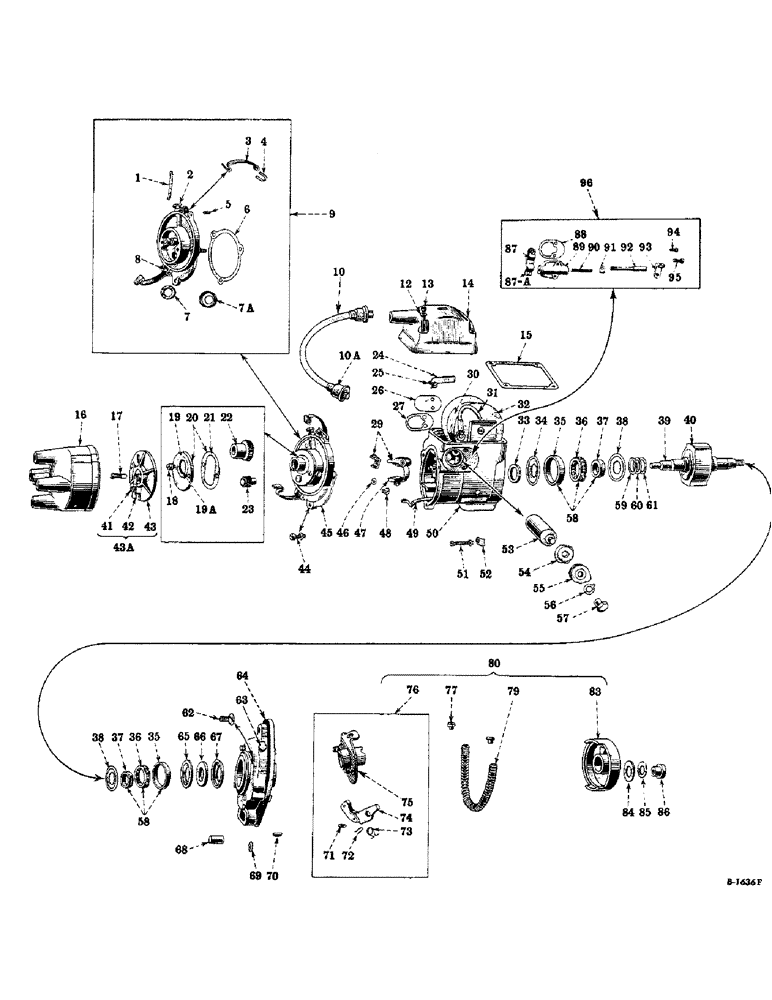

Запчасти Case IH FARMALL H (042) - ELECTRICAL SYSTEM, MAGNETO, INTERNATIONAL TYPE H-4 (06) - ELECTRICAL SYSTEMS

53180DA

MAGNETO, 47477DA with grounding switch, 50770DA (Will work for 50783DA) (Tractor, Serial Range: 501-43874)

1шт.

351218R92

MAGNETO

complete (Will work for 47477DA) (Tractors 43875 up)

1шт.

1

E4216

OIL WELL FELT

1шт.

2

E4295

OILER

1шт.

3

51666D

DISTRIBUTOR CAP SPRING

2шт.

4

55855D

DISTRIBUTOR CAP SPRING STOP PIN (Magneto, Serial Range: 59061-1002061)

1шт.

5

47424D

DISTRIBUTOR CAP LOCATING PIN

1шт.

6

47408D

GASKET

DISTRIBUTOR BODY GASKET

1шт.

7

49423D

DISTRIBUTOR BODY FELT SEAL

1шт.

7a

49424D

DISTRIBUTOR BODY FELT RETAINER

1шт.

8

51667D

DISTRIBUTOR CAP SPRING PIN

2шт.

MAGNETO, Serial Range: 59061-1002061

1шт.

9

6483DAY

DISTRIBUTOR BODY, complete

1шт.

132124

SCREW,Sl Fil Hd, #10 - 32 x 3/4"

SLOTTED SCREW, no. 10-32 x 3/4" fillister head (Cadmium plated)

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

10

356686R92

CABLE

COIL TO DISTRIBUTOR CABLE WITH 2 NIPPLES, 251553R1 (Will work for 49125D)

1шт.

10a

251553R1

BOOT

NIPPLE, coil to distributor cable

2шт.

12

38609DA

COIL COVER MOUNTING WASHER

4шт.

13

49791D

COIL COVER MOUNTING SCREW (Order 131997)

4шт.

14

47449DAY

COVER ASSY

COIL COVER WITH SECONDARY LEADOUT, complete

1шт.

131997

SLOTTED SCREW, no. 8-32 x 1-1/2" fillister head (Cadmium plated)

4шт.

15

47453D

GASKET

COIL COVER GASKET

1шт.

16

47413DXC

CAP

DISTRIBUTOR CAP

1шт.

16

47413DYC

CAP

DISTRIBUTOR CAP WITH BRUSH, 21350DXA or 32032DXA or 356622R11

1шт.

17

21350DXA

DISTRIBUTOR BRUSH WITH SPRING (Optional with 32032DXA or 356622R11)

1шт.

17

32032DXA

BRUSH

DISTRIBUTOR BRUSH WITH SPRING (Optional with 21350DXA or 356622R11)

1шт.

17

356622R11

DISTRIBUTOR BRUSH WITH SPRING (Optional with 21350 DXA or 32032DXA)

1шт.

18

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

FOLLOWS REFERENCE NO. 20

1шт.

19

49417D

DISTRIBUTOR GEAR COVER FELT RETAINER

1шт.

19a

49418D

DISTRIBUTOR GEAR COVER FELT SEAL

1шт.

20

49416DX

DISTRIBUTOR GEAR COVER, complete

1шт.

132760

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

SLOTTED SCREW, no. 8-32 x 1/2" round head (Cadmium plated)

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

21

49419D

GASKET

DISTRIBUTOR GEAR COVER GASKET

1шт.

22

49420DX

PINION

DISTRIBUTOR GEAR, 24 teeth

1шт.

23

47417DX

PINION

ROTOR PINION

1шт.

24

47452D

SECONDARY LEADOUT

1шт.

436652

SLOTTED SCREW, no. 4-48 x 5/16" pan head

1шт.

131093

LOCKWSHER, no. 4 (Cadmium plated)

1шт.

25

E4A546

SECONDARY LEADOUT SCREW (Order 436652)

1шт.

26

48343D

MAGNETO FRAME EXPANSION PLUG (Magneto 501 to Magneto 45589)

1шт.

26

55015D

CONDENSER HOLE COVER (Magneto 45590 up)

1шт.

121832

SCREW,Sl Rnd Hd, #8 - 32 x 3/8"

SLOTTED SCREW, no. 8-32 x 3/8" round head (Cadmium plated)

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

27

48472DA

GASKET

CONDENSER HOLE COVER GASKET (Magneto 45590 up)

1шт.

29

353171R91

CONTACT

BREAKER ARM AND STATIONARY POINT PACKAGE (Will work for 47431DB and 21388DBX)

1шт.

436692

SCREW,Slotted Pan Hd, #8-32 x 5/16"

SLOTTED SCREW, no. 8-32 x 5/16" pan head

1шт.

30

21314DX

CORE

COIL CORE WITH 2 SCREWS, 133495

1шт.

30

47439DAX

COIL ASSY.

COIL AND CORE, complete

1шт.

30

57926DX

COIL

complete with end insulators, 49593D

1шт.

31

47442D

PRIMARY TO CONDENSER LEADOUT TUBE

1шт.

32

49593D

COIL END INSULATOR

2шт.

33

E4226

BEARING FELT

1шт.

34

47454D

FELT RETAINER, inner

1шт.

35

ST601

RACE

ROTOR SHAFT BALL BEARING, outer race

2шт.

36

ST602

BEARING

ROTOR SHAFT BALL BEARING RETAINER AND BALLS

2шт.

37

ST600

BEARING

ROTOR SHAFT BALL BEARING, inner race

2шт.

38

E4A324

OIL FLINGER

2шт.

39

21341D

BREAKER CAM (Magneto 501 to Magneto 216969)

1шт.

39

60094D

BREAKER CAM (Magneto 216970 up)

1шт.

40

47455DAR

ROTOR, complete

1шт.

41

47427D

NUT

DISTRIBUTOR ROTOR NUT

1шт.

131181

LOCKWASHER, no. 6 (Cadmium plated)

1шт.

42

47428DA

ARM

DISTRIBUTOR ARM

1шт.

43

47425DX

DISTRIBUTOR ROTOR

1шт.

43a

47425DY

CAP

DISTRIBUTOR ROTOR, complete

1шт.

44

47409D

DISTRIBUTOR MOUNTING SCREW (Magneto 501 to Magneto 649261)

3шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

3шт.

45

56066DA

DISTRIBUTOR, complete

1шт.

46

21394D

WASHER

STAITONARY POINT SUPPORT WSHER

1шт.

47

47432D

ANCHOR

SPRING ANCHOR

1шт.

133482

SLOTTED SCREW, no. 8-32 x 3/8" flat head (Cadmium plated)

1шт.

120622

NUT,#8-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

48

21393D

STATIONARY POINT SUPPORT SCREW (Order 436692)

1шт.

49

47433DX

CABLE

PRIMARY LEADOUT

1шт.

50

6482DAY

FRAME, complete

1шт.

51

131992

LEVER

FOLLOWS REFERENCE NO. 52

1шт.

52

48339D

CONDENSER CLIP

1шт.

NLS

NO LONGER SERVICED

SLOTTED SCREW, no. 8-32 x 1-1/4" fillister head (Cadmium plated)

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

53

21409DB

CONDENSER

(Will work for 47546D)

1шт.

54

47438DA

SHORT CIRCUTING TERMINAL INNER WASHER

1шт.

55

48341D

SHORT CIRCUITING TERMINAL OUTER WASHER

1шт.

56

48342DA

SHORT CIRCUITING TERMINAL LOCKWASHER

1шт.

57

48340DA

SHORT CIRCUITING TERMINAL

1шт.

58

ST307

BALL BEARING,0.5906" ID x 1.378" OD x 0.315"

ROTOR SHAFT BALL BEARING

2шт.

59

E4A305

ROTOR SHIM, light

1шт.

60

E4212

ROTOR SHIM, medium

1шт.

61

E4A372

ROTOR SHIM, heavy

1шт.

62

173464

FOLLOWS REFERENCE NO. 64

1шт.

63

27311D

IMPULSE COUPLING OILER

1шт.

64

6515DAX

MOUNTING FLANGE, complete

1шт.

173464

SLOTTED SCREW, 1/4-20 x 9/16" flat head

4шт.

65

47474D

OIL RETAINER WASHER, inner (Order 353051R91)

1шт.

66

47475DA

OIL SEAL (Order 35051R91)

1шт.

67

47473D

OIL RETAINER WASHER, outer (Order 353051R91)

1шт.

68

47468DA

IMPULSE COUPLING STOP PIN

1шт.

69

114616

WASHER

MOUNTING FLANGE LOCKWASHER (Same as 46785D)

4шт.

70

106749

KEY

ROTOR SHAFT KEY (Woodruff no. 3, 1/8 x 1/2") (Same as 4167T)

1шт.

71

24610D

PAWL PIN WASHER (Used with 351434R91) (Will work for 47461D)

1шт.

71

47461D

PAWL PIN WASHER (Used with 47293DZ)

1шт.

72

47462D

PAWL PIN SNAP SPRING (Used with 47293DZ)

2шт.

72

30114D

PAWL PIN SNAP SPRING (Used with 351434R91) (Will work for 47462D)

2шт.

73

51303D

VALVE SPRING

PAWL SPRING (Magneto 7635 up)

2шт.

74

51304D

PAWL

(Used with 47293DZ) (Magneto 7635 up)

1шт.

74

351367R91

PAWL (Used with 351434R91) (Will work for 51304D)

1шт.

75

351366R91

MAGNETO MEMBER (Used with 351434R91) (Will work for 47293DX)

1шт.

75

47293DX

MAGNETO MEMBER (Used with 47293DZ)

1шт.

76

47293DY

MEMBER

MAGNETO MEMBER WITH PAWLS, complete (Used with 47293DZ)

1шт.

76

351434R91

MAGNETO MEMBER WITH PAWLS, complete (Used with 351365R91) (Will work for 47293DY)

1шт.

77

251555R1

BUTTON

SPRING END BUTTON (Will work for 47465D)

2шт.

79

47822D

SPRING

MAGNETO COUPLING SPRING

1шт.

80

47293DZ

ROTATING UNIT, complete (Order 351365R91)

1шт.

80

351365R91

ROTOR

ROTATING UNIT, complete (Will work for 47293DZ)

1шт.

83

47292DX

DRIVE MEMBER (Used with 47293DZ)

1шт.

83

251558R11

DRIVE MEMBER (Used with 351365R91) (Will work for 47292DX)

1шт.

84

24603D

MAGNETO MEMBER LOCKWASHER

1шт.

85

251591R1

IMPULSE COUPLING NUT LOCKWASHER

1шт.

86

47470D

IMPULSE COUPLING NUT

1шт.

87

50768D

GROUNDING SWITCH CONTROL WIRE CLAMP (Magneto 501 to Magneto 45589)

1шт.

131954

SCREW,Sl Fil Hd, #8 - 32 x 1/4"

no. 8-32 x 1/4" fillister head (Cadmium plated)

1шт.

120622

NUT,#8-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

87a

50769D

GROUNDING SWITCH CONTROL WIRE SUPPORT (Magneto 501 to Magneto 45589)

1шт.

88

48472D

SWITCH HOUSING GASKET (Magneto 501 to Magneto 45589)

1шт.

89

6674D

SWITCH HOUSING (Magneto 501 to Magneto 45589)

1шт.

131979

SCREW,Sl Fil Hd, #8 - 32 x 3/4"

no. 8-32 x 3/4" fillister head (Cadmium plated)

2шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

90

48475D

GROUNDING SWITCH SPRING (Magneto 501 to Magneto 45589)

1шт.

91

48473D

GROUNDING SWITCH CONTACT (Magneto 501 to Magneto 45589)

1шт.

92

48474D

GROUNDING SWITCH PLUNGER (Magneto 501 to Magneto 45589)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

93

49631D

GROUNDING SWITCH CONTROL LINK (Magneto 501 to Magneto 45589)

1шт.

94

51285D

GROUNDING SWITCH CONTROL CLAMP SCREW (Magneto 501 to Magneto 45589)

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

95

E4A358

GROUNDING SWITCH PLUNGER SCREW

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

96

50770D

MAGNETO GROUNDING SWITCH, complete (Magneto 501 to Magneto 45589)

1шт.

21372D

TUBE OF MAGNETO GREASE (Furnished when ordered)

1шт.

57314D

MAGNETO KEEPER

1шт.

57755D

BREAKER POINT GAUGE

1шт.

69398D

ELECTRICAL INSULATING VARNISH (1 pint) (Furnished when ordered)

1шт.

353051R91

HOLDER

OIL SEAL SERVICE PACKAGE

1шт.

359766R91

MAGNETO BALL BEARING GREASE

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

SLOTTED SCREW, no. 8-32 x 5/8" flat head (Cadmium plated)

1шт.
