Запчасти Case IH FARMALL H (040) - ELECTRICAL SYSTEM, BATTERY IGNITION UNIT (06) - ELECTRICAL SYSTEMS

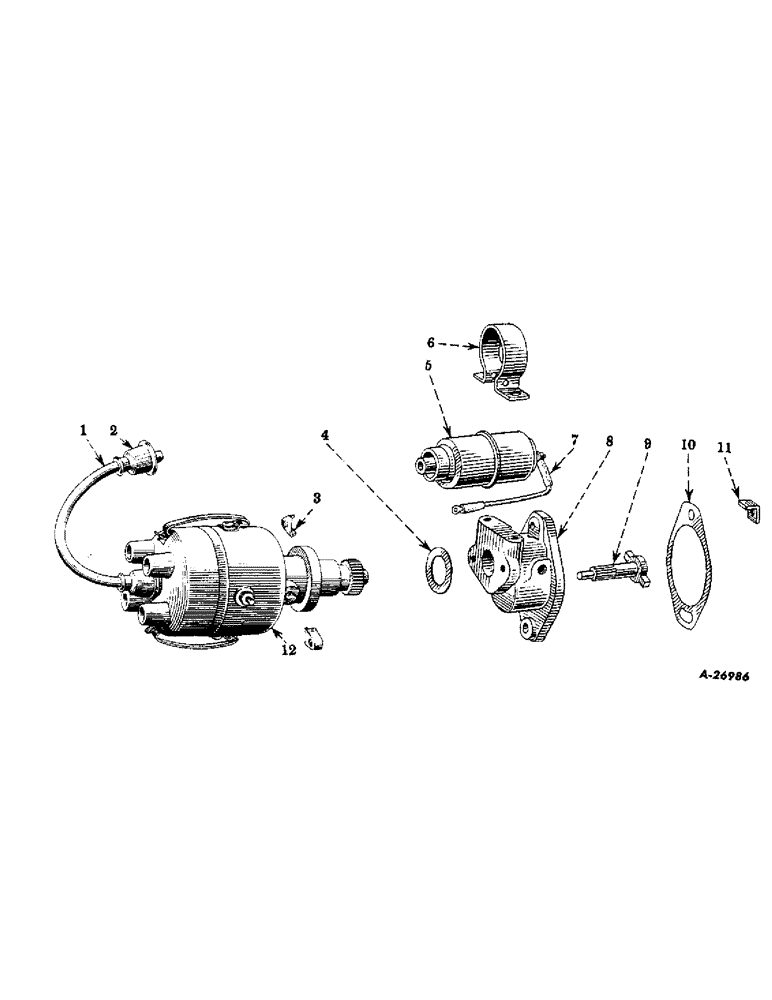

Схема запчастей Case IH FARMALL H - (040) - ELECTRICAL SYSTEM, BATTERY IGNITION UNIT (06) - ELECTRICAL SYSTEMS
12
2
5
7
8
9
1
6
10
11
4
3

Артикул

Название

Примечание

Количество

353870R91

BATTERY IGNITION UNIT, complete (Less ref. nos. 10 and 11)

1шт.

1

356686R92

CABLE

coil to distributor (Secondary), with two nipples, 251553R1

1шт.

2

251553R1

BOOT

NIPPLES

2шт.

3

353937R1

CLIP

DISTRIBUTOR CLAMP

2шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

CAP SCREW, 5/16 x 7/8" N.C. hex head (Cadmium plated)

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

DISTRIBUTOR GASKET

1шт.

5

353874R91

COIL

IGNITION COIL (6 volt) Clamp 107446c2 and Boot G46803 Must be purshed seperately

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

6

353889R1

CLAMP

COIL CLAMP

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

SLOOTED SCREW, no. 10-32 x 1-1/4" round head (Cadmium plated)

1шт.

120611

NUT,#10 - 32

SQUARE NUT, no. 10-32 (Cadmium plated)

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32" I.D. x 11/16" O.D. x no. 16 ga. (Cadmium plated)

2шт.

7

357929R91

ELECTRIC CABLE

CABLE, coil to distributor, primary (Will work for 353942R11)

1шт.

8

353933R11

DISTRIBUTOR DRIVE HOUSING

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8 x 1-1/8" N.C. hex head

2шт.

413-630

BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5

3/8 x 1-7/8" N.C. hex head

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

1шт.

9

353934R11

SHAFT

DISTRIBUTOR DRIVE SHAFT

1шт.

10

55780DD

GASKET

DISTRIBUTOR DRIVE HOUSING GASKET

1шт.

11

46868D

CLIP

DISTRIBUTOR MOUNTING CLIP

1шт.

12

353890R91

DISTRIBUTOR

complete

1шт.

37291D

TERMINAL CONNECTOR

TERMINAL, coil to distributor secondary cable

2шт.

353938R91

BATTERY IGNITION PACKAGE (Tractors equipped with magneto and electric starting and/or lighting)

1шт.

Выбрано товаров: 29
