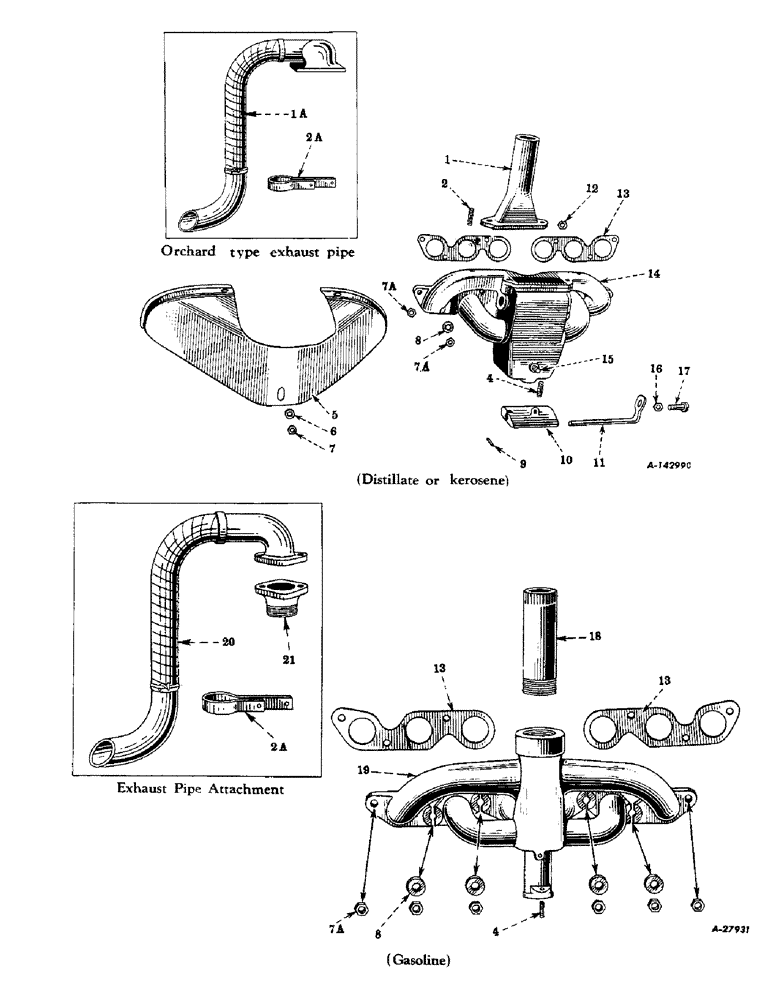

Запчасти Case IH FARMALL H (035) - ENGINE, MANIFOLD AND EXHAUST PIPE (01) - ENGINE

1

6713D

PIPE

exhaust (Distillate or kerosene)

1шт.

1a

54569D

PIPE AND FLANGE, exhaust (Special)

1шт.

2

46202D

STUD

exhaust pipe (Distillate or kerosene)

2шт.

2a

54568D

CLAMP, exhaust pipe (Special)

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

179824

BOLT,Hex, 5/16" - 18 x 1 3/4", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

4

25958D

STUD, carburetor

2шт.

425-115

NUT,5/16"-24, G5

hex., light, 5/16-24NF

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

48677DX

SHIELD, manifold heat (Distillate or kerosene)

1шт.

6

95-11041

WASHER,3/8"

Follows Ref 7 3/8"

1шт.

7

93082H

NUT

manifold shield stud (Distillate or kerosene) (S/N 106908 up)

3шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga) 3/8"

3шт.

7a

37684H

NUT

manifold to cylinder head stud (S/N, Serial Range: 501-106907)

6шт.

7a

43715D

NUT

manifold to cylinder head stud (S/N 106908 up)

6шт.

8

24523D

WASHER

manifold to cylinder head stud (S/N, Serial Range: 501-106907)

4шт.

8

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

manifold to cylinder head stud (106908 up)

4шт.

9

45097D

PIN

groove, 1/8 x 3/4" (Manifold heat control valve) (Distillate or kerosene) (S/N, Serial Range: 501-27576)

1шт.

9

38-31014

PIN,5/32" x 7/8", Coiled

groove, 5/32 x 3/8" (manifold heat control valve) (distillate or kerosene) (S/N 27577 up)

1шт.

10

6714DA

VALVE, manifold heat control (Distillate or kerosene) (S/N 27577 up)

1шт.

11

48673D

SHAFT, manifold heat control (Distillate or kerosene) (Order 6714DAX) (S/N, Serial Range: 501-27576)

1шт.

11

48673DA

SHAFT, manifold heat control valve (Distillate or kerosene) (S/N 27577 up)

1шт.

218438

NUT, jam, hex., 3/8-16NC

1шт.

102952

SCREW, set, sq-hd., cone-pt., 3/8-16NC x 1-1/4"

1шт.

12

114733

NUT, exhaust pipe stud (Distillate or kerosene) (Used with 6713D)

2шт.

12

220067

PIPE

NUT, exhaust pipe stud (Distillate or kerosene) (Used with 54569D)

2шт.

13

45197DD

MANIFOLD GASKET

manifold

2шт.

14

65287DA

MANIFOLD, exhaust and intake, with heat valve, assembly (Distillate or kerosene) (S/N 501 to 27576), Composed of

1шт.

45197DD

MANIFOLD GASKET

2шт.

6712DBY

MANIFOLD

1шт.

43715D

NUT

6шт.

63459D

STUD

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

4шт.

14

65286D

MANIFOLD, exhaust and intake (Distillate or kerosene) (S/N 27577 to 106907), Composed of

1шт.

45197DD

MANIFOLD GASKET

2шт.

6712DBX

MANIFOLD

1шт.

43715D

NUT

6шт.

63459D

STUD

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

4шт.

14

6712DBX

MANIFOLD, exhaust and intake (Distillate or kerosene) (S/N 106908 up), Composed of

1шт.

6712DB

MANIFOLD (NSS)

1шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

Pin, Grooved, 3/16" x 1/2", Type A

1шт.

25958D

STUD

2шт.

46102D

STUD

3шт.

46202D

STUD

2шт.

14

6712DBY

MANIFOLD, exhaust and intake, with heat valve, assembly (Distillate or kerosene) (S/N 106908 up), Composed of

1шт.

6712DBX

MANIFOLD

1шт.

218438

NUT

1шт.

38-31014

PIN,5/32" x 7/8", Coiled

Grooved, 5/32" x 7/8", Type A

1шт.

102952

SCREW

1шт.

48673DA

SHAFT

1шт.

6714DA

VALVE

1шт.

23007V

EXCITER

PLUG, expansion, 1" dia. (Intake manifold) (S/N, Serial Range: 501-50226)

1шт.

15

46102D

STUD, manifold shield (Distillate or kerosene)

3шт.

16

218438

FOLLOW REFERENCE NO.11

1шт.

17

102952

FOLLOW REFERENCE NO. 11

1шт.

18

62476D

PIPE

exhaust (Gasoline)

1шт.

19

8033DCY

MANIFOLD

exhaust and intake, assembly (gasoline) (S/N 501 to 106907), Composed of

1шт.

45197DC

GASKET

2шт.

8033DCX

MANIFOLD

1шт.

43715D

NUT

6шт.

63459D

STUD

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

4шт.

19

8033DCX

MANIFOLD

exhaust and intake, with plug, 103865 (Gasoline) (S/N 106908 up)

1шт.

103865

PLUG, pipe, sq-hd., 1/8" (Optional with 103877)

1шт.

103877

PLUG

pipe, sq-hd., 1/8" (Optional with 103865)

1шт.

20

57992D

PIPE AND FLANGE, exhaust (Special) (Gasoline) (Note B)

1шт.

114773

NUT, hex., 7/16-14NC

2шт.

179862

BOLT,Hex, 7/16" - 14 x 1 1/2", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 1-1/2"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

21

9117D

FLANGE, exhaust pipe adapter (Special) (Gasoline)

1шт.

656830R91

COVER, exhaust pipe opening (Special)

1шт.

6714DAX

PACKAGE, repair, manifold heat valve (Distillate or kerosene) (S/N 501 to 27576), Composed of

1шт.

48674DA

COLLAR (NSS)

1шт.

57389D

PIN

1шт.

48673DA

SHAFT

1шт.

6714DA

VALVE

1шт.
