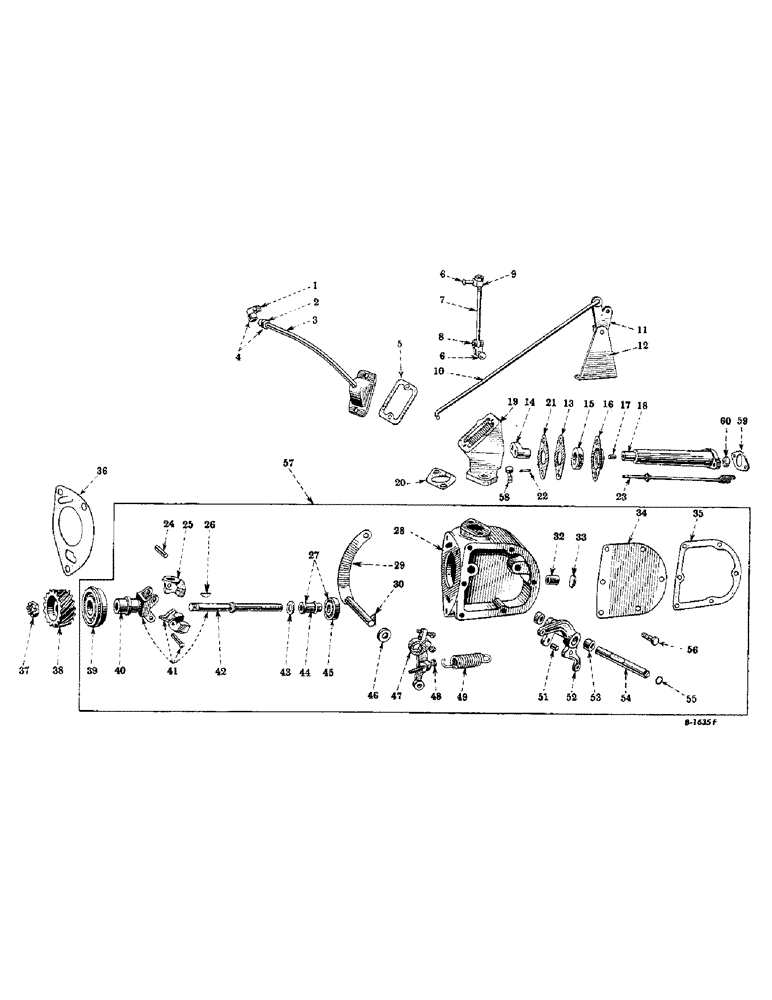

Запчасти Case IH FARMALL H (031) - ENGINE, GOVERNOR AND CONNECTIONS (01) - ENGINE

1

37323D

ELBOW,90 Degree x 1/4" NPT x 9/16"-20

governor breather tube

1шт.

2

278953R91

NUT

governor breather tube connector

1шт.

3

51209DX

TUBE, governor breather, with throttle lever cover and nut, 278953R91

1шт.

114353

SCREW,Slotted Fil Hd, 1/4"-20 x 1/2"

fil-hd., 1/4-20NC x 1/2"

2шт.

4

37323DX

ELBOW

37323D, governor breather tube, with nut, 278953R91

1шт.

5

48501DA

GASKET

throttle lever cover

1шт.

6

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, connecting, throttle shaft lever

1шт.

NLS

NO LONGER SERVICED

PIN, cotter, 1/16 x 1/2"

1шт.

6

103494

ADJUSTABLE CLEVIS,1/4" x .770"

PIN, rockshaft lever

1шт.

103361

PIN, SPLIT (COTTER)

PIN, cotter, 1/16 x 1/2"

1шт.

7

48495DX

BOLT

ROD, connecting, throttle shaft, with block and pin, 48496DA

1шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

1шт.

8

48496DA

PIN, throttle connecting rod

1шт.

9

6289D

BLOCK, adjusting, governor connecting rod

1шт.

10

48683DA

ROD, governor control, front

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

Q243

WASHER

plain, 21/64" ID x 3/4" OD x no. 16 ga.

2шт.

11

6715DA

LEVER

BELLCRANK, governor control

1шт.

12

48679DX

BRACKET, governor control bellcrank, with pin

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

plain, 17/32" ID x 1-1/16" OD x no. 13 ga.

1шт.

13

54088D

PLATE, retainer, throttle shaft housing felt

1шт.

14

6288D

LEVER

throttle shaft

1шт.

15

48493D

WASHER

WASHER, felt, throttle shaft housing

1шт.

16

48492D

RETAINER, felt, throttle shaft housing

1шт.

114354

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

fil-hd., 1/4-20NC x 5/8"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

16558R1

WASHER

plain, 17/64" ID x 5/8" OD x no. 18 ga.

2шт.

17

45696D

BUSHING

throttle shaft

1шт.

18

6677DBY

HOUSING

governor throttle shaft, assembly (S/N 501 to 9461), Composed of

1шт.

6677DBX

HOUSING

1шт.

6288D

LEVER

1шт.

142956

PIN

1шт.

48487DXA

SHAFT

1шт.

18

6677DBX

HOUSING

governor throttle shaft, with bushing, 45696D and oil seal, 362201R91 (S/N 9462 up)

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

slotted-rd-hd., 1/4-20NC x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

19

6678D

HOUSING, governor connecting rod

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

1шт.

20

48489D

GASKET

governor connecting rod housing

1шт.

21

53877DA

GASKET

throttle shaft housing felt retainer

1шт.

22

142952

GROOVED PIN

Pin, Grooved, 3/32" x 1/2", Type A, throttle shaft lever

1шт.

23

48487DXA

SHAFT

throttle (S/N 9462 up)

1шт.

24

45656DA

PIN,6.35mm OD x 38.1mm L

governor weight

2шт.

25

45655DA

WEIGHT

governor

2шт.

26

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

27

351910R91

BEARING ASSY

SLEEVE, governor, 48250D, with bearing, ST506 (Will work for 48250DX)

1шт.

28

8363DBZ

HOUSING, governor, 8363DBX, rockshaft, 48253DA, and snap ring, 21362D (Will work for 6634DA and DB) (S/N, Serial Range: 501-7385)

1шт.

28

8363DBX

HOUSING, governor, with bushing, 48227D, plug, 172540, seal, 45667D and washer, 103322 (Will work for 6634 DC and DD) (S/N 7386 up)

1шт.

29

48842DAX

LEVER

speed change, with shaft (Optional with 355989R11)

1шт.

29

355989R11

LEVER

speed change, with shaft (Optional with 48842DAX)

1шт.

30

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Governor spring lever #3, 1/8" x 1/2", HT

1шт.

32

48227D

BUSHING

governor housing

1шт.

33

41-3014

PLUG,Exp, 7/8"

expansion, 7/8" (In governor housing)

1шт.

34

49107D

COVER, governor housing

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

SCREW, cap, hex-hd., 5/16-18NC x 3/4"

4шт.

28950D

WASHER

governor housing cover

6шт.

35

49108DA

GASKET

governor housing cover

1шт.

36

45685D

GASKET

governor housing

1шт.

37

250285R1

FOLLOW REFERENCE NO. 42

1шт.

38

45671D

GEAR, governor (16 teeth)

1шт.

39

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING, governor shaft

1шт.

40

48256DA

CARRIER

governor weight, with hub

1шт.

41

359000R91

GOVERNOR

WEIGHT, governor, with carrier, assembly (Will work for 48256DAXA), Compos of

1шт.

48256DA

CARRIER

1шт.

124547

WOODRUFF KEY,#7, 1/8" x 3/4", HT

1шт.

451074

NUT

1шт.

45656DA

PIN,6.35mm OD x 38.1mm L

2шт.

48255DA

SHAFT

1шт.

45655DA

WEIGHT

2шт.

42

48255DA

SHAFT

governor

1шт.

451074

NUT, jam, hex., 9/16-18NF

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

43

45653D

THRUST WASHER

thrust, governor sleeve

1шт.

44

48250D

SLEEVE

governor

1шт.

45

ST506

BALL BEARING,17 mm ID x 40 mm OD x 12 mm

BEARING, ball, governor

1шт.

46

45667D

SEAL

speed change shaft

1шт.

47

6676DB

LEVER

governor spring

1шт.

109084

NUT,1/4"-20, G5

2шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

48

49528DA

BOLT, governor spring lever, long

1шт.

109084

NUT,1/4"-20, G5

1шт.

49

49407DBX

SPRING

governor (Optional with 357012R1)

1шт.

49

357012R1

VALVE SPRING

SPRING, governor (Optional with 49407DBX)

1шт.

51

48254D

PIN, thrust, governor rockshaft lever

2шт.

52

6633DBX

LEVER

governor rockshaft, with two pins, 48254D

1шт.

53

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

governor rockshaft (torrington B-88)

2шт.

54

48253DA

ROCKSHAFT

governor

1шт.

55

21362D

RING, snap, governor rockshaft (S/N 7386 up)

1шт.

56

364489R1

SCREW, governor housing cover (Will work for 10958D)

2шт.

28950D

WASHER

governor housing cover screw

2шт.

57

360087R91

GOVERNOR, variable speed, assembly

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

58

364489R1

SCREW, governor connecting rod housing (Will work for 10958D)

1шт.

59

66272D

GASKET

throttle shaft, Serial Range: housing-carburetor

1шт.

60

362201R91

OIL SEAL

OIL SEAL, governor throttle shaft

1шт.

13115D

PLUG

expansion, rockshaft opening, 5/8" diam (S/N, Serial Range: 501-7385)

1шт.

12736D

ELECTRICAL WIRE

SEAL, governor

1шт.

363144R92

GASKET

PACKAGE, governor gasket, Composed of

1шт.

45685D

GASKET

1шт.

48489D

GASKET

1шт.

48501DA

GASKET

1шт.

49108DA

GASKET

1шт.

53877DA

GASKET

1шт.

66272D

GASKET

1шт.

48493D

WASHER

WASHER

1шт.

356732R94

GOVERNOR

PACKAGE, service, governor overhaul, Consists of

1шт.

ST289

BEARING, BALL,25mm ID x 62mm OD x 17mm W

BEARING

1шт.

45775D

NEEDLE BEARING,Needle, 12.74mm ID x 17.48mm OD x 12.7mm W

2шт.

351910R91

BEARING ASSY

AND SLEEVE

1шт.

48227D

BUSHING

1шт.

45685D

GASKET

1шт.

48489D

GASKET

1шт.

48501DA

GASKET

1шт.

49108DA

GASKET

1шт.

53877DA

GASKET

1шт.

66272D

GASKET

1шт.

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

48842DAX

LEVER

1шт.

451074

NUT

1шт.

45667D

SEAL

OIL SEAL

1шт.

172540

PULLEY

1шт.

12736D

ELECTRICAL WIRE

SEAL

1шт.

49407DBX

SPRING

1шт.

45653D

THRUST WASHER

1шт.

48493D

WASHER

WASHER

2шт.

48256DAXB

CARRIER

WEIGHT

1шт.
