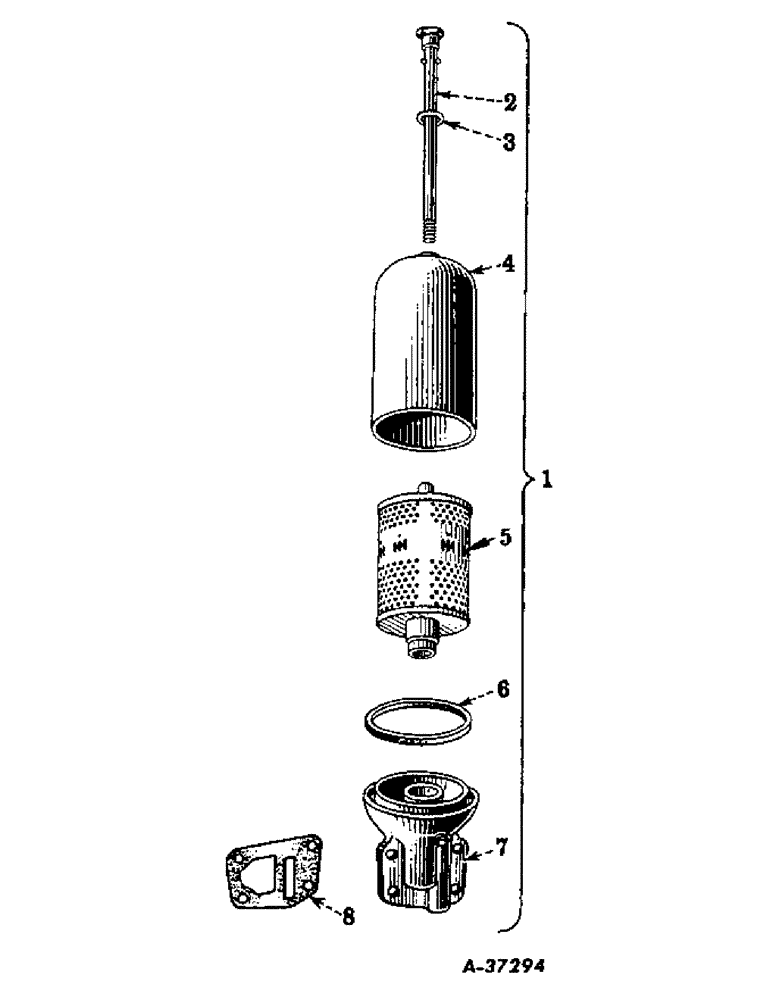

Запчасти Case IH FARMALL H (024) - ENGINE, LUBRICATING OIL FILTER (01) - ENGINE

1

57168DD

FILTER, oil, assembly (Includes reference nos. 1 thru 7)

1шт.

2

43418DA

BOLT

retaining, oil filter case (S/N, Serial Range: 501-121021)

1шт.

2

63857DA

BOLT

retaining, oil filter case (S/N 121022 up)

1шт.

3

13727D

GASKET

GASKET, oil filter case retaining bolt (Will work for 365109R1)

1шт.

4

43417DX

CASE, oil filter (S/N, Serial Range: 501-121021)

1шт.

4

63856D

CASE

oil filter (S/N 121022 up)

1шт.

5

355010R91

FILTER, ENGINE OIL

ELEMENT, oil filter (Heavy duty radial fin type) (Note) (S/N, Serial Range: 501-121021)

1шт.

5

360431R91

ELEMENT

oil filter (Normal duty radial fin type) (S/N, Serial Range: 501-121021)

1шт.

5

355009R91

NO LONGER SERVICED

ELEMENT, oil filter (Heavy duty radial fin type) (Note) (S/N 121022 up)

1шт.

5

360430R91

ENGINE OIL FILTER

ELEMENT, oil filter (Normal duty radial fin type) (S/N 121022 up)

1шт.

6

13728D

GASKET

oil filter case

1шт.

7

6253DBX

BASE, oil filter, with plug, 103866

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., CI, 1/4" (Optional with 103878)

1шт.

103878

PLUG

pipe, sq-hd., stl., 1/4" (Optional with 103866)

1шт.

NLS

NO LONGER SERVICED

(Note) Hex, 3/8"-16 x 1", G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (Note) 3/8"

4шт.

8

45447D

GASKET

oil filter base

1шт.

64156D

EXTENSION, oil filter base inlet (Note)

1шт.

538828R91

KIT

1шт.

spin on conversion kit is 538828R91 (it no. 4 subs to the conversion kit and an element 538836R1)

1шт.
