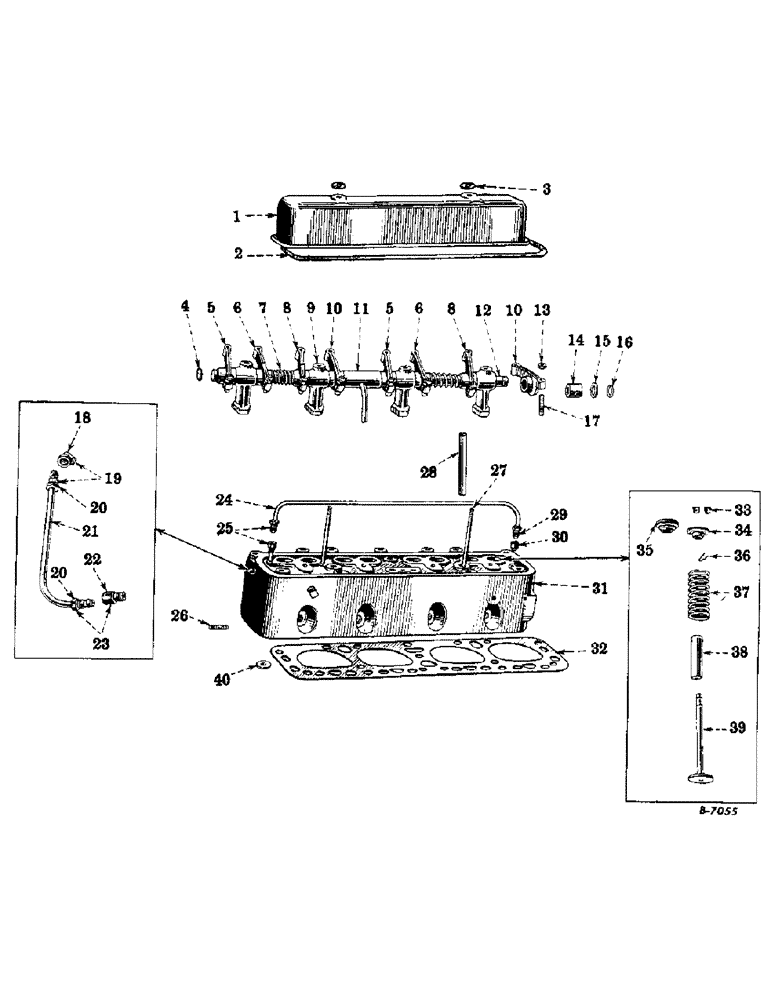

Запчасти Case IH FARMALL H (008) - ENGINE, CYLINDER HEAD, VALVE COVER, VALVES AND VALVE LEVERS (01) - ENGINE

1

363356R91

COVER, valve, with flange and plug

1шт.

2

43976DB

GASKET

valve cover

1шт.

3

62866D

WASHER,5/64" Thk x 13/32" ID

valve cover stud nut (Optional with 354374R1)

2шт.

3

357374R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

WASHER, valve cover stud nut (Optional with 62866D)

2шт.

4

172528

PLUG,Exp, 9/16"

expansion, 9/16" (Valve lever shaft end)

2шт.

5

355455R91

LEVER

exhaust valve, LH (Welded type) with insert - (Will work for 43917DAX)

2шт.

5

355671R92

ROCKER

LEVER, exhaust valve, LH 355455R91, with nut, 133093R1 and screw, 16067DA (Will work for 43917DAYA)

2шт.

6

355456R91

LEVER

intake valve, RH (Welded type) with insert - (Will work for 43916DAX)

2шт.

6

355672R92

LEVER

intake valve, RH 355456R91, with nut, 133093R1 and screw, 16067DA (Will work for 43916DAYA)

2шт.

7

24541D

SPRING

valve lever

2шт.

8

355455R91

LEVER

intake valve, LH (Welded type) with insert - (Will work for 43915DAX)

2шт.

8

355671R92

ROCKER

LEVER, intake valve, LH 355455R91, with nut, 133093R1 and screw, 16067DA (Will work for 43915DAYA)

2шт.

9

45036DB

BRACKET, valve lever

4шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, cap, hex-hd., 3/8 - 16 NC x 3-1/4" (Will work for 16061D and 58544D)

4шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external-tooth, 3/8"

4шт.

10

355456R91

LEVER

exhaust valve, RH (Welded type) with insert (Will work for 43918DAX)

210шт.

10

355672R92

LEVER

exhaust valve, RH, 355456R91, with nut, 133093R1 and screw, 16067DA (Will owrk for 43918DAYA)

2шт.

11

43977DAX

SLEEVE, valve lever shaft oil, with tube

1шт.

12

43914DBX

SHAFT valve lever, with plug, 172528

2шт.

12

64888D

SHAFT, valve lever (Includes two shafts, 43914DBX and sleeve, 43977DAX)

1шт.

13

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

14

24564DA

BUSHING

valve lever (Used with forged type valve lever arms)

8шт.

15

43374D

SPRING WASHER

valve lever shaft spring

2шт.

16

43375D

RING

snap, valve lever shaft

2шт.

17

16067DA

ADJUSTMENT SCREW,3/8" - 24

adjusting, valve lever

8шт.

18

51434D

ELBOW

cylinder head breather pipe (Air cleaner end)

1шт.

19

51434DX

ELBOW

cylinder head to air cleaner breather pipe, with nut, 278953R91 (Air cleaner end)

1шт.

20

278953R91

NUT

cylinder head to air cleaner breather pipe elbow (Air cleaner end)

1шт.

20

278953R91

NUT

cylinder head breather pipe connector (Cylinder head end)

1шт.

21

51436DX

PIPE, breather, cylinder head to air cleaner, with two nuts, 278953R91

1шт.

22

57942D

CONNECTOR, ELEC

CONNECTOR, cylinder head to air cleaner breather pipe (Cylinder head end) (Will work for 38026DM)

1шт.

23

57942DX

CONNECTOR, ELEC

CONNECTOR, cylinder head to air cleaner breather pipe, with nut, 278953R91 (Cylinder head end) (Will work for 38026DMX)

1шт.

24

51206DAX

TUBE, cylinder head breather, with two nuts, 369989R1

1шт.

25

32252DX

CONNECTOR, cylinder head breather tube, 35252D, with nut, 369989R1

2шт.

26

45223DA

STUD

manifold to cylinder head (S/N, Serial Range: 501-106907)

6шт.

26

63459D

STUD

manifold to cylinder head (S/N 106908 up)

6шт.

27

45566D

STUD, valve cover

2шт.

103026

NUT,3/8"-24, G5

2шт.

28

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE, cylinder head stud

1шт.

29

369989R1

NUT

cylinder head breather tube connector

2шт.

30

35252D

HYD CONNECTOR,1/8" NPT x 1/2"-20

CONNECTOR, cylinder head breather tube (Body only)

2шт.

31

65301DA

HEAD, cylinder, with valves, assembly (Gasoline) (S/N 501 to 106907), Composed of

1шт.

45197DD

MANIFOLD GASKET

2шт.

364439R91

HEAD ASSEMBLY

1шт.

43715D

NUT

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

4шт.

31

362533R11

HEAD, cylinder assembly (Gasoline) (S/N 106908 up), Composed of

1шт.

8049DR

GUIDE

8шт.

362533R1

HEAD (NSS)

1шт.

362532R1

INSERT

4шт.

143997

PLUG

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

351972R1

SLEEVE,12.74mm ID x 18.83mm OD x 107.95mm L

SLEEVE

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

114609

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

31

364439R91

HEAD, cylinder, with valves, assembly (Gasoline) (S/N 106908 up), Composed of

1шт.

362533R11

HEAD

1шт.

42026D

KEY

16шт.

358198R91

ROTATOR

ROTOCAP

4шт.

42040D

CUP

SEAT

4шт.

358197R1

SPRING

8шт.

362534R1

VALVE

4шт.

362535R1

VALVE

4шт.

31

65302DA

HEAD, cylinder, with studs and valve guides, assembly (Distillate) (S/N 501 to 106907), Composed of

1шт.

45197DD

MANIFOLD GASKET

2шт.

8776DAX

HEAD ASSEMBLY

1шт.

43715D

NUT

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

4шт.

31

65303DA

HEAD, cylinder, with valves, assembly (Distillate) (S/N 501 to 106907), Composed of

1шт.

45197DD

MANIFOLD GASKET

2шт.

8776DAY

HEAD ASSEMBLY

1шт.

43715D

NUT

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

4шт.

31

8776DAX

HEAD, cylinder, with studs and valve guides, assembly (Distillate) (S/N 106908 up), Composed of

1шт.

6169DR

VALVE GUIDE

GUIDE

8шт.

8776DA

HEAD (NSS)

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

43979D

SLEEVE (NSS)

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER

4шт.

31

8776DAY

HEAD, cylinder with valves, assembly (Distillate) (S/N 106908 up), Composed of

1шт.

8776DAX

HEAD

1шт.

42026D

KEY

16шт.

42098D

RETAINER

8шт.

42040D

CUP

SEAT

8шт.

24544DA

SPRING

8шт.

57696D

VALVE

4шт.

57697D

VALVE

4шт.

31

65288DD

HEAD, cylinder, with studs and valve guides, assembly (Kerosene) (S/N 501 to 106907), Composed of

1шт.

45197DD

MANIFOLD GASKET

2шт.

363257R21

HEAD ASSEMBLY

1шт.

43715D

NUT

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

4шт.

31

65289DD

HEAD, cylinder, with valves, assembly (Kerosene) (S/N 501 to 106907), Composed of

1шт.

45197DD

MANIFOLD GASKET

2шт.

358635R92

HEAD ASSEMBLY

1шт.

43715D

NUT

6шт.

43753D

WASHER,11.51mm ID x 22.23mm OD x 6.35mm Thk

4шт.

31

363257R21

HEAD, cylinder, with studs and valve guides, assembly (Kerosene) (S/N 106908 up), Composed of

1шт.

6169DR

VALVE GUIDE

GUIDE

8шт.

363257R2

HEAD (NSS)

1шт.

357898R1

INSERT

4шт.

143997

PLUG

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW

4шт.

43979D

SLEEVE (NSS)

1шт.

45566D

STUD

2шт.

63459D

STUD

6шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER

4шт.

31

358635R93

HEAD, cylinder, with valves, assembly (Kerosene) (S/N 106908 up), Composed of

1шт.

363257R21

HEAD

1шт.

42026D

KEY

16шт.

42098D

RETAINER

8шт.

42040D

CUP

SEAT

8шт.

358197R1

SPRING

8шт.

43912D

VALVE

4шт.

43913DA

VALVE

4шт.

32

43988DF

GASKET

cylinder

1шт.

33

42026D

KEY

valve spring seat

16шт.

34

42040D

CUP

SEAT, valve spring, upper (Will work for 47278D)

8шт.

35

358198R91

ROTATOR

ROTOCAP, exhaust valve (Gasoline)

4шт.

36

42098D

RETAINER

valve stem (Distillate or kerosene)

8шт.

37

24544DA

SPRING

valve (4 used with rotocap)

8шт.

37

363140R1

SPRING

valve (Used with rotocap)

4шт.

38

6169DR

VALVE GUIDE

GUIDE, valve (Distillate or kerosene)

8шт.

38

8049DR

GUIDE

valve (Gasoline)

8шт.

39

50706DA

VALVE

intake (Gasoline)

4шт.

39

50707DA

VALVE

exhaust (Gasoline)

4шт.

39

362534R1

VALVE

intake (Gasoline) (Part of cylinder head, 364439R91)

4шт.

39

362535R1

VALVE

exhaust (Gasoline) (Part of cylinder head, 364439R91)

4шт.

39

57696D

VALVE

intake (Distillate)

4шт.

39

57697D

VALVE

exhaust (Distillate)

4шт.

39

43912D

VALVE

intake (Kerosene)

4шт.

39

43913DA

VALVE

exhaust (Kerosene)

4шт.

40

353830R1

INSERT, exhaust valve seat (Gasoline)

4шт.

40

362532R1

INSERT, exhaust valve seat (Gasoline) (Part of cylinder head, 362533R11)

4шт.

40

357898R1

INSERT, exhaust valve seat (Kerosene) (Part of cylinder head, 363257R21)

4шт.

354475R94

GASKET KIT

SET, valve grinding

1шт.

55620DD

GASKET

SET, engine

1шт.

352815R92

PACKAGE, service valve seat insert (Consists of four inserts, 353830R1)

1шт.
