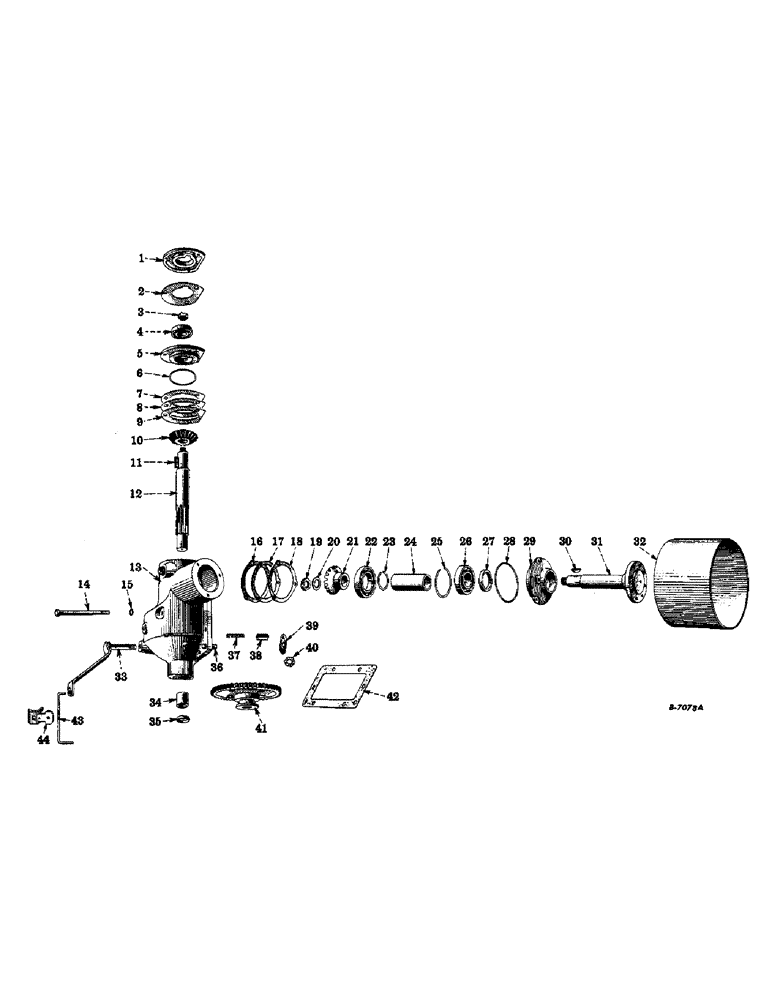

Запчасти Case IH FARMALL H (223) - ATTACHMENTS, BELT PULLEY, SPECIAL Attachments

358222R92

BELT PULLEY ATTACHMENT (Will work for 51489DC)

1шт.

1

358231R1

BELT PULLEY DRIVE SHAFT BEARING CAGE COVER

1шт.

179842

SPACER

CAP SCREW, 3/8 x 1-3/8" N.C. hex head

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

2

358232R1

BELT PULLEY DRIVE SHAFT BEARING CAGE COVER GASKET

1шт.

3

357187R1

PULLEY DRIVE BEVEL PINION RETAINER NUT

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

4

ST204A

BALL BEARING,35mm ID x 71.99mm OD x 17mm W

BELT PULLEY DRIVE SHAFT BALL BEARING

1шт.

5

358226R1

BELT PULLEY DRIVE SHAFT BEARING CAGE

1шт.

6

358227R1

RING

PULLEY DRIVE SHAFT BEARING CAGE RING SEAL

1шт.

7

358230R1

BELT PULLEY DRIVE SHAFT BEARING CAGE SHIM, light

1шт.

8

358229R1

BELT PULLEY DRIVE SHAFT BEARING CAGE SHIM, medium

1шт.

9

358228R1

BELT PULLEY DRIVE SHAFT BEARING CAGE SHIM, heavy

1шт.

10

358225R1

BELT PULLEY DRIVE BEVEL PINION, 15 teeth

1шт.

11

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

BELT PULLEY DRIVE BEVEL PINION KEY (Woodruff no. 126, 3/16 x 2-1/8")

1шт.

12

358224R1

BELT PULLEY DRIVE SHAFT

1шт.

13

358223R21

BELT PULLEY DRIVE HOUSING, with bushing, 49143D and plug, 45499D

1шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4" N.C. hex head

2шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

CAP SCREW, 7/16 x 2-1/2" N.C. hex head

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

217-442

PLUG,3/4" - 14

PIPE PLUG, 3/4"

1шт.

496-21047

WASHER

15/32" I.D. x 59/64" O.D. x no. 16 ga.

2шт.

14

12818R1

CAP SCREW, 7/16 x 6-1/4" N.C. hex head

2шт.

15

52999D

WASHER

BELT PULLEY DRIVE HOUSING BOLT GASKET

2шт.

16

358240R1

BELT PULLEY SHAFT BEARING CAGE SHIM, heavy

1шт.

17

358241R1

BELT PULLEY SHAFT BEARING CAGE SHIM, medium

1шт.

18

358242R1

BELT PULLEY SHAFT BEARING CAGE SHIM, light

1шт.

19

70120D

SLOTTED NUT,7/8"-14

PULLEY SHAFT BEVEL GEAR RETAINER NUT

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

20

358235R1

BELT PULLEY SHAFT BEVEL GEAR RETAINING WASHER

1шт.

21

358234R1

BELT PULLEY SHAFT BEVEL GEAR, 17 teeth

1шт.

22

ST278

BEARING, BALL,49.99mm ID x 90mm OD x 20mm W

BALL BEARING, inner

1шт.

23

358236R1

RING

BELT PULLEY SHAFT BEARING SNAP RING, inner

1шт.

24

358237R1

BELT PULLEY SHAFT BEARING SPACER

1шт.

25

49253D

BELT PULLEY SHAFT BEARING SNAP RING, outer

1шт.

26

ST206

BEARING, BALL,40mm ID x 90mm OD x 23mm W

BALL BEARING, outer

1шт.

27

49177D

SEAL

BELT PULLEY SHAFT OIL SEAL (Optional with 358783R91 and 358822R91)

1шт.

27

358783R91

OIL SEAL

BELT PULLEY SHAFT OIL SEAL (Optional with 49177D and 358822R91)

1шт.

27

358822R91

OIL SEAL

BELT PULLEY SHAFT OIL SEAL (Optional with 49177D and 358783R91)

1шт.

28

358239R1

RING

BELT PULLEY SHAFT BEARING CAGE RING SEAL

1шт.

29

358238R11

BELT PULLEY SHAFT BEARING CAGE WITH OIL SEAL, 49177D and ring, 358239R1

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

CAP SCREW, 3/8 x 1-1/8" N.C. hex head

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

30

66984D

WOODRUFF KEY,#126, 3/16" x 2 1/8", HT

BELT PULLEY SHAFT KEY (Woodruff no. 126, 3/16 x 2-1/8")

1шт.

31

358233R1

BELT PULLEY SHAFT

1шт.

32

358726R91

BELT PULLEY (6-1/2" diameter x 8-1/2" face) (See note)

1шт.

32

358396R91

BELT PULLEY (9-3/4" diameter x 7-1/2" face) (See note)

1шт.

32

358398R91

BELT PULLEY (9-3/4" diameter x 7-1/2" face) (See note)

1шт.

32

356940R1

BELT PULLEY (9-3/4" diameter x 7-1/2" face) (See note)

1шт.

32

358397R91

BELT PULLEY (11" diameter x 7-1/2" face) (See note)

1шт.

32

356942R1

BELT PULLEY (11" diameter x 7-1/2" face) (See note)

1шт.

32

356941R1

BELT PULLEY (12" diameter x 8-1/2" face) (See note)

1шт.

32

358597R91

BELT PULLEY (12" diameter x 8-1/2" face) (See note)

1шт.

179886

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

CAP SCREW, 1/2 x 1-5/8" N.C. hex head

4шт.

114774

HEX NUT, 1/2" N.C.

4шт.

33

60841DX

BELT PULLEY CONTROL LEVER SHAFT AND SHAFT PLATE

1шт.

103397

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

1шт.

34

49143D

BUSHING

BELT PULLEY DRIVE SHAFT BUSHING

1шт.

35

45499D

BELT PULLEY DRIVE SHAFT HOLE CUP PLUG

1шт.

36

50055D

BELT PULLEY DRIVE HOUSING DOWEL PIN

2шт.

37

23921D

BELT PULLEY SHIFTER POPPET SPRING

1шт.

38

45517D

BELT PULLEY SHIFTER POPPET

1шт.

39

51648D

BELT PULLEY SHIFTER ARM

1шт.

40

70119D

NUT

BELT PULLEY CONTROL LEVER SHAFT NUT

1шт.

41

51564DB

BELT PULLEY DRIVE SHIFTER GEAR, 50 teeth (Optional with 357458R1)

1шт.

41

357458R1

BELT PULLEY DRIVE SHIFTER GEAR, 50 teeth (Optional with 51564DB)

1шт.

42

49619DB

GASKET

BELT PULLEY DRIVE HOUSING GASKET(replaces 49619DA)

1шт.

Ref #42 (49619DA): The actual service P/N is 49619DB. SMA 2/9/98

1шт.

43

358244R1

BELT PULLEY CONTROL ROD

1шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

1шт.

44

359646R1

PULLEY CONTROL BRACKET (Not used on "H" and "HV")

1шт.

179868

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

CAP SCREW, 7/16-14N.C. x 2-1/2" hex head

1шт.

114773

HEX NUT, 7/16-14 N.C.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

4шт.
