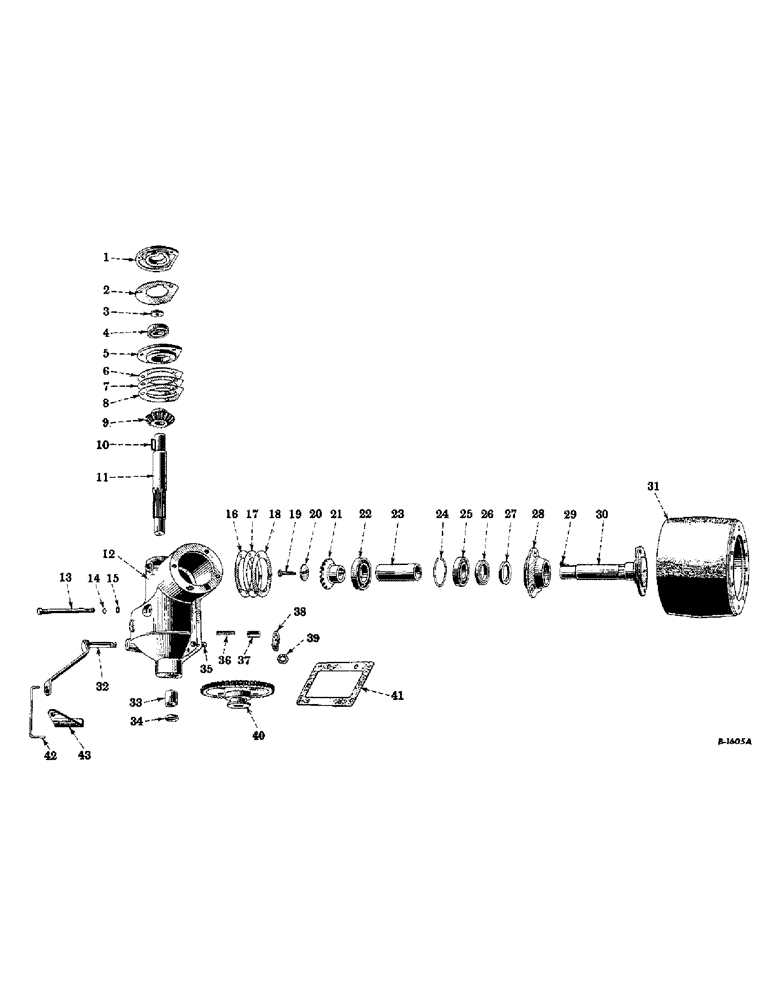

Запчасти Case IH FARMALL H (220) - ATTACHMENTS, BELT PULLEY, SPECIAL Attachments
№
Артикул
Название
Примечание
Количество
51489DC
BELT PULLEY ATTACHMENT (Machine attachment) (Order 358222R92)
1шт.
1
6794D
BELT PULLEY DRIVE SHAFT BEARING CAGE COVER
1шт.
413-622
BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5
CAP SCREW, 3/8 x 1-3/8" N.C. hex head
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
2
49144D
BELT PULLEY DRIVE SHAFT BEARING CAGE COVER GASKET (S/N, Serial Range: 501-6656)
1шт.
2
54538D
BELT PULLEY DRIVE SHAFT BEARING CAGE COVER GASKET (S/N 6657 up)
1шт.
3
49139D
WASHER,10.32mm ID x 38.1mm OD x 5mm Thk
BELT PULLEY DRIVE SHAFT BEARING RETAINER WASHER
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
1шт.
4
ST212
BALL BEARING,30mm ID x 62mm OD x 16mm W
BELT PULLEY DRIVE SHAFT BALL BEARING
1шт.
5
6793DB
BELT PULLEY DRIVE SHAFT BEARING CAGE
1шт.
5
54613D
BELT PULLEY DRIVE SHAFT BEARING CAGE, 6793DB and gasket, 54538D (Will work for 6793D) (S/N, Serial Range: 501-6656)
1шт.
6
49142D
BELT PULLEY DRIVE SHAFT BEARING CAGE SHIM, light
1шт.
7
49141D
BELT PULLEY DRIVE SHAFT BEARING CAGE SHIM, medium
1шт.
8
49140D
BELT PULLEY DRIVE SHAFT BEARING CAGE SHIM, heavy
1шт.
9
47692D
BELT PULLEY DRIVE BEVEL PINION (15 teeth)
1шт.
10
145542
BELT PULLEY DRIVE BEVEL PINION KEY (Woodruff no. 126, 3/16 x 2-1/8") (Same as 13552D)
1шт.
11
51556DA
BELT PULLEY DRIVE SHAFT
1шт.
12
6865DEX
BELT PULLEY DRIVE HOUSING WITH BUSHING, 49143D and pipe plug
1шт.
179860
BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5
CAP SCREW, 7/16 x 1-1/4" N.C. hex head
2шт.
179868
BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5
CAP SCREW, 7/16 x 2-1/2" N.C. hex head
2шт.
13
12818R1
CAP SCREW, 7/16 x 6-1/4" N.C. hex head
2шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
496-21047
WASHER
STEEL WASHER, 15/32" I.D. x 59/64" O.D. x no. 16 ga.
2шт.
217-442
PLUG,3/4" - 14
PIPE PLUG, 3/4"
1шт.
14
18942D
WASHER
BELT PULLEY DRIVE HOUSING BOLT WASHER
2шт.
15
52999D
WASHER
BELT PULLEY DRIVE HOUSING BOLT GASKET (Optional with 365112R1)
2шт.
15
365112R1
WASHER
BELT PULLEY DRIVE HOUSING BOLT GASKET (Optional with 52999D)
2шт.
16
49134D
BELT PULLEY SHAFT BEARING CAGE SHIM, heavy
1шт.
17
49135D
BELT PULLEY SHAFT BEARING CAGE SHIM, medium
1шт.
18
49136D
BELT PULLEY SHAFT BEARING CAGE SHIM, light
1шт.
19
45558DA
BELT PULLEY SHAFT BEVEL GEAR RETAINING WASHER BOLT LOCK (Order 350509R91) (S/N, Serial Range: 501-201948)
1шт.
19
21819D
BELT PULLEY SHAFT BEVEL GEAR RETAINING CAP SCREW (S/N 201949 up)
2шт.
20
49178DA
BELT PULLEY SHAFT BEVEL GEAR RETAINING WASHER
1шт.
21
49138DX
BELT PULLEY SHAFT BEVEL GEAR (17 teeth) with assembly tag
1шт.
23
53173DB
BELT PULLEY SHAFT BEARING SPACER
1шт.
24
49137D
RING, SNAP
BELT PULLEY SHAFT BEARING RETAINER (Snap ring)
1шт.
25
ST214
BALL BEARING,40mm ID x 80mm OD x 18mm W
BELT PULLEY SHAFT BALL BEARING, outer
1шт.
26
49177D
SEAL
BELT PULLEY SHAFT OIL SEAL (Optional with 358783R91 and 358822R91)
1шт.
26
358783R91
OIL SEAL
BELT PULLEY SHAFT OIL SEAL (Optional with 49177D and 358822R91)
1шт.
26
358822R91
OIL SEAL
BELT PULLEY SHAFT OIL SEAL (Optional with 49177D and 358783R91)
1шт.
27
49133D
WASHER,46.04mm ID x 63.5mm OD x 7.94mm Thk
BELT PULLEY SHAFT FELT WASHER
1шт.
28
6792DX
BELT PULLEY SHAFT BEARING CAGE WITH OIL SEAL, 49177D
1шт.
179840
BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5
CAP SCREW, 3/8 x 1-1/8" N.C. hex head
3шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
3шт.
29
66984D
WOODRUFF KEY,#126, 3/16" x 2 1/8", HT
BELT PULLEY SHAFT KEY (Woodruff no. 126, 3/16 x 2-1/8") (Same as 13552D)
1шт.
30
49132DB
BELT PULLEY SHAFT
1шт.
31
358726R91
BELT PULLEY (6-1/2" diameter x 8-1/2" face) (See note)
1шт.
31
358398R1
BELT PULLEY (9-3/4" diameter x 7-1/2" face) (See note)
1шт.
31
358396R91
BELT PULLEY (9-3/4" diameter x 7-1/2" face) (See note)
1шт.
31
356940R1
BELT PULLEY (9-3/4" diameter x 7-1/2" face) (See note)
1шт.
31
358397R91
BELT PULLEY (11" diameter x 7-1/2" face) (See note)
1шт.
31
356942R1
BELT PULLEY (11" diameter x 7-1/2" face) (See note)
1шт.
31
356941R1
BELT PULLEY (12" diameter x 8-1/2" face) (See note)
1шт.
31
358597R91
BELT PULLEY (12" diameter x 8-1/2" face) (See note)
1шт.
179886
BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5
CAP SCREW, 1/2 x 1-5/8" N.C. hex head
4шт.
114774
HEX NUT, 1/2" N.C.
4шт.
32
49147DAX
BELT PULLEY CONTROL LEVER, shaft and shaft plate (S/N, Serial Range: 501-31792)
1шт.
32
57173DX
BELT PULLEY CONTROL LEVER, shaft and shaft plate (S/N, Serial Range: 31793-70409)
1шт.
32
60841DX
BELT PULLEY CONTROL LEVER, shaft and shaft plate (S/N 70410 up)
1шт.
145013
FORK
SLOTTED HEX JAM NUT, 5/8" N.F. (Order 70119D)
1шт.
103397
COTTER PIN,5/32" x 1 1/4"
Pin, Split (Cotter), 5/32" x 1 1/4"
1шт.
33
49143D
BUSHING
BELT PULLEY DRIVE SHAFT BUSHING
1шт.
34
45499D
BELT PULLEY DRIVE SHAFT HOLE CUP PLUG
1шт.
35
50055D
BELT PULLEY DRIVE HOUSING DOWEL PIN
2шт.
36
23921D
BELT PULLEY SHIFTER POPPET SPRING
1шт.
37
45517D
BELT PULLEY SHIFTER POPPET
1шт.
38
51648DA
BELT PULLEY SHIFTER ARM
1шт.
39
70119D
NUT
BELT PULLEY CONTROL LEVER SHAFT NUT (Will work for 145013)
1шт.
39
145013
FORK
FOLLOWS REFERENCE NO. 32
1шт.
40
51564DB
BELT PULLEY DRIVE SHIFTER GEAR (50 teeth)
1шт.
41
49619DA
BELT PULLEY DRIVE HOUSING GASKET
1шт.
42
57175D
BELT PULLEY CONTROL ROD (S/N, Serial Range: 31793-70409)
1шт.
42
60842DA
BELT PULLEY CONTROL ROD (S/N 70410 up)
1шт.
107762
WASHER,3/32" x 5/8"
PIN, SPLIT, (COTTER), 3/32" x 5/8"
1шт.
43
57174D
BELT PULLEY CONTROL ROD BRACKET (S/N, Serial Range: 31793-70409)
1шт.
179814
SPACER
2шт.
9635082
NUT,5/16" - 18, Gr 5
2шт.
350509R91
BELT PULLEY SHAFT BEVEL GEAR RETAINING WASHER CAPSCREW, 21819D and locking wire, 350580R2 (Will work for 45558DA) (S/N, Serial Range: 501-201948)
1шт.
350580R2
BELT PULLEY SHAFT BEVEL GEAR RETAINING WASHER CAPSCREW LOCKING WIRE, no. 14 ga. x 4-1/2" long (S/N 201949 up)
1шт.
193-12
LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN
WASHER, LOCK, Ext Tooth, 1/2"
4шт.
