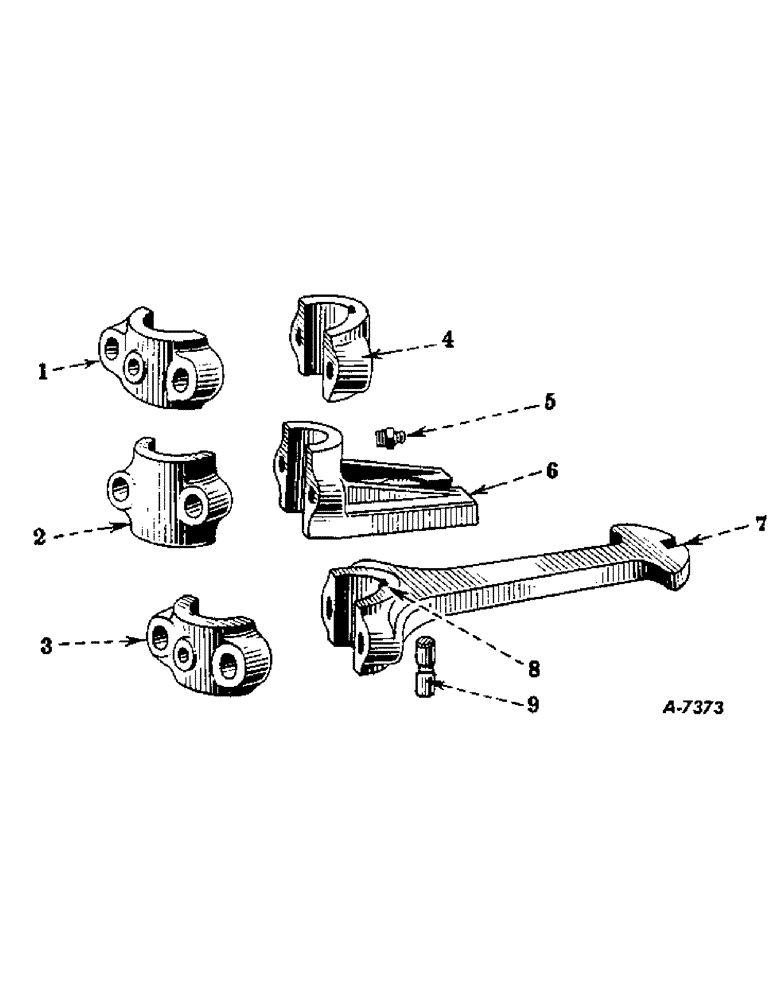

Запчасти Case IH FARMALL H (218) - ATTACHMENTS, CULTIVATOR SHIFTER LEVER, SPECIAL, FARMALL "H" ONLY Attachments

48873DA

CULTIVATOR SHIFTER LEVER ATTACHMENT (Complete attachment discontinued) (S/N, Serial Range: 501-167993)

1шт.

69064D

CULTIVATOR SHIFTER LEVER ATTACHMENT (Complete attachment discontinued) (S/N 167994 up)

1шт.

1

8851D

CULTIVATOR SHIFTER AUXILIARY LEVER COLLAR CAP (S/N, Serial Range: 58494-167993)

1шт.

1

9782D

CULTIVATOR SHIFTER AUXILIARY LEVER COLLAR CAP (167994 up)

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

6258D

CULTIVATOR SHIFTER AUXILIARY LEVER CAP

1шт.

2

9780D

CULTIVATOR SHIFTER AUXILIARY LEVER CAP (S/N 167994 up)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCRE, 3/8 x 1-3/4" N.C. hex head

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

3

6256D

CULTIVATOR SHIFTER LEVER CAP (S/N, Serial Range: 501-167993)

1шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

CAP SCREW, 1/2 x 2" N.C. hex head

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

3

9778D

CULTIVATOR SHIFTER LEVER CAP (S/N 167994 up)

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAP SCREW, 3/8 x 1-3/4" N.C. hex head

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

8852DX

CULTIVATOR SHIFTER AUXILIARY LEVER COLLAR WITH CAP 8851D (S/N, Serial Range: 58494-167993)

1шт.

4

9781DX

CULTIVATOR SHIFTER AUXILIARY LEVER COLLAR, complete (S/N 167994 up)

1шт.

5

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

CULTIVATOR SHIFTER AUXILIARY LEVER LUBRICATOR (1/8" straight) (Optional with 109461) (Same as 14186DA)

1шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

CULTIVATOR SHIFTER AUXILIARY LEVER LUBRICATOR (1/8" straight) (Optional with 119512) (Same as Q3615)

1шт.

6

6257DX

CULTIVATOR SHIFTER AUXILIARY LEVER WITH CAP, complete

1шт.

6

9779DX

CULTIVATOR SHIFTER AUXILIARY LEVER, complete (S/N 167994 up)

1шт.

7

6255DBX

CULTIVATOR SHIFTER LEVER WITH CAP, complete (S/N, Serial Range: 501-167993)

1шт.

7

9777DX

CULTIVATOR SHIFTER LEVER WITH CAP, complete (S/N 167994 up)

1шт.

13964R1

RIVET, 1/8 x 7/8" countersunk head

1шт.

8

114745

WOODRUFF KEY,#21, 1/4" x 1 1/4", HT

Cultivator shifter lever key (Same as 13089D) (S/N 501 to 167993) #21, 1/4" x 1 1/4", HT

1шт.

9

69222DX

CULTIVATOR SHIFTER LEVER KEY WITH RIVET, 104138 (S/N 167994 up)

1шт.

8852DY

CULTIVATOR SHIFTER AUXILIARY LEVER COLLAR AND CAP, field change package (S/N, Serial Range: 501-58493)

1шт.

104138

RIVET, 1/8 x 5/8" - 90 degree countersunk head

1шт.
