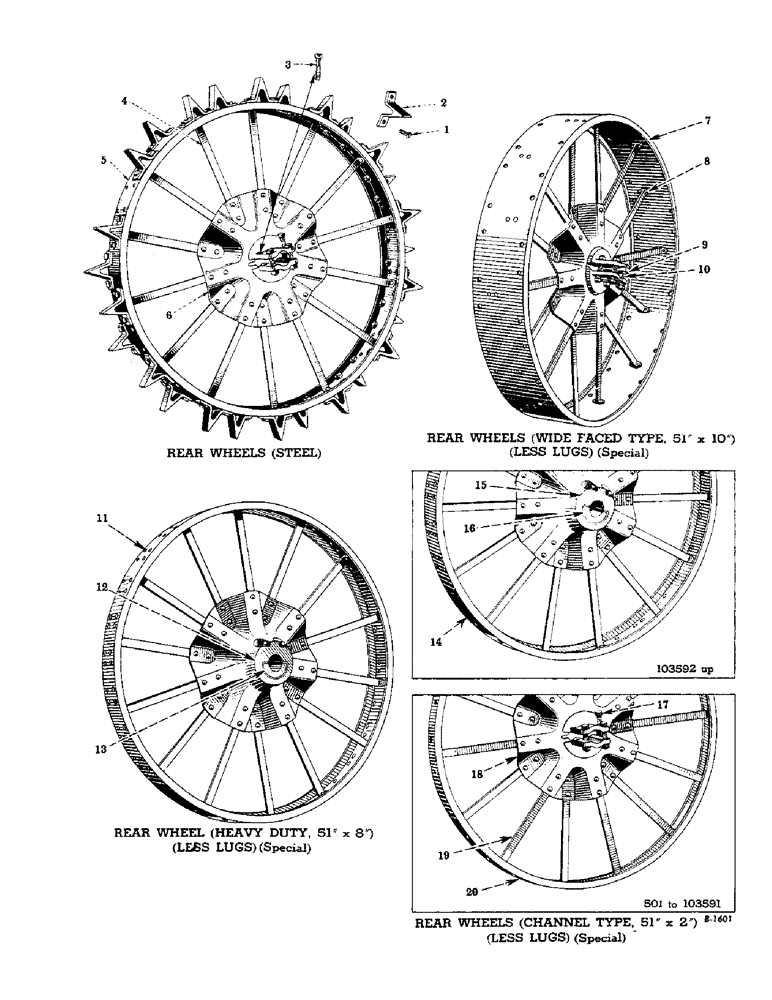

Запчасти Case IH FARMALL H (164) - CHASSIS, REAR WHEELS, STEEL, FARMALL "H" ONLY (12) - CHASSIS

354135R91

REAR WHEEL ATTACHMENT

1шт.

1

63136D

SPADE LUG BOLT (Will work for 13274R1)

112шт.

114820

HEX NUT, 5/8" N.C.

112шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

112шт.

2

43777D

REAR WHEEL SPADE LUG, 4 x 2-1/4"

56шт.

3

45033D

REAR WHEEL HUB BOLT

8шт.

352536R1

NUT

REAR WHEEL HUB BOLT NUT

8шт.

4

48693D

REAR WHEEL SPOKE (For wheel, 58814D only)

28шт.

110438

RIVET, 7/16 x 1-5/8" round head

56шт.

NLS

NO LONGER SERVICED

3/8 x 1" round head

56шт.

5

48690DA

REAR WHEEL, complete (Less lugs) (51 x 6")

2шт.

6

48692DX

REAR WHEEL HUB AND FLANGE, complete

2шт.

7

58814DA

REAR WHEEL, complete (Less lugs), (wide faced type 51" x 10") (special) (farmall "H" only)

2шт.

8

48693D

REAR WHEEL SPOKE (For wheel, 58814D only), (less lugs) (wide faced type 51" x 10") (special) (farmall "H" only)

28шт.

110438

RIVET, 7/16 x 1-5/8" round head, rear wheels (less lugs) (wide faced type 51" x 10") (special) (farmall "H" only)

56шт.

104113

RIVET,But Hd, 3/8" x 1"

3/8 x 1" round head, rear wheels (less lugs) (wide faced type 51" x 10") (special) (farmall "H" only)

56шт.

9

48692DX

HUB AND FLANGE, rear wheels (less lugs) (wide faced type 51" x 10") (special) (farmall "H" only)

2шт.

10

45033D

HUB BOLT, rear wheels (less lugs) (wide faced type 51" x 10") (special) (farmall "H" only)

8шт.

352536R91

BOLT NUT, rear wheels (less lugs) (heavy duty, 51" x 8") (special) (farmall "H" only)

8шт.

354168R91

(Heavy duty, 51" x 8") (Consists of one screw, 49637D and two wheels, 66073DB), rear wheels (less lugs) (wide faced type 51" x 10") (special) (farmall "H" only)

1шт.

One double end socket wrench no. 66335D must be furnished if tractor was not previously equipped with heavy duty or channel type rear wheels.

1шт.

11

66073DB

rear wheels (less lugs) (heavy duty, 51" x 8") (special) (farmall "H" only)

2шт.

One double end socket wrench no. 66335D must be furnished if tractor was not previously equipped with heavy duty or channel type rear wheels.

1шт.

12

9555DBX

HUB, complete, rear wheels (less lugs) (heavy duty, 51" x 8") (special) (farmall "H" only)

2шт.

13

9554DB

HUB CLAMP, rear wheels (less lugs) (heavy duty, 51" x 8") (special) (farmall "H" only)

2шт.

179982

SHAFT

CAP SCREW, 7/8 x 4-1/4" N.C. hex head, rear wheels (less lugs) (heavy duty, 51" x 8") (special) (farmall "H" only)

8шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, , Rear wheels (Less lugs) (Heavy duty, 51" x 8") (Special) (Farmall "H" only) 7/8"

8шт.

PO12988

WASHER, 29/32" I.D. x 1-1/2" O.D. x no. 11 gauge, rear wheels (less lugs) (heavy duty, 51" x 8") (special) (farmall "H" only)

8шт.

354169R91

CHANNEL RIM REAR WHEEL ATTACHMENT (51" x 2") (Consists of two rear wheels, 66296DB, and one screw, 49637DB), (less lugs) (type 51" x 2") (special) (farmall "H" only)

1шт.

One double end socket wrench no. 66335D must be furnished if tractor was not previously equipped with heavy duty or channel type rear wheels.

1шт.

14

66296DB

(S/N 103592 up), rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

2шт.

One double end socket wrench no. 66335D must be furnished if tractor was not previously equipped with heavy duty or channel type rear wheels.

1шт.

15

9555DBX

HUB, complete (S/N 103592 up), rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

2шт.

16

9554DB

HUB CLAMP (S/N 103592 up), rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

2шт.

179982

SHAFT

CAP SCREW, 7/8 x 4-1/4" N.C. hex head, rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

8шт.

103327

LOCK WASHER,7/8"

WASHER, LOCK, , Rear wheels (Less lugs) (Channel type 51" x 2") (Special) (Farmall "H" only) 7/8"

8шт.

PO12988

WASHER, 29/32" I.D. x 1-1/2" O.D. x no. 11 ga., rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

8шт.

17

45033D

HUB BOLT (S/N 501 to 103591), rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

8шт.

103031

TROUGH

HEX NUT, 3/4" N.F. (Case hardened), rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

8шт.

18

48692DX

HUB AND FLANGE (S/N 501 to 103591), rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

2шт.

19

50745D

SPOKE (Used with wheel 50774DX) (S/N 501 to 103591), rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

28шт.

14349R1

RIVET, 7/16 x 1-1/4" round head, rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

56шт.

20

50744DX

with four bolts, 45033D and four nuts (Less lugs) (S/N 501 to 103591), rear wheels (less lugs) (channel type 51" x 2") (special) (farmall "H" only)

2шт.
