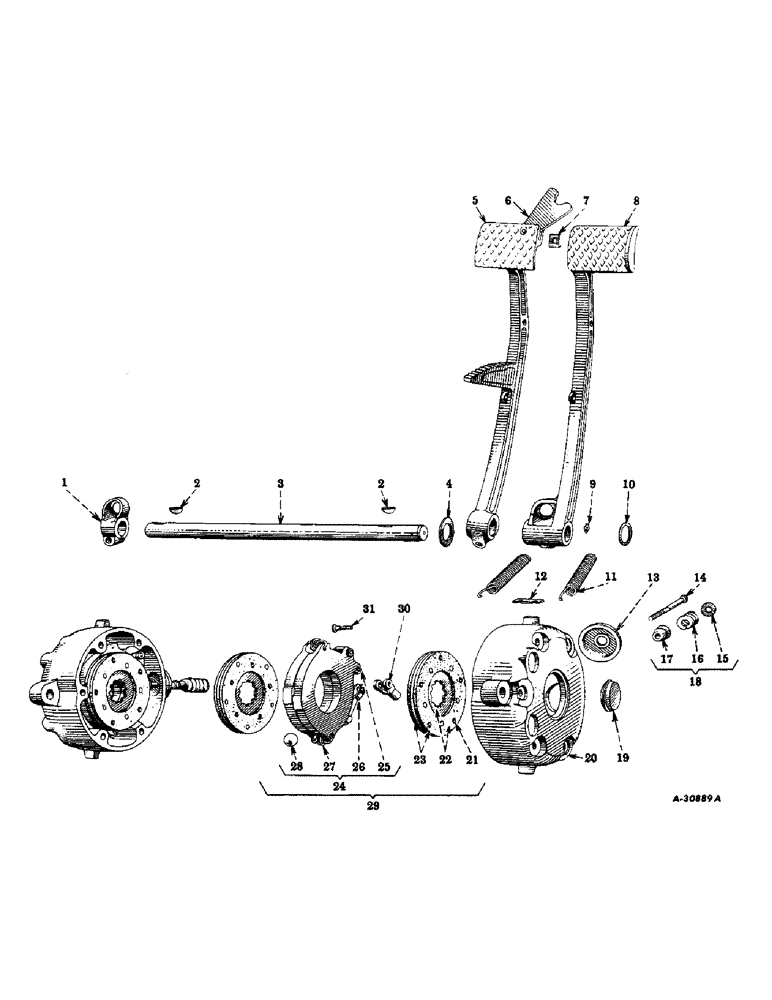

Запчасти Case IH FARMALL H (154) - CHASSIS, DISC BRAKES AND CONNECTIONS, SERIAL NO. 391358 AND UP (12) - CHASSIS

1

358053R1

BRAKE SHAFT LEVER

1шт.

114773

HEX NUT, 7/16"

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

CAP SCREW, 7/16 x 2-1/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

2

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

no. 13, 3/16 x 1"

2шт.

3

358051R1

BRAKE PEDAL SHAFT

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

1шт.

4

48983D

THRUST WASHER

BRAKE PEDAL SHAFT THRUST WASHER

2шт.

5

6950DBX

BRAKE PEDAL L.H. WITH LOCK PLATE, 43751DB springs, 51293D and rivet, 104087

1шт.

114773

HEX NUT, 7/16"

1шт.

179867

BOLT,Hex, 7/16" - 14 x 2 1/4", Gr 5

CAP SCREW, 7/16" x 2-1/4" N.C. hex head

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

6

43751DB

LATCH, PEDALS

BRAKE PEDAL LOCK PLATE

1шт.

104087

RIVET,But Hd, 1/4" x 1 1/4"

1/4 x 1-1/4" round head

1шт.

7

51293D

SPRING

BRAKE PEDAL LOCK PLATE TENSION SPRING

1шт.

8

358052R21

BRAKE PEDAL WITH FITTING, 66854D (R.H.)

1шт.

9

66854D

LUBRICATION FITTING, drive type, 3/16"

1шт.

10

40435D

BRAKE PEDAL SHAFT WASHER

1шт.

11

357164R1

SPRING

BRAKE PEDAL RETURN SPRING

2шт.

12

357045R1

ANCHOR

BRAKE PEDAL RETURN SPRING ANCHOR

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

355976R1

BOOT

ENCLOSURE BOOT

2шт.

14

358050R1

BOLT,Hex, 3/8" - 24 x 4 1/4"

BRAKE OPERATING ROD

2шт.

114494

NUT,Jam, 3/8"-24, G5

6шт.

15

575807R1

WASHER

PLAIN STEEL WASHER, 3/8"

2шт.

16

355978R1

SPRING

BRAKE OPERATING ROD SPRING

2шт.

17

358049R1

ROD

BRAKE OPERATING ROD BALL

2шт.

18

358048R91

KIT

BRAKE OPERATING ROD, complete

2шт.

19

358047R1

CAP

BRAKE HOUSING CUP PLUG

2шт.

20

358046R1

BRAKE HOUSING WITH PLUG, 358047R1

2шт.

187151

CAP SCREW, 7/16 x 3-3/8" N.C. hex head

8шт.

12406R1

CAP SCREW, 7/16 x 2-7/8" N.C. hex head

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

21

354629R1

RIVET

TUBULAR STEEL RIVET, 3/16 x 1/2"

48шт.

22

358195R91

BRAKE DISC

MIDDLE DISC, with linings

4шт.

23

356528R91

LINING

BRAKE LINING SERVICE PACKAGE (Consists of four linings with twenty four rivets, 354629R1)

2шт.

24

356854R91

ACTUATING DISC, complete

2шт.

25

354624R1

SUPPORT

ACTUATING LINK (Plain)

2шт.

26

354623R1

LINK

ACTUATING LINK (Yoke)

2шт.

27

354627R1

SPRING

EXTENSION SPRING

4шт.

28

16028R1

BALL

(7/8" dia.)

6шт.

29

358044R91

DOUBLE DISC, brake with two disc, assembly, 358195R91 and disc, assembly, 3586854R91

2шт.

30

355975R1

CLEVIS COUPLING

BRAKE OPERATING ROD YOKE

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

ROD END PIN, 3/8 x 1-3/32"

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

31

354625R1

STUD

ACTUATING DISC STUD

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.
