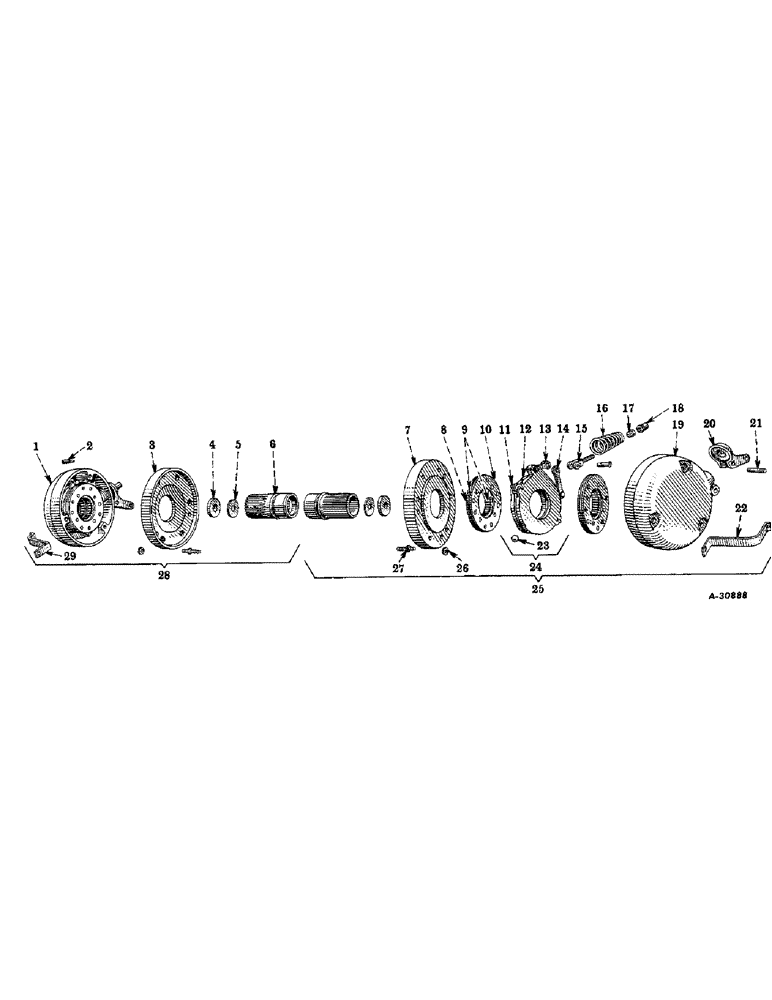

Запчасти Case IH FARMALL H (152) - CHASSIS, DISC BRAKES AND CONNECTIONS, SPECIAL, SERIAL NO. 501 TO 391357 (12) - CHASSIS

358255R91

DOUBLE DISC TYPE MECHANICAL BRAKE ATTACHMENT (S/N, Serial Range: 501-391357)

1шт.

358552R91

DOUBL DISC, brake package (Consists of one double disc brake, assembly (L.H.), 358257R91, and one double disc brake, assembly (R.H.) 358258R91)

1шт.

1

358694R1

BRAKE HOUSING, L.H.

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2" N.C. hex head

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

2

358724R1

SPRING ANCHOR

2шт.

25-114

NUT,1/4"-28, G5

HEX NUT, 1/4" N.F.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

358696R1

ADAPTER PLATE, L.H.

1шт.

4

358722R1

SEALING WASHER

2шт.

5

354617R1

WASHER

HUB WASHER

2шт.

6

358698R1

SPLINED HUB

2шт.

7

358697R1

ADAPTER PLATE, R.H.

1шт.

8

356073R1

RIVET

TUBULAR STEEL, 3/16 x 1/2"

48шт.

9

359236R91

DISC

MIDDLE DISC, with two linings and twelve rivets, 356073R1

4шт.

10

359325R91

BRAKE LINING SERVICE PACKAGE (Consists of four linings with twenty-four rivets, 356073R1)

1шт.

11

354627R1

SPRING

EXTENSION SPRING

4шт.

12

354625R1

STUD

ACTUATING DISC STUD

4шт.

114493

JAM NUT,Jam, 5/16"-24, G5

4шт.

13

354623R1

LINK

ACTUATING LINK (Yoke)

2шт.

14

354624R1

SUPPORT

ACTUATING LINK (Plain)

2шт.

15

358721R1

ROD

YOKE END (Plain)

2шт.

103496

CLEVIS PIN,3/8" x 1.060"

YOKE PIN

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

3шт.

16

358718R1

SPRING

RETURN SPRING

2шт.

17

358720R1

LOCK NUT, 3/8" N.F.

2шт.

18

358719R1

NUT

BALL SEAT NUT, 3/8" N.F.

2шт.

19

358695R1

BRAKE HOUSING, R.H.

1шт.

179895

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

CAP SCREW, 1/2 x 3-1/2" N.C. hex head

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

20

358725R1

BRAKE LEVER

2шт.

21

354620R1

BRAKE LEVER PIN

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

4шт.

22

358717R1

SPRING BRACKET, R.H.

1шт.

23

16028R1

BALL

(7/8" dia.)

6шт.

24

356854R91

ACTUATING DISC ASSEMBLY

2шт.

25

358258R91

DISC BRAKE ASSEMBLY, complete (R.H.)

1шт.

26

354631R1

HEX JAM NUT, 7/16" N.F.

12шт.

27

358723R1

BRAKE ADAPTER SCREW

12шт.

110405

LOCKWASHER, 7/16"

24шт.

28

358257R91

DISC BRAKE ASSEMBLY, complete (L.H.)

1шт.

29

358699R1

SPRING BRACKET, L.H.

1шт.
