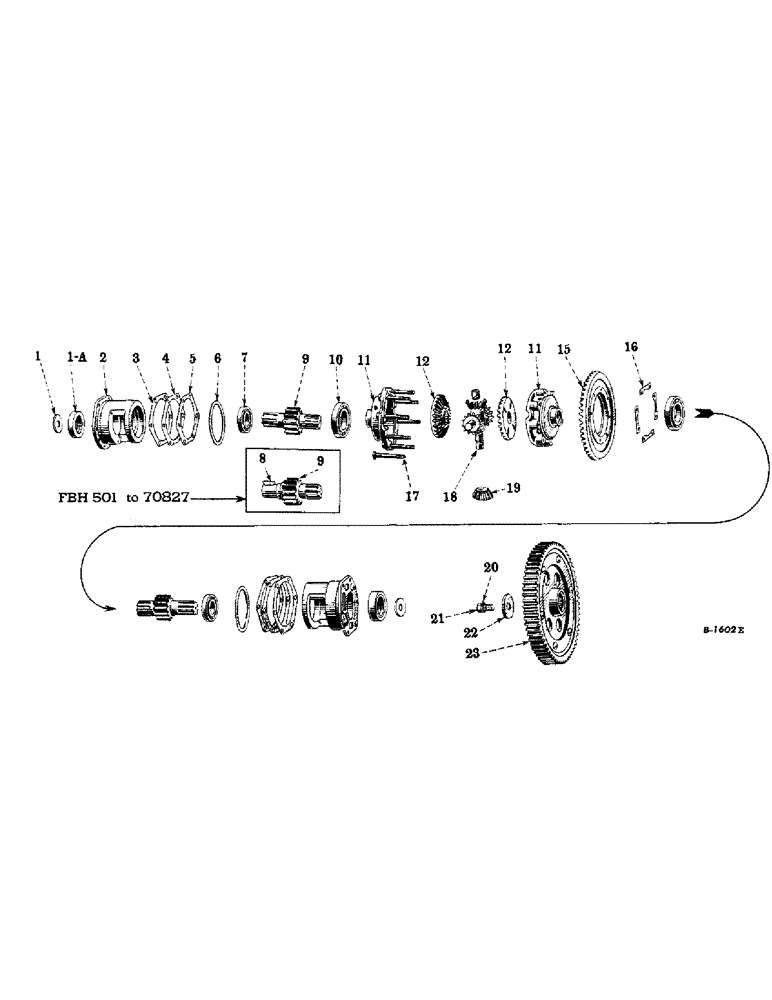

Запчасти Case IH FARMALL H (144) - CHASSIS, REAR AXLE DIFFERENTIAL, SERIAL NO. 501 TO 391357 (12) - CHASSIS

1

58154D

BULL PINION AND BRAKE SHAFT SEAL (S/N 70828 TO 73939)

2шт.

1

63090D

WASHER,13.1mm ID x 41.27mm OD x 3.97mm Thk

BULL PINION AND BRAKE SHAFT SEAL (S/N, Serial Range: 73940-391357)

2шт.

1a

48498D

SEAL

BULL PINION SHAFT OIL SEAL (Optional with 358777R91 and 360252R91)

2шт.

1a

358777R91

SEAL

BULL PINION SHAFT OIL SEAL (Optional with 48498D and 360252R91)

2шт.

1a

360252R91

OIL SEAL

BULL PINION SHAFT OIL SEAL (Optional with 48498D and 358777R91)

2шт.

2

8518DBX

BULL PINION SHAFT BEARING CAGE WITH OIL SEAL, 48498D and seal, 4222D (Will work for 8255DAX and 8256DAX)

2шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

CAP SCREW, 7/16 x 1-1/4" N.C. hex head

12шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

12шт.

3

392773R1

SHIM

BULL PINION SHAFT BEARING CAGE SHIM (Light)

4шт.

4

392774R1

SHIM

BULL PINION SHAFT BEARING CAGE SHIM (Medium)

1шт.

5

47849D

SHIM

BULL PINION SHAFT BEARING CAGE SHIM (Heavy)

1шт.

6

4222D

SEAL

BULL PINION SHAFT BEARING CAGE RUBBER SEAL (S/N 5986 UP)

2шт.

7

ST201

BEARING, BALL,45mm ID x 85mm OD x 19mm W

BULL PINION SHAFT BALL BEARING

2шт.

8

20020D

BRAKE DRUM KEY (Woodruff) (S/N, Serial Range: 501-70827)

2шт.

9

48497DA

BULL PINION (12 teeth) AND BRAKE SHAFT (S/N, Serial Range: 501-70827)

2шт.

353539R2

BULL PINION (12 teeth) AND BRAKE SHAFT (Will work for 58153DA) (S/N, Serial Range: 70828-391357)

2шт.

10

ST227

DIFFERENTIAL BALL BEARING

2шт.

item # 10, st227, bearing, S/B ST227B djo 8/10/98

1шт.

11

43736DA

DIFFERENTIAL CASE (2 halves) L.H. and R.H. (Will work for 6128DA and 6129DA)

1шт.

12

48466DA

DIFFERENTIAL BEVEL GEAR (24 teeth)

2шт.

15

48470D

DRIVE BEVEL GEAR (49 teeth)

1шт.

16

43699D

STRIP

DIFFERENTIAL CASE BOLT LOCK PLATE

4шт.

17

48471D

BOLT (SPREADER),7/16" - 20 x 4"

DIFFERENTIAL CASE BOLT

8шт.

103027

HEX NUT, 7/16" N.F.

8шт.

18

20731DA

DIFFERENTIAL SPIDER

1шт.

19

48469DA

DIFFERENTIAL BEVEL PINION (13 teeth)

4шт.

20

103326

LOCK WASHER,3/4"

WASHER, LOCK, , Follows Ref #22 3/4"

1шт.

21

181507

FOLLOWS REFERENCE NO. 22

1шт.

22

49673DA

BULL GEAR RETAINER WASHER

2шт.

181507

CAP SCREW, 3/4 x 1-3/4" N.F. hex head

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

23

357463R11

BULL GEAR, with six rivets, 107223 (66 teeth) (Optional with 357462R91) (Will work for 51565DX and 357464R91)

2шт.

23

357462R91

BULL GEAR, with six rivets, 107223 (66 teeth) (Optional with 357463R11) (Will work for 51565DX and 357464R91)

2шт.

107223

X

RIVET, steel, 1/2 x 1-3/4" truss head

12шт.
