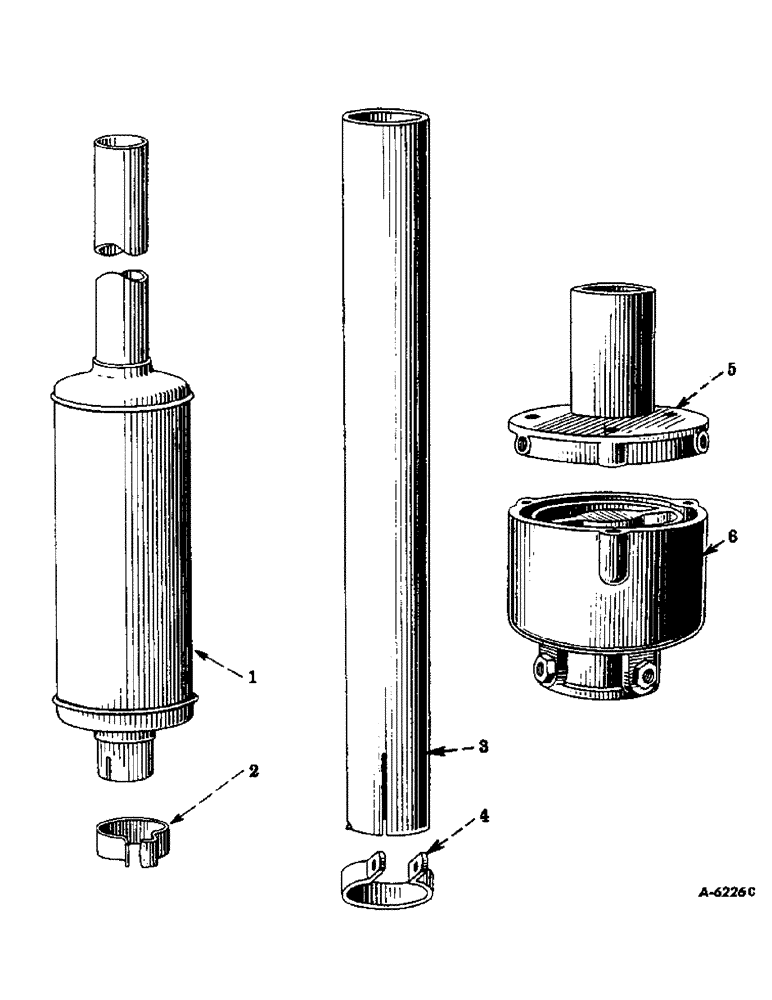

Запчасти Case IH FARMALL H (214) - ATTACHMENTS, EXHAUST MUFFLER, EXHAUST PIPE EXTENSION, AND SPARK ARRESTER, SPECIAL Attachments

51071DD

EXHAUST MUFFLER ATTACHMENT (Reference nos. 1 and 2)

1шт.

53556D

EXHAUST EXTENSION ATTACHMENT (Reference nos. 3 and 4)

1шт.

51579D

SPARK ARRESTER ATTACHMENT (Reference nos. 5 and 6)

1шт.

1

350600R95

MUFFLER

EXHAUST MUFFLER (Optional with 355869R91) (Will work for 51070D)

1шт.

1

355869R91

MUFFLER

EXHAUST MUFFLER (Optional with 350600R95) (Will work for 51070D)

1шт.

2

350602R1

CLAMP

EXHAUST MUFFLER CLAMP (Will work for 31790DA and 353837R91)

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

CAP SCREW, 1/2 x 1-3/8" N.C. hex head

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

220068

HEX NUT, 1/2" N.C.

1шт.

3

51951D

PIPE

EXHAUST PIPE EXTENSION

1шт.

4

31790DA

CLAMP

EXHAUST PIPE EXTENSION CLAMP

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4" N.C. hex

1шт.

280136

NUT,3/8"-16, G8

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

8163D

SPARK ARRESTER TOP

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

3шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

6

8162D

SPARK ARRESTER BODY

1шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8" x 1" N.C. square head (cup point)

2шт.

218438

HEX JAM NUT, 3/8" N.C.

2шт.
