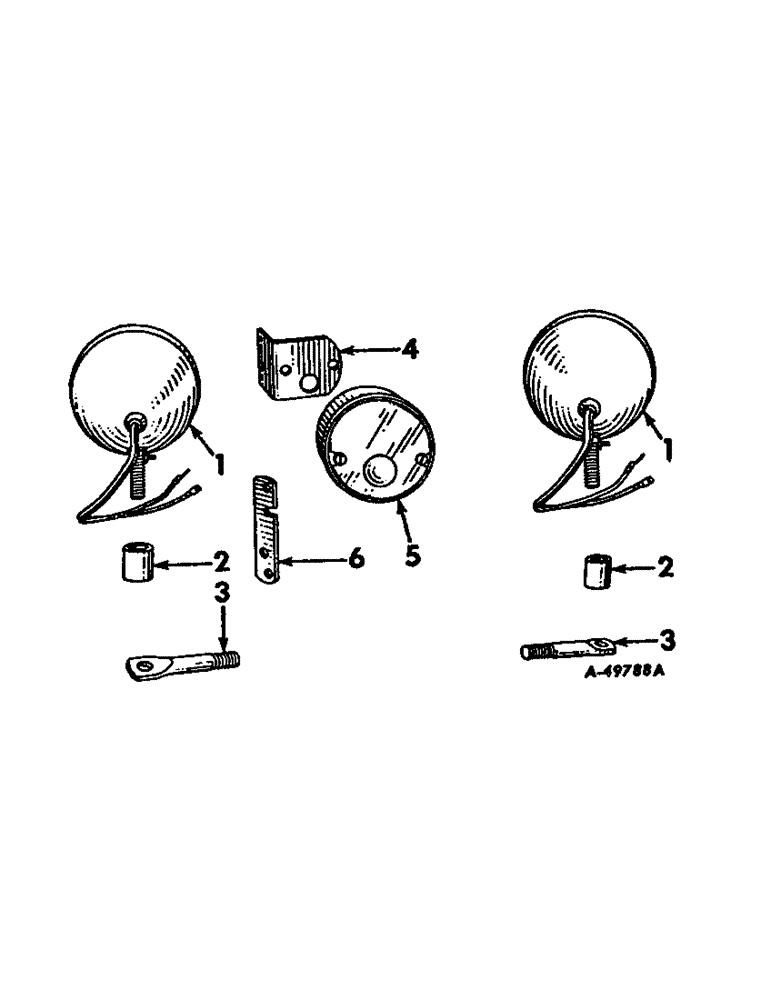

Запчасти Case IH FARMALL CUB (08-13) - ELECTRICAL, HEAD LIGHTS, TAIL LIGHT AND SUPPORTS (06) - ELECTRICAL

1

370734R91

LAMP

LIGHT ASSY, head or rear, 6 volt, cub tractors w/serial no.210001 to 224000, cub lo-boy tractors w/serial nos 10001 to 18700, for components see list of parts under details of head lights or rear light, order light assy, 381181R91 and cable, 381182R91

3шт.

1

381181R91

LIGHT

ASSY, head or rear, 6 volt, only serviceable item is sealed beam unit, 373661R91

3шт.

381182R91

CABLE ASSY.

CABLE ASSY, light

1шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

1

376849R91

HEADLIGHT

LIGHT ASSY, head, 12 volt, only serviceable items are connector, 530029R91 and

2шт.

373662R91

LAMP

ASSY, seal beam, optional w/131508C1

1шт.

131508C1

LAMP BASE

LAMP ASSY, seal beam, Tungsten, halogen, optional w/373662R91, cub tractors w/serial no. 224401 and above, cub lo-boy tractors w/serial no. 18701 and above

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

45569D

SPACER

head light

2шт.

3

351341R1

BOLT

POST, head light

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

371029R1

BRACKET, tail light, all cub lo-boy tractors and cub tractors w/ serial no. 250449 and below

1шт.

4

121848C1

BRACKET

tail light, cub tractors w/serial no. 250450 and above

1шт.

109084

NUT,1/4"-20, G5

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

5

LIGHT ASSY, tail, for components see list of parts under details of tail light

1шт.

6

364163R1

BRACKET, tail light extension, cub lo-boy tractors only

1шт.

120367

NUT,Hex, 1/4" - 28, Gr 5

1/4-28 hex

2шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, 1/4-28 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
