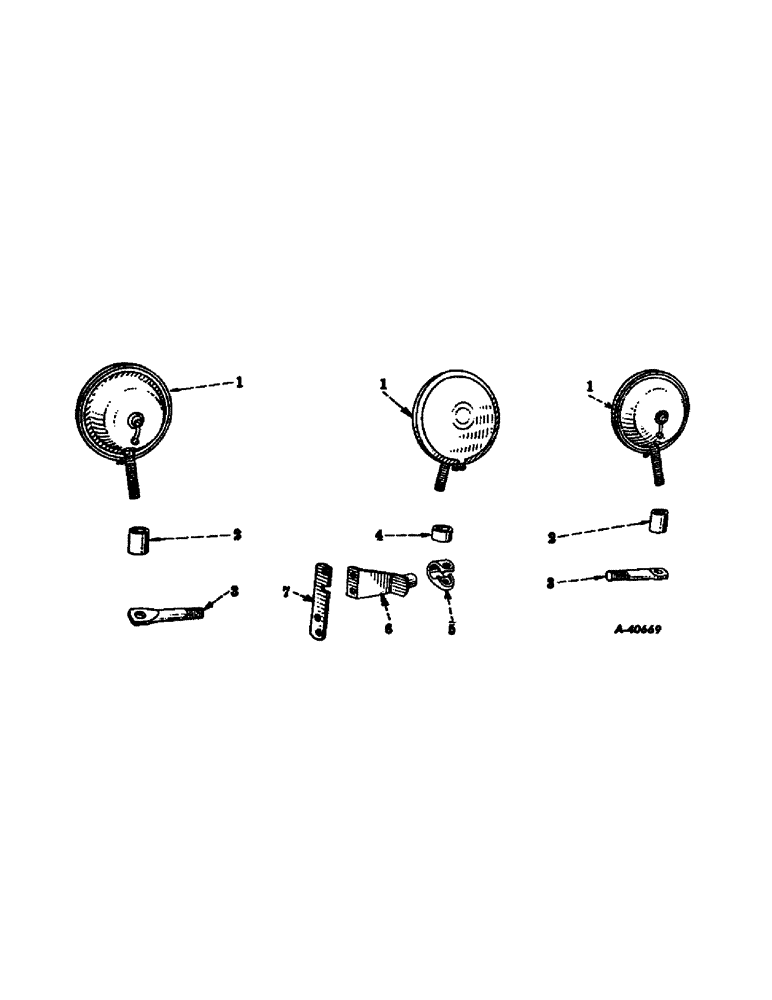

Запчасти Case IH FARMALL CUB (08-12) - ELECTRICAL, HEAD LIGHTS, REAR LIGHTS AND SUPPORTS (06) - ELECTRICAL

1

45640DB

LAMP

LIGHT ASSY, head or rear, 6 volt, conventional, for components see list of parts under details of head lights or rear light, order light assy, 381181R91, cable, 381182R91 and spacer, 365503R1

3шт.

1

357884R94

LAMP

LIGHT ASSY, hear or rear, 6 volt, sealed beam, for components see list of parts under details of head lights or rear light, order light assy, 381181R91, cable, 381182R91 and spacer, 365503R1

3шт.

1

373572R91

LAMP

LIGHT ASSY, head or rear, 6 volt, replaces 357884R94, for components see list of parts under details of head lights or rear light, order light assy, 381181R91, cable, 381182R91 and spacer, 365503R1

3шт.

1

381181R91

LIGHT

ASSY, head or rear, 6 volt, only serviceavle item is sealed beam unit, 373661R91

3шт.

381182R91

CABLE ASSY.

CABLE ASSY, light

1шт.

102637

NUT,1/2"-13, G5

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

2

45569D

SPACER

head light

2шт.

3

351341R1

BOLT

POST, head light

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

49069D

SPACER

rear light

1шт.

5

350920R1

CLAMP

rear light

1шт.

6

352121R11

BRACKET

rear light

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

2шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, 1/4-28 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

364163R1

BRACKET, rear light extension, cub lo-boy tractors only

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

2шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, 1/4-28 x 3/4 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
