Запчасти Case IH FARMALL CUB (08-11) - ELECTIRCAL CRANKING MOTOR, DELCO-REMY, 12 VOLT (06) - ELECTRICAL

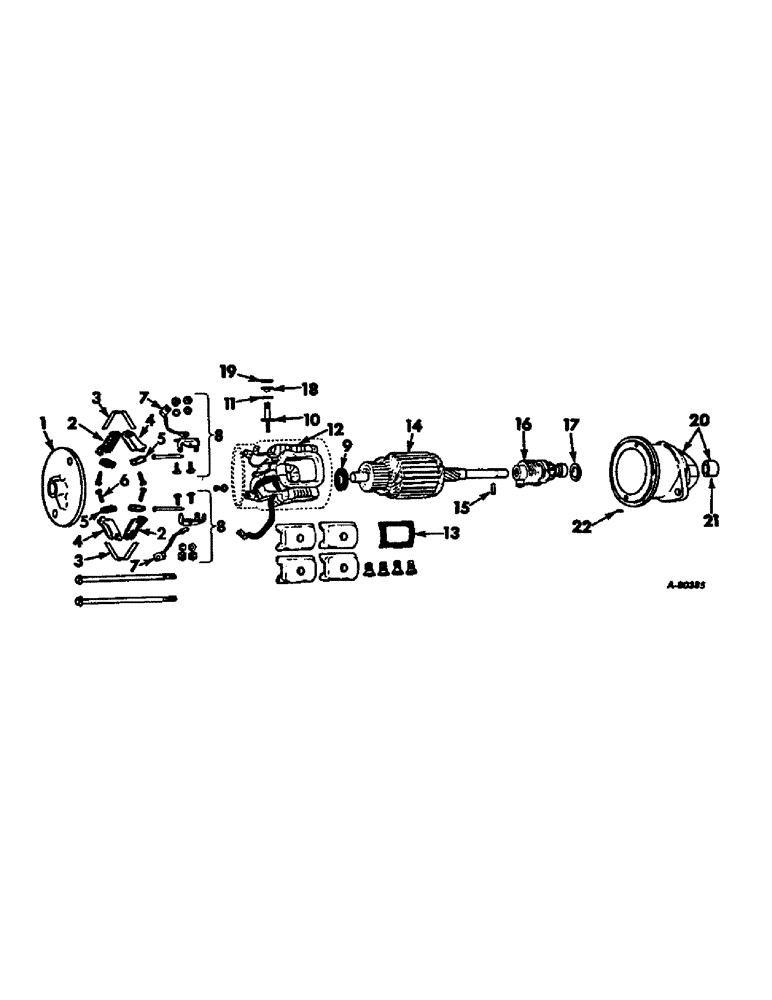

Схема запчастей Case IH FARMALL CUB - (08-11) - ELECTIRCAL CRANKING MOTOR, DELCO-REMY, 12 VOLT (06) - ELECTRICAL
12
4
8
1
5
13
22
6
16
9
5
14
17
15
2
20
7
8
19
10
3
11
4
7
21
18
2
3

Артикул

Название

Примечание

Количество

1107327

MOTOR

ASSY, cranking, 12 volt, order 1109352, cub tractors w/ serial no. 224401 to 321481 and cub lo-boy w/serial no. 18701 and above

1шт.

1109352

MOTOR

ASSY, cranking, cub tractors w/serial no 321482 and above

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

1

1928966

FRAME

commutator end, used w/1107327

1шт.

1

1977477

FRAME, commutator end, used w/1109352

1шт.

2

1926618

HOLDER

insulated brush

2шт.

3

1926622

VALVE SPRING

SPRING, brush

2шт.

4

1940477

HOLDER

ground brush

2шт.

5

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

6

131977

SCREW, brush attaching, used w/1107327

4шт.

6

1967747

SCREW

commutator brush ground, used w/1109352

2шт.

6

443527

SCREW, commutator brush ground holder, used w/1109352

2шт.

7

1960864

BRUSH, COMMUTATOR

LEAD, brush ground

2шт.

8

1928015

BRACKET

KIT, brush holder support

2шт.

9

1914842

WASHER

commutator end brake

1шт.

10

1956246

STUD, terminal

1шт.

11

1961386

WASHER, insulated terminal stud

1шт.

12

1928969

FORK

COIL ASSY, field, 4 coils, used w/1107327

1шт.

12

1974435

COIL ASSY, field, 4 coils, used w/1109352

1шт.

13

1927853

FOAM INSULATION

INSULATION, field coil

4шт.

14

1963638

ARMATURE

1шт.

15

1963637

PIN, armature shaft

1шт.

16

1963642

DRIVE

ASSY, motor

1шт.

17

1853917

WASHER, drive end space

1шт.

18

1950245

BOOM

BUSHING, insulated terminal stud, used w/1107327

1шт.

18

1961387

BUSHING, insulated terminal stud, used w/1109352

1шт.

19

805613

WASHER, insulated terminal stud

1шт.

20

1963640

HOUSING

ASSY, drive end

1шт.

21

810620

BUSHING

drive end housing

1шт.

22

809593

PIN

drive end dowel, used 1107327 motor only

1шт.

1939970

FUSE

BOLT, thru

2шт.

Выбрано товаров: 32
