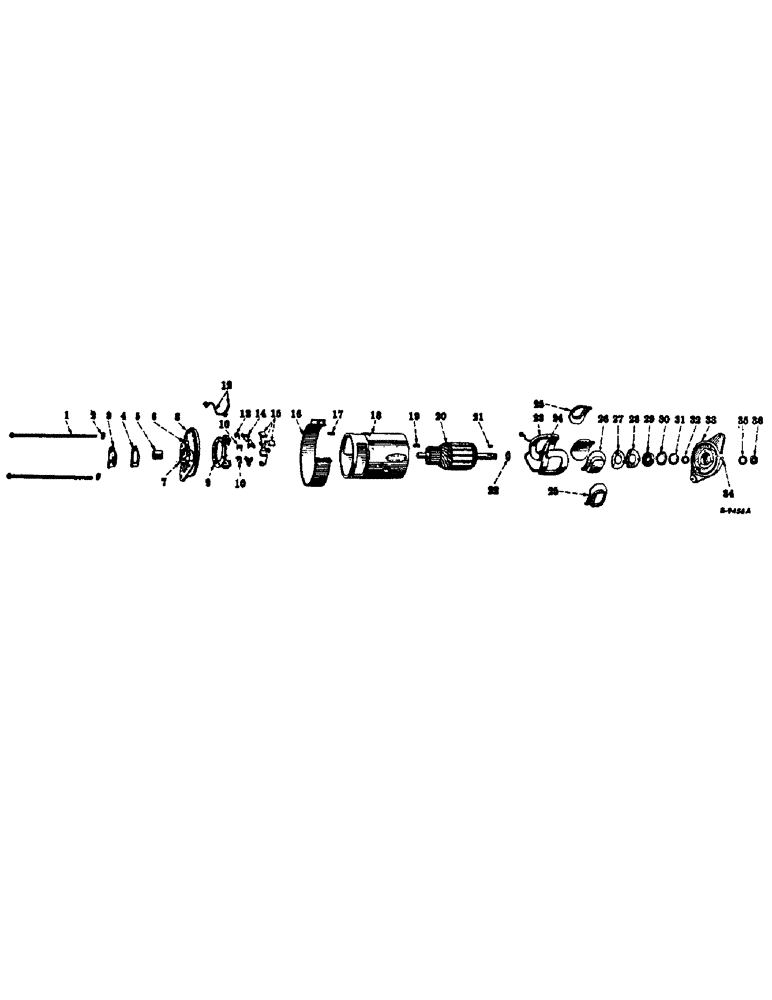

Запчасти Case IH FARMALL CUB (08-04[1]) - ELECTRICAL, GENERATOR, DELCO-REMY (06) - ELECTRICAL

1

1908680

SET OF MAIN BRGS -

BOLT, thru

2шт.

2

120638

LOCK WASHER

WASHER, 5/16 C-Z heavy lock

2шт.

3

820524

PLATE, commutator end frame cover

1шт.

113899

AXLE

SCREW, cover plate

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

4

817220

GASKET

cover plate

1шт.

5

812823

BUSHING

commutator end

1шт.

6

NLS

NO LONGER SERVICED

commutator end frame

1шт.

1947350

WICK

commutator end frame oiler

1шт.

7

1911097

PLUG, commutator end oiler wick

1шт.

8

1853830

FRAME

ASSY, commutator end, units A and B, composed of (1) bushing 812823, (1) frame, (NSS), (1) oiler 113702, (1) pin 112005, (1) plug 1911097, (1) wick 1947350

1шт.

8

1908871

FRAME ASSY, commutator end, unit C, composed of (1) bushing 812823, (1) frame (NSS), (1) oiler 113702, (1) pin 112005, (1) plug 1911097, (1) wick 1947350

1шт.

9

1913565

LARGE PLATE

PLATE W/THREE HOLDERS, brush

1шт.

113899

AXLE

SCREW, brush plate attaching

3шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

3шт.

10

1850760

SPRING, main brush, 2 for units A and B

1шт.

10

809644

SPRING

brush main LH, unit C

1шт.

10

809658

SPRING

brush main RH, unit C

1шт.

11

1906984

COMMUTATOR BRUSH

BRUSH, main, 2 for units A and B

1шт.

11

1880998

BRUSH

package, unit C, consists of three brushes

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

6-32 x 1/4 C-Z slt-rd-hd-mach

2шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, brush lead attaching screw lock

2шт.

12

1858754

STUD

POLE, armature terminal, includes lead, stud, 1858751 and terminal

1шт.

1885090

BUSHING

terminal stud insulating

1шт.

121743

CHAIN,#12 - 24

12-24 C-Z hex.

2шт.

1858749

PLUG

STUD, armature terminal

1шт.

1904661

LOCK WASHER

WASHER, terminal stud lock

2шт.

1881409

WASHER

terminal stud

1шт.

1858753

WASHER

terminal stud insulating

1шт.

13

1946798

SPRING

third brush, units A and B

1шт.

13

809644

SPRING

third brush, unit C

1шт.

14

1904365

ROD,377mm x 20mm Thx

HOLDER, brush, 3 for units A and B

1шт.

14

809642

HOLDER, brush, 3 for unit C

1шт.

1857412

WASHER, brush holder space plain

3шт.

15

1857963

RESISTOR

BRUSH, third, units A and B

1шт.

15

1880998

BRUSH

PACKAGE, unit C, consists of three brushes

1шт.

132688

SCREW,Sl Rnd Hd, #6 - 32 x 1/4"

6-32 x 1/4 C-Z slt-rd-hd mach

1шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, brush lead attaching screw lock

1шт.

16

1872638

BAND

W/NUT, 120614 and screw, 132926, cover

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

10-32 x 1-1/4 C-Z slt-rd-hd mach

1шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

1шт.

17

112005

PIN, commutator end frame dowel

1шт.

18

FRAME, not serviced separately

1шт.

19

809593

PIN

drive end frame dowel

1шт.

20

1947802

ARMATURE

unit A

1шт.

20

1921351

ARMATURE, unit B

1шт.

20

1947352

ARM ASSY.

ARMATURE, unit C

1шт.

21

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

1шт.

22

809945

BUSHING

WASHER, drive end space

1шт.

23

1913554

COIL SET, field

1шт.

24

1858749

PLUG

STUD, field terminal

1шт.

1885090

BUSHING

terminal stud insulating

1шт.

225-14112

NUT,#12-24

12-24 C-Z hex.

2шт.

1904661

LOCK WASHER

WASHER, terminal stud lock

2шт.

1881409

WASHER

terminal stud

1шт.

1858753

WASHER

terminal stud insulating

1шт.

25

1914491

INSULATOR, field coil

2шт.

26

1931258

SHOE, pole

2шт.

1968396

SCREW

pole shoe

2шт.

27

1911263

LARGE PLATE

PLATE, ball bearing retainer

1шт.

1914580

SCREW

bearing retainer plate

3шт.

178383

WASHER,Tooth, 0.20" ID x 0.68" OD, Steel, ZND

WASHER, bearing retainer plate screw lock

3шт.

28

1912008

FELT

GASKET, ball bearing retainer plate

1шт.

29

954378

BALL BEARING

BEARING, ball, drive end

1шт.

30

819104

WASHER

RETAINER, drive and felt washer

1шт.

31

809961

FELT

WASHER, felt drive end

1шт.

32

817224

SPACER, pulley

1шт.

33

1873830

FRAME, drive end

1шт.

34

125609

OILER

drive end bearing

1шт.

35

804000

WASHER, drive end shaft nut lock

1шт.

36

1917746

NUT, drive end shaft, units A and C

1шт.

36

1915172

NUT

drive end shaft, unit B

1шт.
