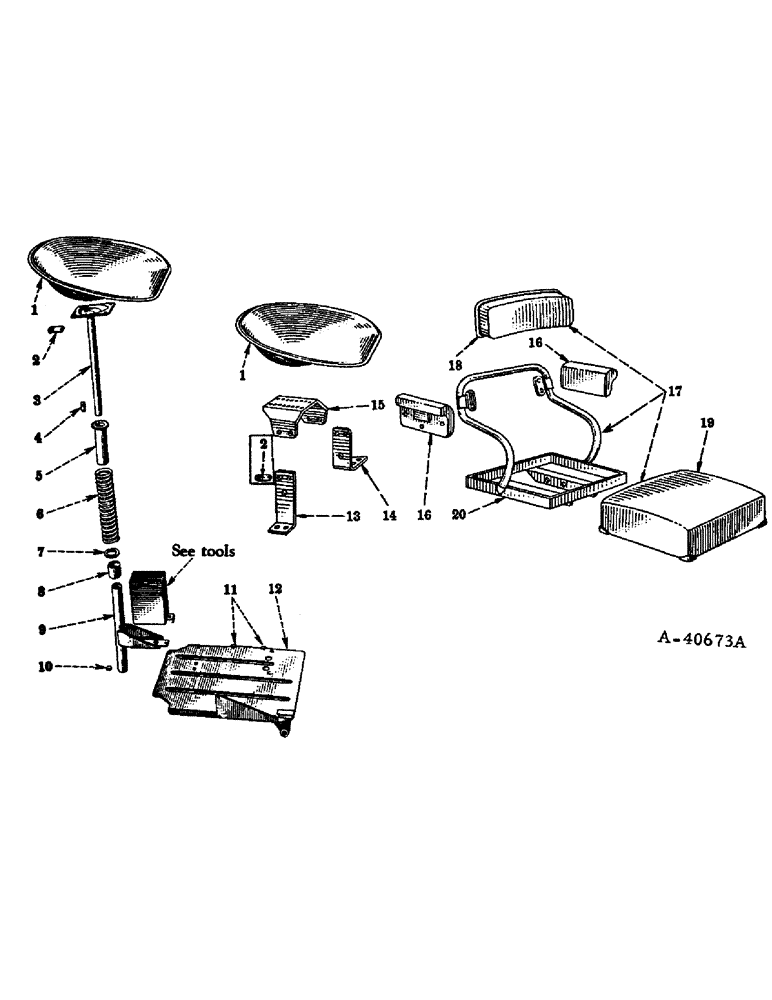

Запчасти Case IH FARMALL CUB (13-09) - SUPERSTRUCTURE, SEAT AND PLATFORM (05) - SUPERSTRUCTURE

1

351880R92

SEAT

plain

1шт.

1

351925R93

SEAT

ASSY, upholstered, replaces 354155R91 and 357518R92

1шт.

2

(Not used in this application)

1шт.

3

351888R32

POST ASSY, seat, cub tractors with plain seat

1шт.

181393

BOLT,Hex, 7/16" - 20 x 3/4", Gr 5

SCREW, 7/16-20 x 3/4 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

4

351882R1

GUIDE

seat post, cub tractors with plain seat

1шт.

181341

BOLT,Hex, 5/16" - 24 x 1 1/4", Gr 5

SCREW, 5/16-24 x 1-1/4 hex-hd cap

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

5

351886R11

RETAINER ASSY, seat spring, cub tractors with plain seat

1шт.

6

351872R1

SPRING

seat, cub tractors with plain seat

1шт.

7

351048R1

WASHER

seat spring, cub tractors with plain seat

1шт.

8

351881R1

SPACER, seat spring, cub tractors with plain seat

1шт.

9

351883R11

TUBE, seat support, cub tractors with plain seat

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

10

351879R1

SHOCK ABSORBER, seat post, cub tractors with plain seat

1шт.

11

351013R1

CLIP, starting crank, for tractors w/o starting and lighting system

2шт.

171573

SCREW, 10-32 x 1/4 slt-rd-hd tap

2шт.

12

351051R21

PLATFORM ASSY

1шт.

9635082

NUT,5/16" - 18, Gr 5

Cub tractors 5/16"-18, G5

3шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

2шт.

179814

SPACER

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

Not used on Cub lo-boy tractors with fast-hitch Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

13

364076R1

SUPPORT

deluxe cushion seat RH

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, 5/8-11 x 1-1/4 hex-hd cap, not used on cub lo-boy tractors with fast-hitch

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

364075R2

SUPPORT

deluxe cushion seat LH

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

Not used on Cub lo-boy tractors with fast-hitch Hex, 1/2"-13 x 1", G5, Full Thd

3шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, , Not used on cub lo-boy tractors with fast-hitch 1/2"

3шт.

15

BRACKET, seat support, cub lo-boy tractors with plain seat, discontinued for service

1шт.

181393

BOLT,Hex, 7/16" - 20 x 3/4", Gr 5

SCREW, 7/16-20 x 3/4 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

16

363740R91

CUSHION

PAD W/CLAMP, deluxe cushion seat arm rest, replaces 385743R91

2шт.

17

364398R92

SEAT

ASSY, deluxe cushion, composed of (1) cushion 363220R91, (1) frame 364399R91, (1) rest 363219R91, (2) screw 160541, (2) washer 120380, (2) washer 120382

1шт.

18

363219R91

CUSHION

REST ASSY, deluxe seat

1шт.

160541

SCREW,Cross Pan Hd, 1/4" - 20 x 3/4"

1/4-20 x 3/4 c-z cr-rec-pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120392

WASHER,1/4", SAE

9/32 x 5/8 x 16 ga znd (or as required)

2шт.

19

363220R91

CUSHION

ASSY, deluxe seat

1шт.

20

364399R91

FRAME

ASSY, deluxe seat

1шт.

103026

NUT,3/8"-24, G5

4шт.

181361

BOLT,Hex, 3/8" - 24 x 7/8", Gr 5

SCREW, 3/8-24 x 7/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

407204R2

SEAT CUSHION

CUSHION, deluxe seat pad, replaces 351438R93 and 359483R91

1шт.

385073R1

PAD

detachable seat, yellow/white

1шт.
