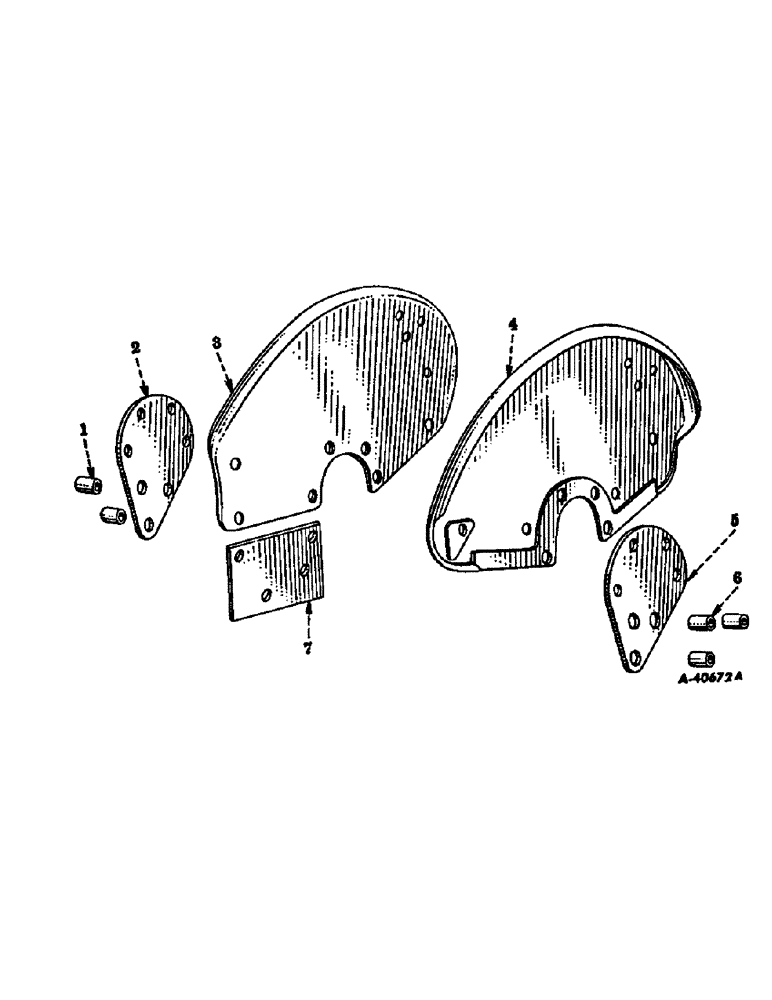

Запчасти Case IH FARMALL CUB (13-08) - SUPERSTRUCTURE, REAR FENDERS AND SUPPORT PLATE (05) - SUPERSTRUCTURE

1

364030R1

SPACER

fender support plate, 1-1/2 in. long, one used on tractors with fast-hitch, cub lo-boy tractors

2шт.

1

521426R1

SPACER

fender support plate, 15/16 in. long, one used on tractors with fast-hitch, cub lo-boy tractors

1шт.

2

364029R1

PLATE, fender support, cub lo-boy tractors

1шт.

17592R1

BOLT, 5/8-11 x 2-5/8 hex-hd mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

362901R92

FENDER ASSY, RH rear

1шт.

102635

NUT,3/8"-16, G5

4шт.

NLS

NO LONGER SERVICED

Cub lo-boy tractors Hex, 3/8"-16 x 1", G5

4шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Cub tractors Hex, 3/8"-16 x 2", G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

362901R92

FENDER ASSY, LH rear

1шт.

102635

NUT,3/8"-16, G5

4шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

Cub lo-boy tractors Hex, 3/8"-16 x 1", G5

4шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap, cub tractors

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

364029R1

PLATE, fender support, cub lo-boy tractors

1шт.

17592R1

BOLT, 5/8-11 x 2-5/8 hex-hd mach, tractors without fast-hitch

2шт.

17525R1

BOLT

5/8-11 x 2 hex-hd mach, tractors with fast-hitch

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8-11 x 2-1/2 hex-hd mach, tractors with fast-hitch

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, , Tractors without fast-hitch 5/8"

2шт.

6

364030R1

SPACER

fender support plate, 1-1/2 in. long, cub lo-boy tractors without fast-hitch

3шт.

6

521426R1

SPACER

fender support plate, 15/16 in. long, cub lo-boy tractors with fast-hitch

3шт.

7

364031R1

BRACE, RH fender, cub lo-boy tractors

1шт.

9635082

NUT,5/16" - 18, Gr 5

4шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

95-11034

WASHER,1/4"

11/32 x 11/16 x 16 ga

1шт.
