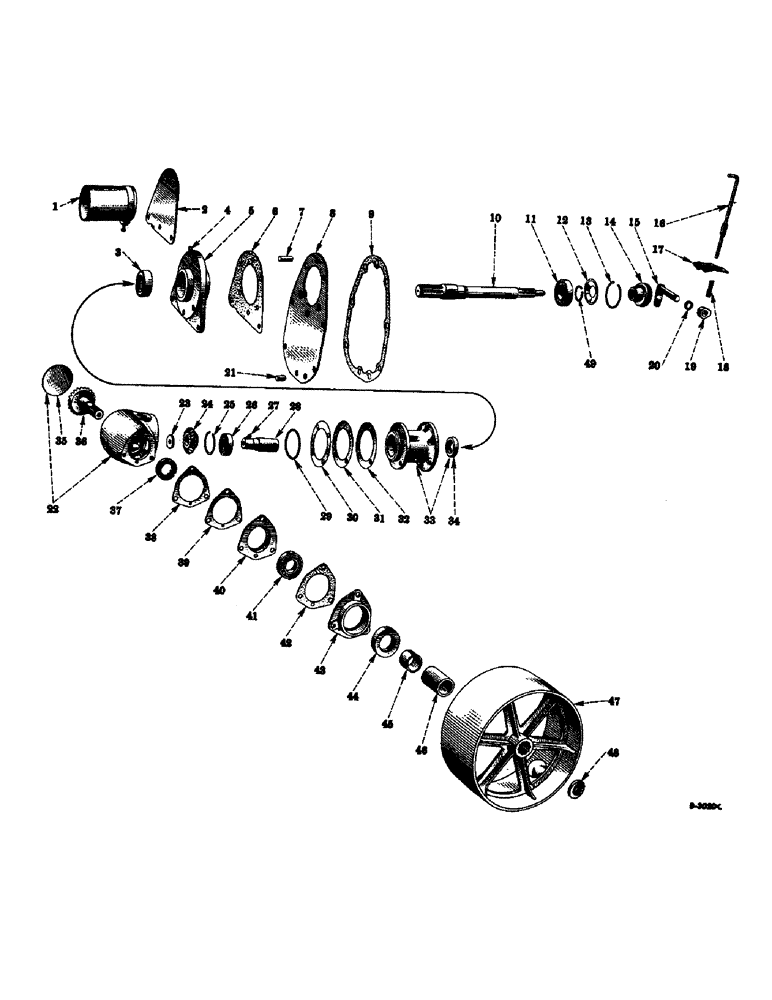

Запчасти Case IH FARMALL CUB (07-13) - DRIVE TRAIN, BELT PULLEY AND POWER TAKE-OFF (04) - Drive Train

SERVICE PARTS for tractors w/belt pulley and power take-off, unit A, cub tractors w/serial no. 192112 and below

1шт.

SERVICE PARTS for tractors w/belt pulley and power take-off, unit B, cub tractors w/serial no. 191113 and above, all cub lo-boy tractors

1шт.

POWER TAKE-OFF ATTACHMENT, 351234R91, unit C

1шт.

SERVICE PARTS for tractors w/belt pulley attachment, unit D, for tractors equipped with power take-off, cub tractors w/serial no. 192112 and below

1шт.

BELT PULLEY ATTACHMENT, 364571R91, unit E, for tractors equipped with power take-off, cub tractors w/serial no. 192113 and above, all cub lo-boy tractors

1шт.

1

54001DX

GUARD

ASSY, power take-off shaft, units A, B and C

1шт.

2

351257R2

COVER, power take-off adapter, used when power take-off is removed, units A, B and C

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

5шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

3

126107C1

OIL SEAL

SEAL, power take-off shaft oil, replaces 351271R91, units A, B and C

1шт.

4

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING, 3/16 65 deg angle drive type lubrication, units A, B and C

1шт.

5

351270R21

HUB

RETAINER ASSY, power take-off shaft oil seal and bearing, units A, B and C, composed of (1) fitting 273359, (1) oil seal 126107C1 (1) retainer 351270R2 (NSS)

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

5шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

3/8-16 x 1-3/8 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , 2 for units A and B; 7 for unit C 3/8"

1шт.

95-11041

WASHER,3/8"

(13/32" ID x 13/16" OD x no. 16 ga), 5 for units A, B and C, used when belt pulley is removed 3/8"

1шт.

6

351258R2

SEAL ASSY.

GASKET, power take-off adapter cover, units A, B and C, used when power take-off is removed

1шт.

6

351258R2

SEAL ASSY.

GASKET, power take-off shaft oil seal and bearing retainer, units A, B and C

1шт.

7

357215R1

PIN

DOWEL, power take-off adapter upper, units A, B and C

1шт.

8

351235R11

ADAPTER

W/POWER GRAPHIC, 539403R1, power take-off, units A, B and C

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

9

350837R2

GASKET

power take-off adapter, units A, B and C

1шт.

10

368433R91

SHAFT

W/RING, 122971R1 and shield, 351272R2, PTO, units A, B and C, used to replace a shaft not having groove for snap ring 351268R21

1шт.

11

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING, power take-off shaft ball, units A, B and C

1шт.

12

351272R2

RETAINER

SHIELD, power take-off bearing grease, units A, B and C

1шт.

13

69696D

SNAP RING

RING, power take-off shaft bearing snapm units A, B and C

1шт.

14

351286R2

CLUTCH ASSEMBLY

CLUTCH, power take-off shifter, units A, B and C

1шт.

223016

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4-20 x 1/4 hex-soc-hd half dog-pt set

1шт.

15

351287R11

LEVER

AND SHAFT ASSY, power take-off shifter, units A, B and C

1шт.

16

351970R31

ROD

ASSY, power take-off shifter, units A, B and C

1шт.

137130

PIN

1/16 x 7/16 cot.

1шт.

17

351967R1

GUIDE

power take-off shifter rod, units A, B and C

1шт.

18

351969R1

VALVE SPRING

SPRING, power take-off shifter rod, units A, B and C

1шт.

19

351968R1

COLLAR CLAMP

COLLAR, power take-off shifter lever, units A, B and C

1шт.

20

351291R1

SEALING WASHER

power take-off shifter shaft, units A, B and C

1шт.

21

258917R1

DOWEL

power take-off adapter lower, will work for 355426R1, units A, B and C

1шт.

22

351260R21

HOUSING ASSY, belt pulley drive, units A, B, D and E, composed of (1) housing 351260R2 (NSS), (2) plug 444576, (1) plug 444595, (1) plug 16684R1

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto, Hex Socket

2шт.

444595

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG, 3/4-14 auto, znd sq-hd pipe

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

351268R1

WASHER, belt pulley drive pinion, units A, B, D and E

1шт.

24

351267R1

PINION

belt pulley drive, units A, B, D and E

1шт.

25

69696D

SNAP RING

RING, belt pulley drive housing support bearing snap, units A, B, D and E

1шт.

26

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING, belt pulley drive housing support ball, units A, B, D and E

1шт.

27

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

(Units A, B, D and E) #9, 3/16" x 3/4", HT

1шт.

28

351265R12

SLEEVE CYLINDER

SLEEVE ASSY, belt pulley drive pinion, units A, B, D and E

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

254091R1

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

2-3/4 x 3 x 1/8, belt pulley drive housing, units A, B, D and E

1шт.

30

351261R1

SHIM, belt pulley drive housing heavy, units A, B, D and E

1шт.

31

351262R1

SHIM, belt pulley drive housing medium, units, A, B, D and E

1шт.

32

351263R1

SHIM

belt pulley drive housing light, units A, B, D & E

1шт.

33

351259R21

SUPPORT W/OIL SEAL, 19857D and breather, 355120R91 belt pulley drive housing, units A, B, D and E

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

2шт.

179842

SPACER

3/8-16 x 1-3/8 hex-hd cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

34

63431C1

OIL SEAL

SEAL, belt pulley drive housing support oil, units A, B, D and E, replaces 19857D

1шт.

35

16684R1

PLUG,Expansion, 3 1/4"

3-1/4 in. diameter expansion, units A, B, D and E

1шт.

36

351273R1

SHAFT

belt pulley drive, units A, B, D and E

1шт.

181364

BOLT,Hex, 3/8" - 24 x 1", Gr 5

SCREW, 3/8-24 x 1 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

37

351274R91

ROLLER BEARING,1.11" ID x 1.8504" OD x 0.5512"

belt pulley drive shaft inner, units A, B, D and E

1шт.

38

351280R1

SHIM

belt pulley drive shaft bearing case, heavy, units A, B, D and E

1шт.

39

351281R1

SHIM

belt pulley drive shaft beaing cage, medium, units A, B, D and E

1шт.

39

351282R1

SHIM, belt pulley drive shaft bearing cage, light, units A, B, D and E

1шт.

40

351279R1

CAGE, belt pulley drive shaft bearing, units A, B, D and E

1шт.

41

ST225B

BALL BEARING,25 mm ID x 52 mm OD x 13 mm

BEARING, blet pulley drive shaft outer, units A, B, D and E

1шт.

42

351277R1

GASKET

belt pulley drive shaft oil seal retainer, units A, B, D and E

1шт.

43

351275R21

RETAINER

W/OIL SEAL, 351276R91 belt pulley drive shaft, units A, B, D and E

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

44

351276R91

SEAL

belt pulley dirve shaft oil, units A, B, D and E

1шт.

45

351283R2

SPACER

belt pulley, units A, B, D and E

1шт.

46

351278R1

SPACER,1" Pipe x 1 1/2"

belt pulley drive shaft, units A, B, D and E

1шт.

47

351284R1

PULLEY, belt, 9 in. dia. x 4-3/4 in. face, units A, B, D and E

1шт.

47

351285R1

PULLEY, belt, 7-5/8 in. dia. x 4-3/4 in face, units A, B, D and E

1шт.

47

354905R1

PULLEY, belt, 6 in. dia. 4-3/4 in. face, units A, B, D and E

1шт.

48

351268R1

WASHER, belt pulley drive shaft, units A, B, D and E

1шт.

49

369875R1

RING, SNAP

RING, power take-off bearing snap, used only on shafts with groove for snap ring, units A, B and C

1шт.

355120R91

BREATHER, belt pulley drive housing support, units A, B, D and E

1шт.
