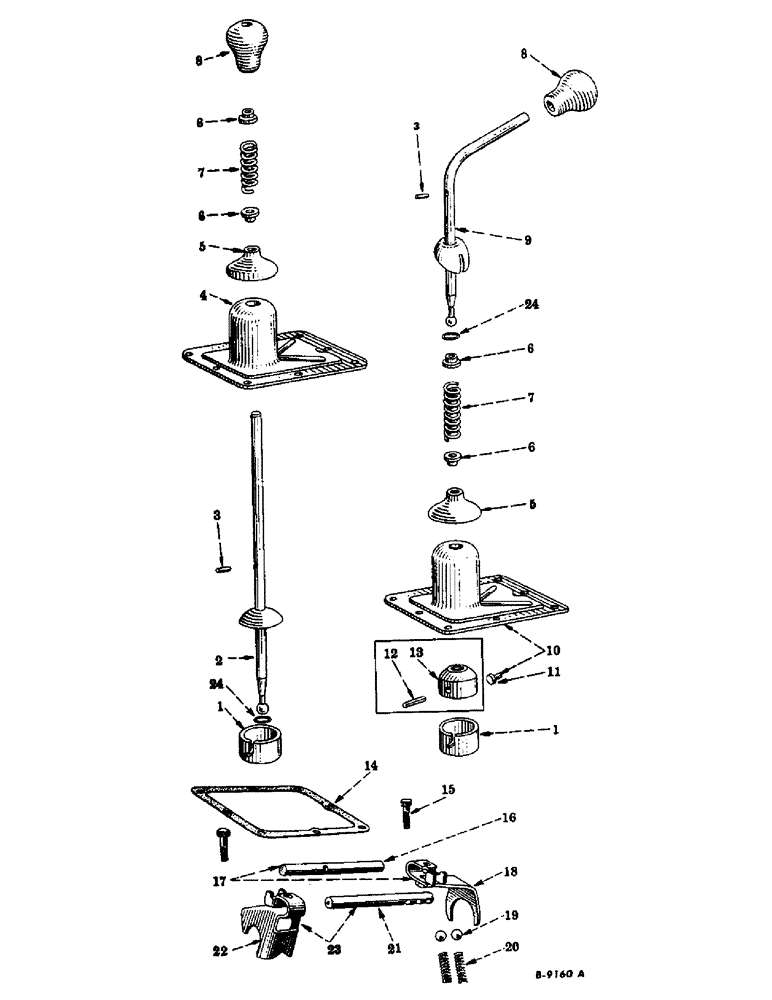

Запчасти Case IH FARMALL CUB (07-09) - DRIVE TRAIN, GEAR SHIFT MECHANISM (04) - Drive Train

1

351547R1

GUIDE

gear shift lever

1шт.

2

356530R91

LEVER

ASSY, gear shift, used only on cub tractors without deluxe cushion seat

1шт.

3

382646R1

AXLE PIN

PIN, gear shift swivel spring retainer

1шт.

4

351545R2

HOUSING

gear shift lever, used only on cub tractors without deluxe cushion seat

1шт.

179812

GEAR

SCREW, 5/16-18 x 1/2 hex-hd cap

8шт.

5

350882R1

CASE

SHIELD, gear shift lever

1шт.

6

350884R1

RETAINER

gear shift swivel spring

2шт.

7

350883R1

VALVE SPRING

SPRING, gear shift swivel

1шт.

8

53717DA

BUTTON

KNOB, gear shift lever

1шт.

9

364067R12

LEVER

ASSY, gear shift, used only on cub tractors with deluxe cushion seas and all cub lo-boy tractors

1шт.

10

364065R11

HOUSING

W/PIN, 364066R1, gear shift lever, used only on cub tractors with deluxe cushion seat and all cub lo-boy tractors

1шт.

179814

SPACER

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

11

364066R1

PIN

gear shift lever swivel stop, used only on cub tractors with deluxe cushion seat and all cub lo-boy tractors

1шт.

12

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, , not used on levers with welded swivel, used only on cub tractors with deluxe cushion seat and all cub lo-boy tractors 3/16" x 1 1/2", Slotted

1шт.

13

364068R1

SWIVEL, gear shift lever, not used on levers with welded swivel, used only on cub tractors with deluxe cushion seat and all cub lo-boy tractors

1шт.

14

351546R1

GASKET

gear shift lever housing

1шт.

15

351543R2

BOLT,Hex, 5/16" - 24 x 1 1/8" , Cl 5

SCREW, shiftter fork

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

352774R3

SHAFT

ROD, second and third speed shifter, cub tractors w/serial no. 5000 and above, all cub lo-boy tractors

1шт.

17

352766R97

FORK ASSY, second and third speed shifter, order fork 355601R92 and rod 352774R3, cub tractors w/serial no. 4999 and below

1шт.

18

355601R92

FORK

W/SCREW, 351543R2 and washer, 103320, second and third speed shifter, cub tractors w/serial no. 5000 and above, all cub lo-boy tractors

1шт.

19

16012R1

BALL

3/8 diameter cr-stl, gear shift poppet

2шт.

20

350876R1

SPRING

gear shift poppet

2шт.

21

352770R3

GUIDE

ROD, first and reverse speed shifter, cub tractors w/serial no. 5000 and above, all cub lo-boy tractors

1шт.

22

355600R93

FORK TEDDER

FORK W/SCREW, 351543R2 and washer, 103320, first and reverse speed shifter, cub tractors w/serial no. 5000 and above, all cub lo-boy tractors

1шт.

23

352773R97

FORK ASSY, first and reverse speed shifter, order fork, 355600R93 and rod 352770R3, cub tractors w/serial no. 4999 and below

1шт.

24

370920R1

O-RING,1/2" ID

1/2 x 5/8 x 1/16, gear shift lever

1шт.

353044R1

PACKAGE

CLAMP, shifter fork, order fork 355600R93 or 355601R92, cub tractors w/serial nos, Serial Range: 8525-13586

1шт.
