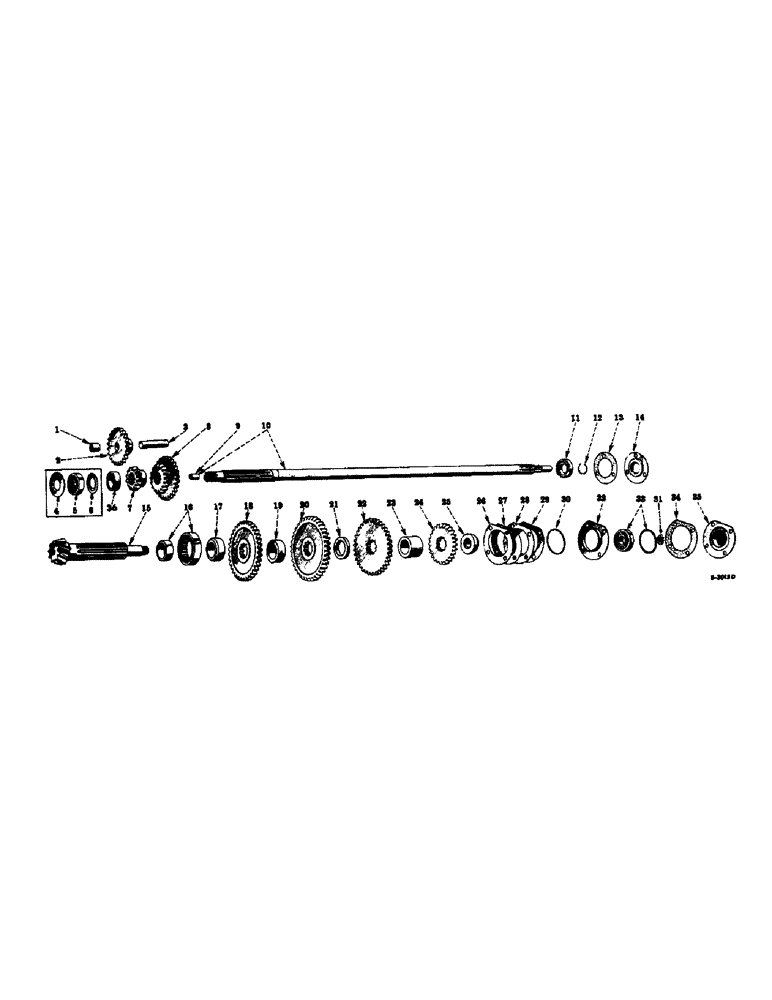

Запчасти Case IH FARMALL CUB (07-07) - DRIVE TRAIN, TRANSMISSION (04) - Drive Train

1

350871R1

BUSHING

reverse idler gear

1шт.

2

350870R11

PINION

GEAR W/BUSHING, 350871R1, reverse idler, 22 teeth

1шт.

3

350869R1

PIN

SHAFT, reverse idler

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

4

351535R1

WASHER

SHIELD, transmission spline shaft rear bearing, used with transmission case 351530R1 thru 351530R5, cub tractors w/serial no. 180613 and below

1шт.

5

352402R91

BEARING, ROLLER, CYL,20.57mm ID x 42mm OD x 13mm W

transmission spline shaft rear roller, used with transmission case 351530R1 thru 351530R5, cub tractors w/serial no. 108613 and below

1шт.

6

351536R1

WASHER

SHIELD, transmission spline shaft front bearing, used with transmission case 351530R1 thru 351530R5, cub tractors w/serial no. 180613 and below

1шт.

7

350867R1

PINION

GEAR, first and reverse speed sliding, 13 teeth

1шт.

8

350868R1

PINION

GEAR, second and third speed sliding, 17 and 26 teeth, cub tractors w/serial no. 192112 and below

1шт.

8

364520R1

GEAR

second and third speed sliding, 16 and 26 teeth, cub tractors w/serial no. 192113 and above, all cub lo-boy tractors

1шт.

9

350859R1

BUSHING,9.55mm ID x 11.3mm OD x 19.05mm L

power take-off shaft pilot

1шт.

10

351534R21

SHAFT

W/BUSHING, 350859R1, transmission spline and clutch

1шт.

11

ST542

BALL BEARING,25mm ID x 47mm OD x 12mm W

BEARING, transmission spline shaft front

1шт.

12

351539R1

RING

transmission spline shaft front bearing lock

1шт.

13

350866R1

GASKET

transmission spline shaft oil seal

1шт.

14

528810R91

OIL SEAL

transmission spline shaft oil

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

3шт.

15

351531R1

COUNTERSHAFT AND BEVEL PINION, 10 teeth

1шт.

108635

PIN,1/8" x 1 1/8"

Split (Cotter), 1/8" x 1 1/8"

1шт.

16

350857R91

BEARING, ROLLER, CYL,30mm ID x 62.99mm OD x 16mm W

countershaft rear

1шт.

17

351532R1

SPACER

reverse speed gear and countershaft bearing

1шт.

18

350848R1

PINION

GEAR, reverse speed, 35 teeth

1шт.

19

351532R1

SPACER

first and reverse speed gear

1шт.

20

350850R1

GEAR

first speed, 39 teeth

1шт.

21

351533R1

WASHER

SPACER, first and second speed gear

1шт.

22

350852R1

PINION

GEAR, second speed, 35 teeth, cub tractors w/serial no. 192112 and below

1шт.

22

364519R1

GEAR

second speed, 36 teeth, cub tractors w/serial no. 192113 and above, all cub lo-boy tractors

1шт.

23

350853R1

SPACER

second and third speed gear

1шт.

24

350854R1

PINION

GEAR, third speed, 28 teeth

1шт.

25

385689R2

SPACER

third speed gear and counteshaft bearing

1шт.

26

350841R2

SHIM

countershaft bearing retainer fine, .004 (or as required)

2шт.

27

350842R2

SHIM

countershaft bearing retainer light, .007 (or as required)

2шт.

28

350843R2

SHIM

countershaft bearing retainer medium, .015

1шт.

29

350844R2

SHIM

countershaft bearing retainer heavy, .030

1шт.

30

350840R1

RING

countershaft bearing retainer seal

1шт.

31

70119D

NUT

countershaft

1шт.

32

385688R1

RETAINER

countershaft bearing, also order spacer 385689R2

1шт.

33

ST668

BALL BEARING,20mm ID x 52mm OD x 15mm W

BEARING, countershaft front

1шт.

34

350846R1

GASKET

countershaft bearing retainer cap

1шт.

35

350845R1

CAP

countershaft bearing retainer

1шт.

179815

BOLT,Hex, 5/16" - 18 x 11/16", Gr 5

4шт.

36

357931R91

NEEDLE BEARING

transmission spline shaft rear needle, cub tractors w/ serial no. 180614 and above, all cub lo-boy tractors

1шт.
