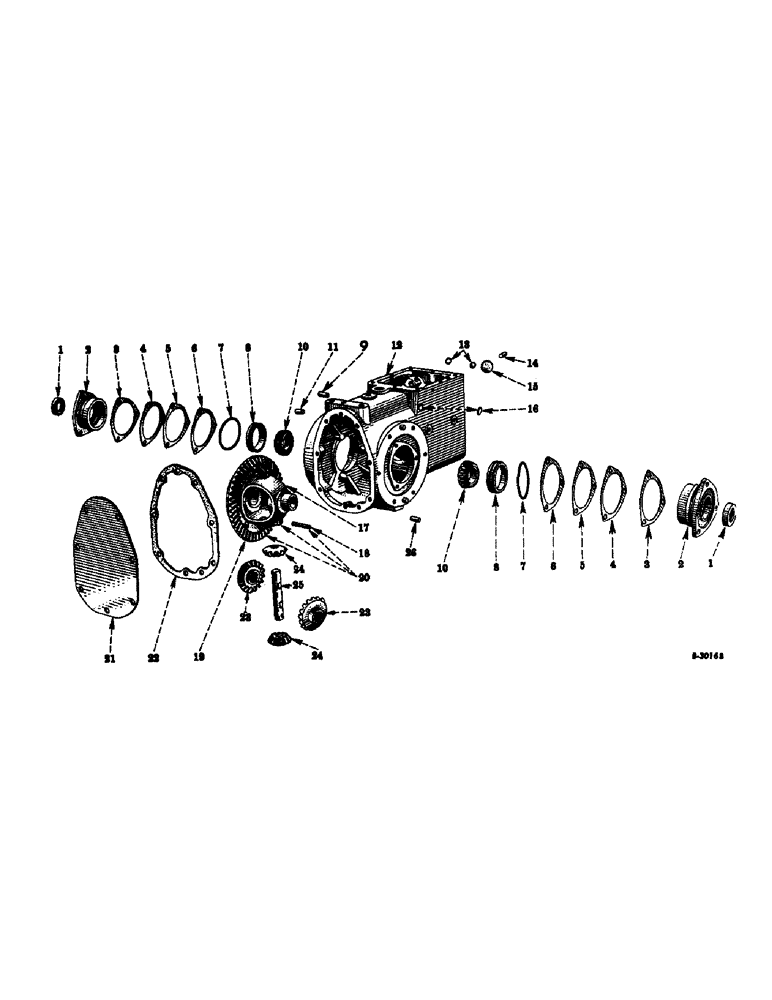

Запчасти Case IH FARMALL CUB (07-05) - DRIVE TRAIN, TRANSMISSION CASE AND DIFFERENTIAL (04) - Drive Train

1

385872R91

OIL SEAL,25.48mm ID x 46.58mm OD x 11.48mm Thk

differential shaft inner bearing retainer oil

2шт.

2

376158R91

CAGE

RETAINER W/BEARING, ST974, differential

2шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

350794R1

SHIM

differential bearing retainer, extra light (or as required)

3шт.

4

350795R1

SHIM

differential bearing retainer, light (or as required)

4шт.

5

350796R1

SHIM

differential bearing retainer, medium (or as required)

2шт.

6

350797R1

SHIM

differential bearing retainer, heavy (or as required)

2шт.

7

285723R1

O-RING,0.139" Thk x 3.109" ID, -235, Cl 5, 75 Duro

3-1/8 x 3-3/8 x 1/8, differential bearing retainer

2шт.

8

ST974

TAPERED BEARING,1.313" ID x 2.718" OD x 0.7953"

BEARING, differential shaft inner cup

2шт.

9

358756R1

BUSHING

actuating toggle, cub tractors w/serial no. 173601 and above, all cub lo-boy tractors

1шт.

10

ST2049

TAPERED BEARING,1.3755" ID x 2.718" OD x 0.7953"

BEARING ASSY, differential cone

2шт.

11

350799R1

PIN

DOWEL, transmission case to rear axle housing

2шт.

12

351236R98

1шт.

CASE ASSY, transmission composed of (1) bearing 357931R91, (1) bushing, 358756R1, (1) case 543597R1 (NSS), (3) cork 104938, (1) dowel 258917R1, (6) dowel 350799R1, (1) dowel 357215R1, (2) plug 172528, (1) plug 172530, (1) plug 172557, (1) plug 438159, (1) plug 444575, (1) plug 444592-

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto. Hex Socket

1шт.

438159

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, 1/2-14 auto. sq-hd pipe

1шт.

444592

PLUG,Sq Hd, 1/4"-14 NPTF

3/4-14 auto. sq-hd pipe

1шт.

13

172528

PLUG,Exp, 9/16"

9/16 diameter expansion, gear shift rod hole

2шт.

14

350799R1

PIN

DOWEL, transmission case to clutch housing

2шт.

15

172557

PLUG

1-3/16 diameter expansion, reverse idler gear shaft

1шт.

16

172530

PLUG,Exp, 11/16"

11/16 diameter expansion, power take-off shifter shaft bearing

1шт.

17

CASE, differential, not serviced separately, order case assy, 350785R92

1шт.

104100

RIVET,But Hd, 5/16" x 1 1/8"

5/16 x 1-1/8 rd-hd

8шт.

18

350788R1

PIN

differential pinion shaft lock

1шт.

19

350787R1

PINION

GEAR, differential drive, 46 teeth

1шт.

20

350785R92

CASE

ASSY, differential composed of (1) case 350786R2 (NSS), (1) gear 350787R1, (1) pin 350788R1, (8) rivet 104100-

1шт.

21

350836R1

PLATE, transmission case rear cover, not used on tractors equipped w/belt pulley and pto

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

7шт.

22

350837R2

GASKET

transmission case rear cover plate, not used on tractors equipped w/belt pulley and pto

1шт.

23

350791R1

GEAR

differential side, 16 teeth

2шт.

24

350790R1

PINION

differential, 10 teeth

2шт.

25

350789R1

SHAFT

differential pinion

1шт.

26

350799R1

PIN

DOWEL, transmission case to differential shaft housing

2шт.
