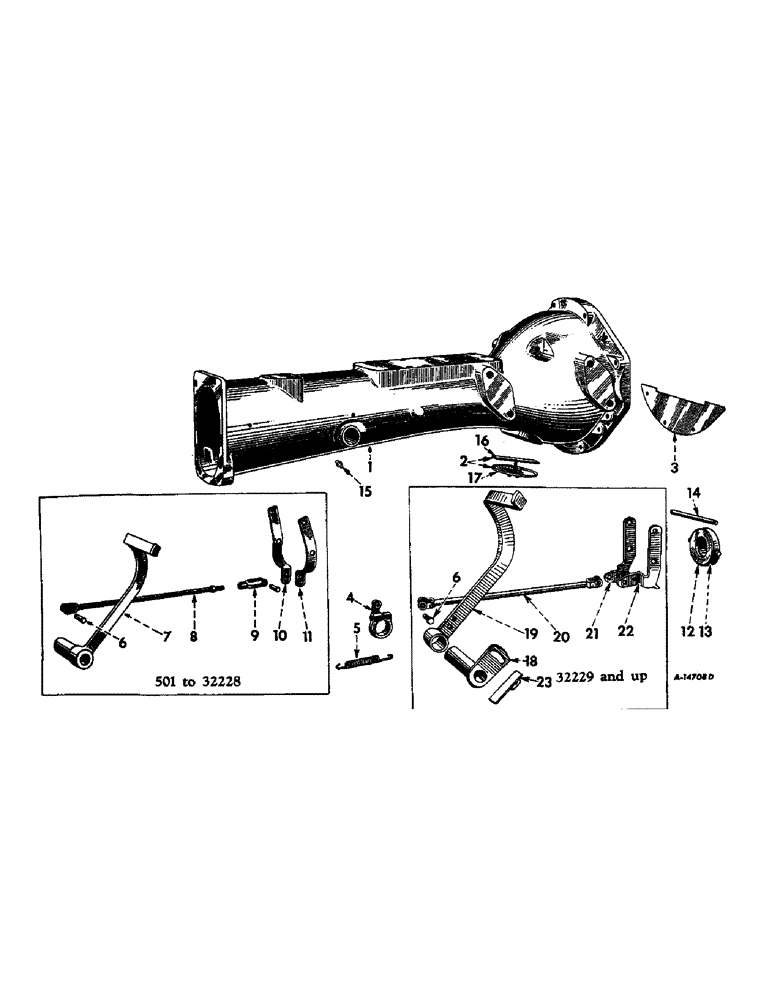

Запчасти Case IH FARMALL CUB (07-03) - DRIVE TRAIN, CLUTCH HOUSING, CONTROLS AND CONNECTIONS (04) - Drive Train

1

351686R3

HOUSING, clutch

1шт.

271500

SOCKET

7/16-14 hex.

4шт.

179866

BOLT,Hex, 7/16" - 14 x 2", Gr 5

2шт.

179869

BOLT,Hex, 7/16" - 14 x 2 3/4", Gr 5

4шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, 1/2-13 x 1-3/8 hex-hd cap, not used on Farmall cub tractors equipped with fast-hitch

2шт.

179888

LEVER

SCREW, 1/2-13 x 1-7/8 hex-hd cap

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.

2

351486R11

WASHER

COVER W/NUT, 103127, clutch housing hand hole, order bar 57578DX, cover, 351486R1 & nut, 103127, cub tractors w/serial no 13753 & below

1шт.

3

351485R2

SUPPORT

COVER, clutch housing

1шт.

109084

NUT,1/4"-20, G5

4шт.

179800

BOLT,Hex, 1/4" - 20 x 1 3/8", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

4

350963R1

LEVER, clutch pedal

1шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

SCREW, 3/8-16 x 1-5/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

5

350951R1

VALVE SPRING

SPRING, clutch pedal return

1шт.

6

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end, clutch rod operating yoke

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

7

350949R11

PEDAL ASSY, clutch, cub tractors w/serial no. 32228 and below

1шт.

8

350955R11

ROD, clutch operating, cub tractors w/serial no. 32228 and below

1шт.

103026

NUT,3/8"-24, G5

1шт.

9

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE, adjustable clutch operating rod, cub tractors w/serial no. 32228 and below

1шт.

10

350923R1

YOKE, clutch release left side, cub tractors w/serial no. 32228 and below

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

1шт.

181312

BOLT,Hex, 1/4" - 28 x 11/16", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

11

350924R1

YOKE, clutch release right side, cub tractors w/serial no. 32228 and below

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Taper, Straight 1/4"-28 NPT x .54" lg

1шт.

13

350921R11

BALL BEARING,32.54mm ID x 60.22mm OD x 26.99mm W

BEARING AND RETAINER W/FITTING, 109454, clutch release

1шт.

14

350948R1

AXLE PIN

PIN, clutch release yoke pivot

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

15

66584D

FITTING

3/16 str dirve type lub, cub tractors w/serial no. 200153 and above, cub lo-boy tractors w/serial no. 5630 and above

1шт.

16

57578DX

STRAP

BAR ASSY, clutch housing hand hole cover, cub tractors w/serial no. 13754 and above, all cub lo-boy tractors

1шт.

129-409

WING NUT,1/4"-20

NUT, WING, , Type A, Optional with 376137R1 1/4"-20

1шт.

376137R1

WING NUT

NUT, 1/4-20 wing, optional with 103127

1шт.

17

351486R1

COVER ASSY

COVER, clutch housing hand hole, cub tractors w/serial no. 13754 and above, all cub lo-boy tractors

1шт.

18

353236R11

PLATE ASSY, clutch adjusting, cub tractors w/serial no. 32229 and above, all cub lo-boy tractors

1шт.

181395

BOLT,Hex, 7/16" - 20 x 1", Gr 5

SCREW, 7/16-20 x 1 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

615062R1

WASHER

15/32 x 7/8 x 11 ga

2шт.

19

353234R11

PEDAL ASSY, clutch, cub tractors w/serial no. 32229 and above, all cub lo-boy tractors

1шт.

20

353238R11

ROD

ASSY, clutch operating, cub tractors w/serial no. 32229 and above, all cub lo-boy tractors

1шт.

21

353239R2

SIDE ASSY.

YOKE, clutch release left side, cub tractors w/serial no. 32229 and above, all cub lo-boy tractors

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

1шт.

181313

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

SCREW, 1/4-28 x 3/4 hex-hd cap

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

22

353240R2

SIDE ASSY.

YOKE, clutch release right side, cub tractors w/serial no. 32229 and above, all cub lo-boy tractors

1шт.

23

547141R1

SPRING

actuating, tractors with neutral starting switch

1шт.
