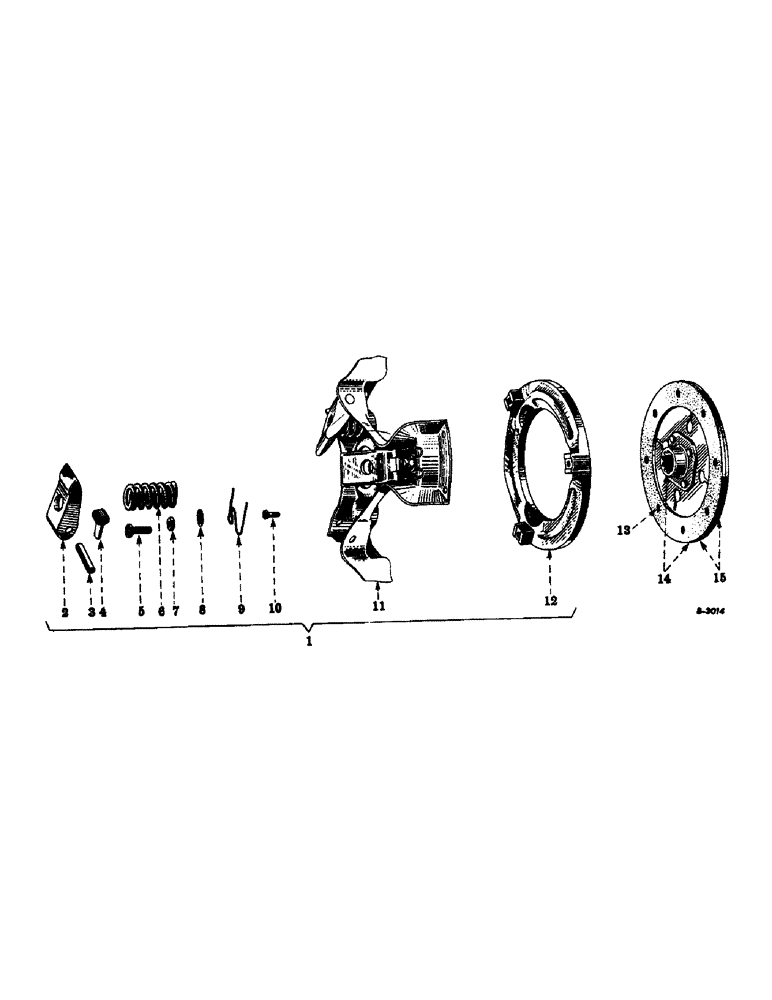

Запчасти Case IH FARMALL CUB (07-01) - DRIVE TRAIN, CLUTCH, AUBURN (04) - Drive Train

1

350939R91

PLATE

1шт.

PLATE ASSY, clutch pressure, order plate assy, 351760R91, composed of (1) bracket 351897R1, (3) lever 354074R1, (3) nut 114492, (3) pin 351902R1, (1) plate 351902R1, (3) screw 351965R1, (3) spring 351898R1, (3) spring 351903R1, (3) spring 351904R1, (3) washer 103339

1шт.

1

351760R91R

REMAN-CLUTCH PLATE

Reman for New PN 350939R91

1шт.

1

351760R91C

CORE-CLUTCH PLATE

Return Number

1шт.

2

354074R1

LEVER

clutch, will work for 351901R1

3шт.

3

351902R1

PIN, clutch lever

3шт.

4

351904R1

SPRING, clutch lever

3шт.

5

351965R1

SPRING, adjusting

3шт.

6

351903R1

SPRING

clutch lever pressure

3шт.

7

114492

JAM NUT,Jam, 1/4"-28, G5

1/4-28 hex. jam

3шт.

8

95-11028

WASHER,1/4"

9/32 x 5/8 x .065, adjusting screw

3шт.

9

351898R1

SPRING, clutch return

3шт.

10

359440R1

BOLT,Hex, 5/16" - 18 x 1"

SCREW, clutch to flywheel cap, will work for 2049Y

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

351897R1

BRACKET, clutch

1шт.

12

351896R1

PLATE, clutch pressure

1шт.

13

28754D

RIVET, clutch facing

10шт.

14

350940R91

PLATE

DISC ASSY, clutch driven, order disc assy, 351773R91

1шт.

15

351469R92

HOLDER

FACING SET, clutch, consists of two facings and ten rivets, 103384H

1шт.
