Запчасти Case IH FARMALL CUB (12-27) - POWER, C-60 ENGINE, DISTRIBUTOR, PRESTOLITE Power

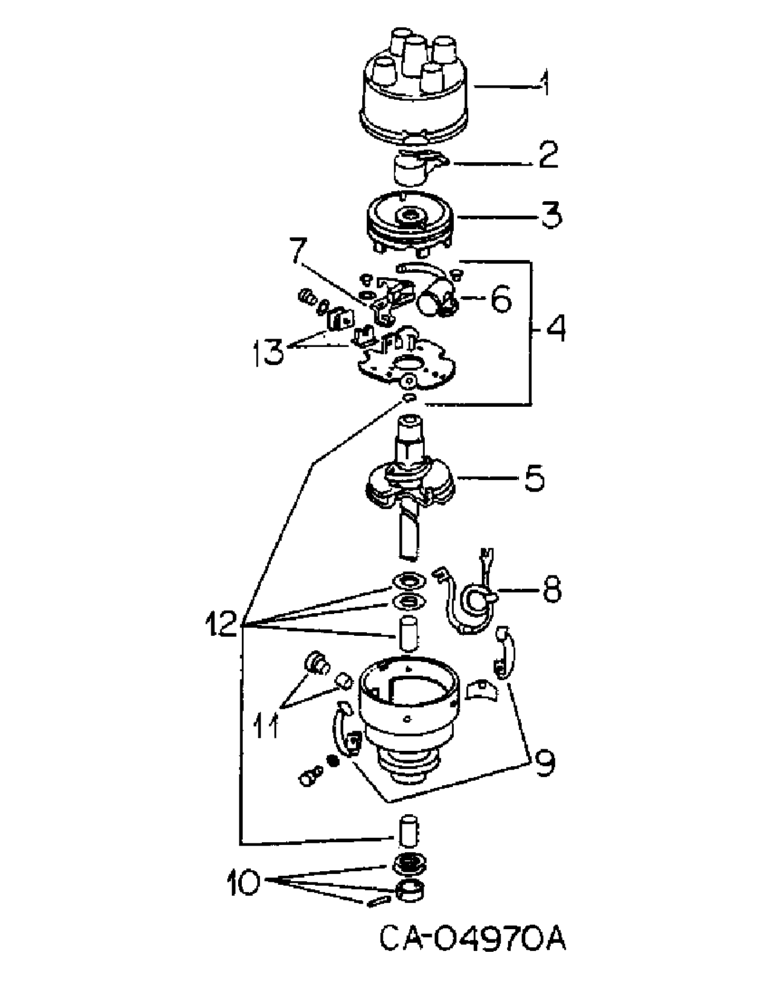

Схема запчастей Case IH FARMALL CUB - (12-27) - POWER, C-60 ENGINE, DISTRIBUTOR, PRESTOLITE Power
4
3
10
8
5
9
12
1
13
2
11
6
7

Артикул

Название

Примечание

Количество

107573C91

DISTRIBUTOR

ASSY

1шт.

1

71907C1

CYLINDER END CAP

CAP, distributor

1шт.

2

71908C1

ROTOR

distributor

1шт.

3

531449R1

COVER

ASSY, dust

1шт.

4

531453R92

PLATE

ASSY, breaker, composed of ref nos 6, 7 and 13

1шт.

5

64858C1

SHAFT ASSY, weight spring and cam

1шт.

6

531455R1

PACKAGE

condensor

1шт.

7

531456R1

SET

PACKAGE, contact breaker

1шт.

8

531445R1

CABLE

LEAD ASSY, primary

1шт.

9

531446R91

PACKAGE, cap clamp spring and hinge

1шт.

10

531461R91

KIT

PACKAGE, drive gear

1шт.

10

531461R91GV

DRIVING GEAR

Value, Drive Gear Package

1шт.

11

20304R1

CUP, oil

1шт.

12

531459R91

BEARING

PACKAGE, shaft bearing

1шт.

13

539933R1

KIT

PACKAGE, clip and insulator

1шт.

Выбрано товаров: 15
