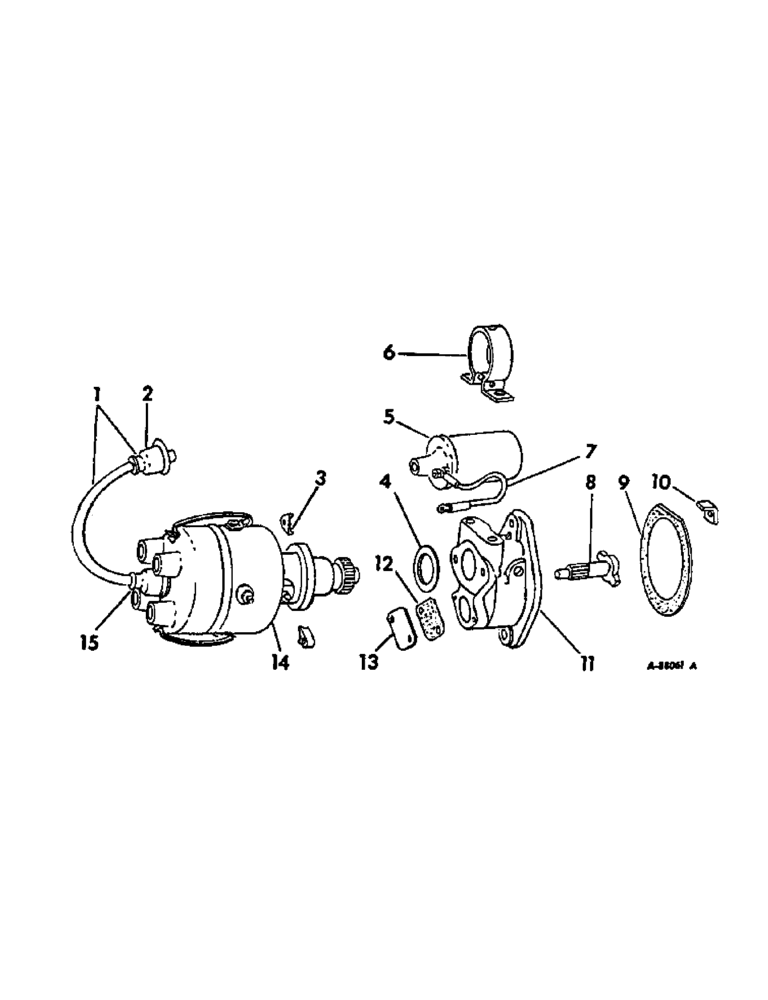

Запчасти Case IH FARMALL CUB (12-26) - POWER, C-60 ENGINE, BATTERY IGNITION UNIT Power

1

356686R92

CABLE

ASSY, coil to distributor, will work for 49125D, used w/coil 353874R91 AND 353875R91

1шт.

1

373167R91

CABLE

coil to distributor w/nipples, used w/coil package, 396546R93 and 396547R93, engine serial no. 302977 and below

1шт.

1

CABLE, coil to distributor w/nipples, part of package, 70217C91, engine serial no. 302978 and above

1шт.

2

251553R1

BOOT

NIPPLE, ignition coil, used w/coil 353874R91 and 353875R91

1шт.

2

372875R1

NIPPLE, LUBE

NIPPLE, ignition coil, used w/coil package 396546R93 and 396547R93, engine serial no. 302977 and below

1шт.

3

353937R1

CLIP

CLAMP, distributor

2шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16-18 x 1 c-z hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

353936R2

GASKET

distributor

1шт.

5

396546R93

KIT

1шт.

5

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

PACKAGE, ignition coil service, will work for 353874R91, Farmall and International cub w/serial no. 501 to 224400 and International cub lo-boy w/serial no. 501 to 18700, consists of (1) screw 177056, (2) washer 120217, (2) nut 120614

1шт.

5

396547R93

PACKAGE

1шт.

5

396547R93GV

COIL

Value, Ignition Coil Assy.

1шт.

PACKAGE, ignition coil service, will work for 353875R91, Farmall and International cub w/serial no. 224401 and above and International cub lo-boy w/serial no. 18701 and above, consists of (1) coil 395331R92 (NSS), (1) clamp 396328R1, (1) screw 177056 (2) washer 120217, (2) nut 120614, (1) nipple 372875R1

1шт.

6

396328R1

CLAMP

ignition coil, will work for 353889R1

1шт.

177056

HUB

SCREW, 10-32 x 1-1/2 c-z slt-rd-hd mach

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 c-z slt-rd-hd mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga c-z

2шт.

7

357929R92

ELECTRIC CABLE

CABLE ASSY, coil to disributor primary

1шт.

8

353934R11

SHAFT

ASSY, distributor drive

1шт.

9

46168DB

GASKET

distributor drive housing

1шт.

10

(Not used in this application)

1шт.

11

353933R11

HOUSING ASSY, distributor drive, without hole for tachometer drive, order package 363749R91

1шт.

11

363749R91

HOUSING

PACKAGE, distributor drive housing and cover service, replaces 353933R11, consists of (1) cover 363764R1, (1) gasket 363765R1, (1) housing 363763R11 (NSS), (2) screw 435429, (2) washer 120717

1шт.

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , C-Z Slotted, Headless, 1/8" NPT

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, 3/8-16 x 1-1/8 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

12

363765R1

GASKET

distributor drive housing hole cover

1шт.

13

363764R1

COVER

distributor drive housing hole

1шт.

435429

SCREW, 10-32 x 9/16 c-z slt-rd-hd Slotted Rd Hd, #10-32 x 9/16"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

14

DISTRIBUTOR ASSEMBLY, for components see list of parts under details of distributor

1шт.

15

251553R1

BOOT

NIPPLE, distributor cap terminal, engine serial no. 302977 and below

1шт.

353940R2

BRACKET, battery ignition coil

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16-18 x 1/2 c-z slt-rd-hd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120393

BEARING WASHER,5/16", SAE

WASHER, 11/32 x 11/16 x 16 ga c-z

3шт.

120376

NUT,5/16"-18, G5

4шт.
