Запчасти Case IH FARMALL CUB (12-19[1]) - POWER, C-60 ENGINE, OIL PUMP AND RELATED PARTS Power

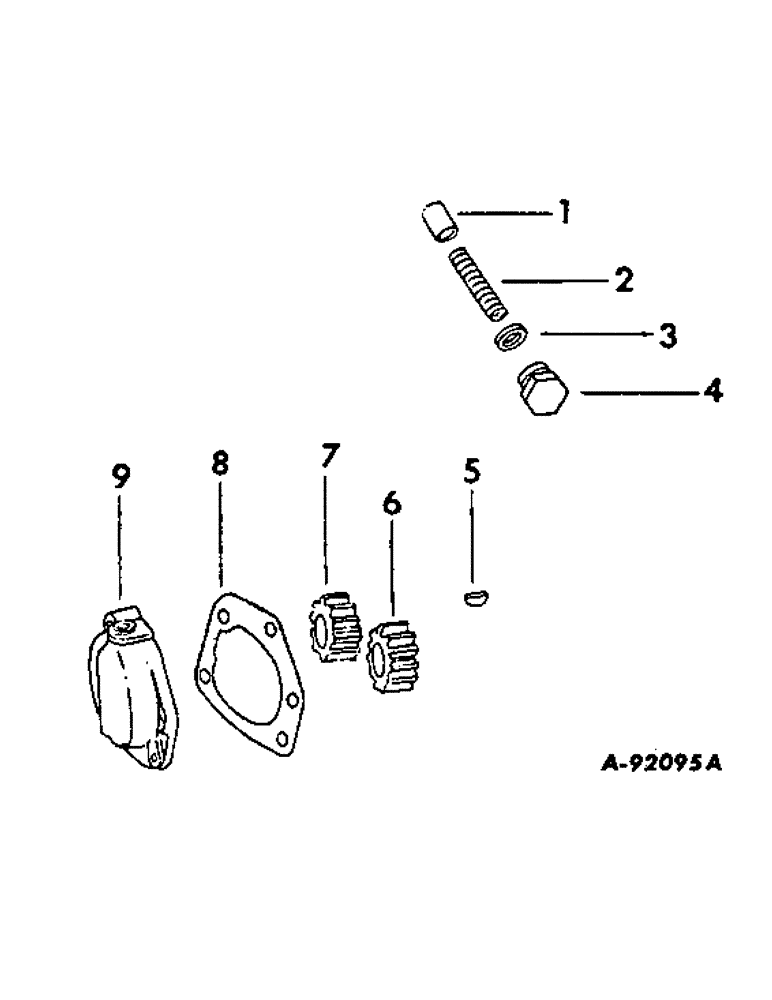

Схема запчастей Case IH FARMALL CUB - (12-19[1]) - POWER, C-60 ENGINE, OIL PUMP AND RELATED PARTS Power
1
9
3
2
7
8
4
6
5

Артикул

Название

Примечание

Количество

1

251400R1

VALVE

oil pressure regulating

1шт.

2

251401R1

VALVE SPRING

SPRING, oil pressure regulating valve

1шт.

3

251403R1

GASKET

oil pressure regulating valve plug

1шт.

4

251402R1

PLUG

oil pressure regulating valve

1шт.

5

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Pump drive gear #6, 5/32" x 5/8", HT

1шт.

6

251396R1

PINION

GEAR, oil pump drive, 13T

1шт.

7

251397R1

PINION

GEAR, oil pump idler, 13 T

1шт.

8

251399R1

GASKET

oil pump body

1шт.

9

251398R1

PUMP

BODY, oil pump

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

Выбрано товаров: 12
