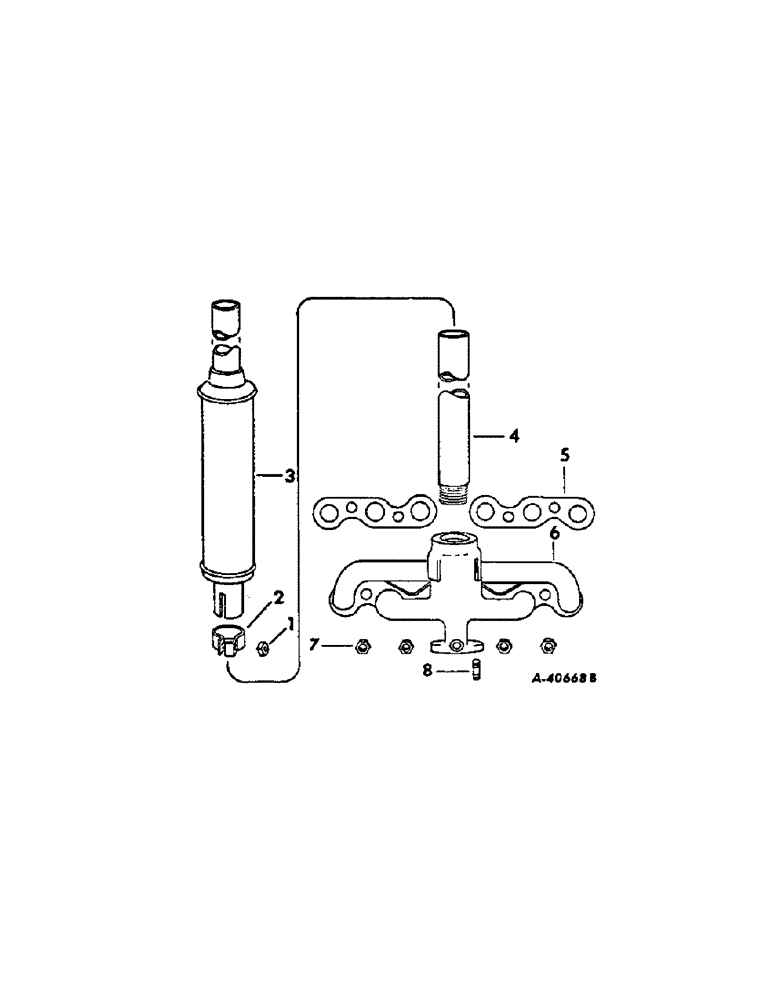

Запчасти Case IH FARMALL CUB (12-17) - POWER, C-60 ENGINE, VERTICAL EXHAUST SYSTEM Power

385085R91

PARTS ACCESSORY, exhaust muffler, consists of ref nos. 1, 2, 3, 4 and hood, 385086R91, cub serial no. 222501 and above, cub lo-boy serial no. 17201 and above

1шт.

1

93082H

NUT

exhaust muffler clamp

1шт.

2

351437R1

COLLAR CLAMP

CLAMP, exhaust muffler

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

3

351436R92

MUFFLER

exhaust, will work for 356003R91

1шт.

4

350960R1

PIPE CLAMP

PIPE, exhaust

1шт.

5

251233R1

GASKET

exhaust and intake manifold

2шт.

6

251232R1

MANIFOLD

exhaust and intake, order manifold, 405023R2 reducer, 21116R1 and exhaust cap, 321573R91, engine serial no. 312389 and below

1шт.

6

405023R2

MANIFOLD

exhaust and intake, replaces 251232R1, engine serial no. 312390 and above

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 znd auto. sq-hd pipe

1шт.

7

251176R1

NUT

exhaust and intake manifold stud

4шт.

8

251236R1

STUD

carburetor, order screw 179796

2шт.

8

179796

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1/4-20 X 7/8 hex-hd cap

2шт.

265927R91

CAP

ASSY, exhaust

1шт.
