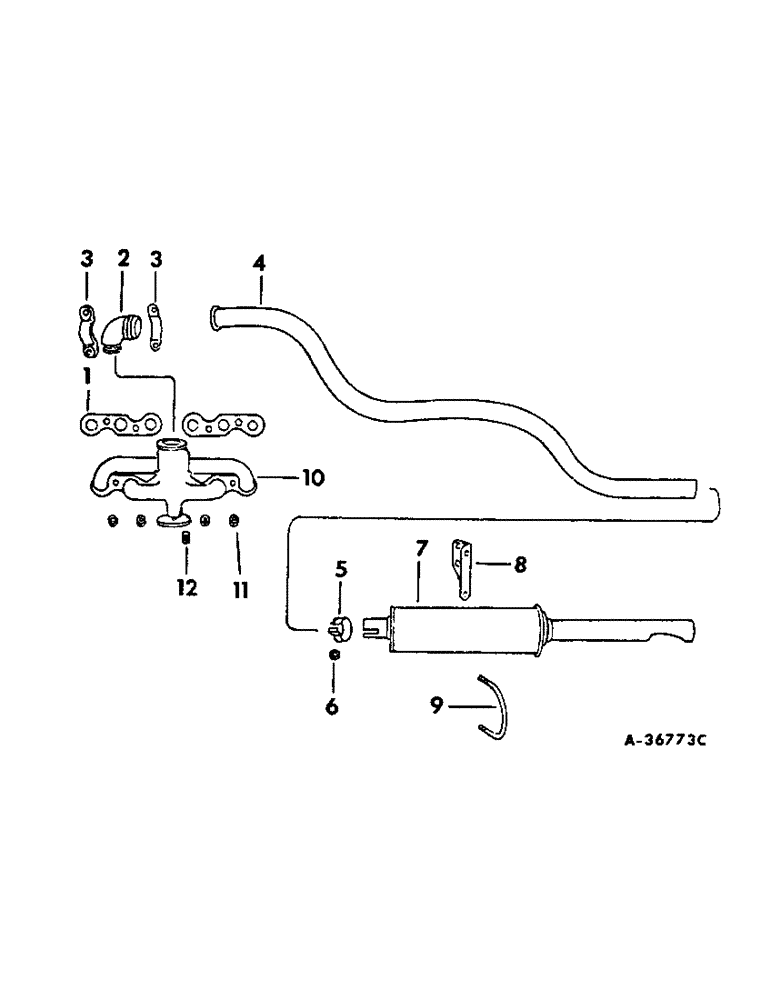

Запчасти Case IH FARMALL CUB (12-16) - POWER, C-60 ENGINE, UNDERSLUNG EXHAUST SYSTEM Power

1

251233R1

GASKET

exhaust and intake manifold

2шт.

2

362359R1

ELBOW UNION

ELBOW, exhaust pipe

1шт.

21116R1

ADAPTER,1 1/4" NPT Male x 1" NPT Fem

REDUCER, 1-1/4 to 1 in. pipe

1шт.

3

362361R1

CLAMP

exhaust manifold

2шт.

425-115

NUT,5/16"-24, G5

5/16-24 hex.

2шт.

181345

BOLT,Hex, 5/16" - 24 x 1 3/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

362360R1

PIPE, EXHAUST SYSTEM

PIPE, exhaust, cub tractors w/serial no. 248124 and below

1шт.

4

107139C1

TUBE

PIPE, exhaust, cub tractors w/serial no. 248125 and above

1шт.

5

351437R1

COLLAR CLAMP

CLAMP, exhaust muffler

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8-24 x 1-1/2 hex-hd cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

6

92082H

NUT, exhaust muffler clamp

1шт.

7

363116R91

MUFFLER

exhaust

1шт.

8

362362R1

SUPPORT

BRACKET, muffler support

1шт.

9

362363R1

BOLT,1/4" - 28 x 3 1/2", Carbon Steel

U-BOLT, muffler

1шт.

25-114

NUT,1/4"-28, G5

1/4-28 hex.

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

251232R1

MANIFOLD

exhaust and intake, engine serial no. 312389 & below, order manifold, 405023R2 and reducer 21116R1

1шт.

10

405023R2

MANIFOLD

exhaust and intake, replaces 251222R1, engine serial no. 321390 and above

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto. sq-hd pipe

1шт.

11

251176R1

NUT

exhaust and intake manifold stud

4шт.

12

251236R1

STUD

carburetor, order screw 179796

2шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8 hex-hd cap

2шт.
