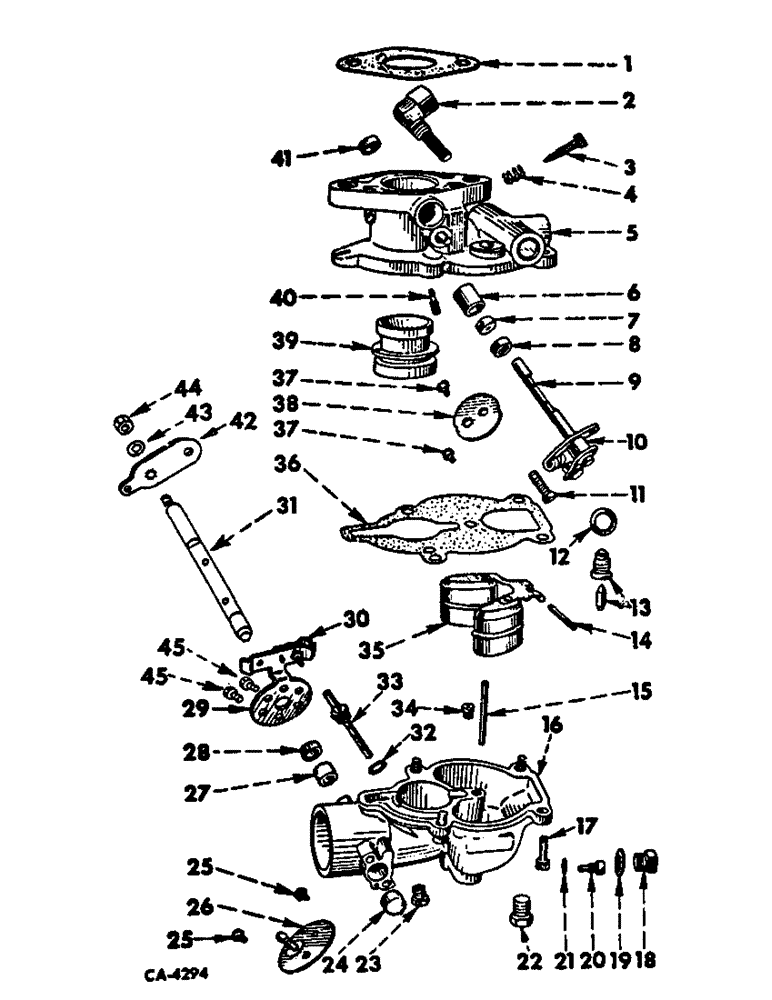

Запчасти Case IH FARMALL CUB (12-14) - POWER, C-60 ENGINE, CARBURETOR, CUB TRACTORS W/ENGINE SERIAL NOS. 312390 AND ABOVE Power

71523C92

CARBURETOR

ASSY

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

SCREW, 1-4/20 x 7/8 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

1

251235R1

GASKET,1.59mm Thk

carburetor, not included with carburetor assy

1шт.

2

53796D

ELBOW

AND STRAINER ASSY

1шт.

3

13873D

NEEDLE

NEEDLE, idle adjusting screw

1шт.

4

12472D

SPRING

idle adjusting needle valve screw

1шт.

5

BODY, not serviced separately

1шт.

6

368360R1

BUSHING

throttle shaft

2шт.

7

368358R2

RUBBER SEAL

throttle shaft

1шт.

8

376139R1

RETAINER

throttle shaft seal

1шт.

9

71311C1

SHAFT

LEVER AND SHAFT W/SCREW ASSY, throttle lever

1шт.

10

135645H

PIN, throttle lever taper

1шт.

11

19509R1

SCREW, 8-36 x 5/8 c-z slt-hex-hd mach, throttle stop

1шт.

12

53792D

WASHER

fuel valve seat

1шт.

13

73238C1

VALVE

AND SEAT ASSY, fuel

1шт.

14

35514D

AXLE, float

1шт.

15

TUBE, not serviced separately

1шт.

16

BOWL, not serviced separately

1шт.

17

19270R91

SCREW W/WASHER, 10-32 x 5/8 znd slt-fil head mach, Serial Range: bowl-body

4шт.

18

31860D

PLUG

lower, main jet passage

1шт.

19

12433D

WASHER

main passage plug

1шт.

20

55594D

JET, main, replaces 62177D

1шт.

21

12435D

SEALING WASHER

WASHER, main jet

1шт.

22

217-402

PLUG,Hex Hd, 1/8" - 27 NPT

1/8-27 auto. hex-hd pipe drain

1шт.

23

384327R91

FILTER

ASSY, drip plug

1шт.

24

377798R1

PLUG

choke shaft hole

1шт.

25

454415

SCREW ASSY, choke valve plate

2шт.

26

368355R91

SHUTTER

PLATE ASSY, choke valve

1шт.

27

21210D

WASHER

choke shaft packing

1шт.

28

42191D

RETAINER

choke shaft packing

1шт.

29

369885R91

BRACKET ASSY, choke valve

1шт.

30

369886R1

CLAMP

choke valve bracket

1шт.

19404R1

NUT, 8-36 c-z sq mach screw

1шт.

19403R1

SCREW, 8-36 x 1/2 c-z slt-hex-hd mach

1шт.

31

71310C1

SHAFT

choke

1шт.

32

WASHER, discharge jet fibre, not services separately, part of gasket package, 368357R91

1шт.

33

368354R91

JET

ASSY, discharge

1шт.

34

97465H

JET, well vent, replaces 64033D

1шт.

35

53783D

FLOAT

ASSY

1шт.

36

368362R1

GASKET

, Serial Range: bowl-body

1шт.

368362R1 is for the early version of this carburator. Later version carburator has a gasket that is a 1/2 inch longer and a hole at the pointed end. The later version of the carburator was never used in production it was sold through parts only. CASE has never released a part number for the new style gasket.

1шт.

37

454415

SCREW ASSY, throttle valve plate

2шт.

38

PLATE, throttle valve, not services separately

1шт.

39

368350R1

VENTURI

1шт.

40

384863R1

JET

idling, replaces 68550C1

1шт.

41

53797D

PLUG

throttle shaft hole

1шт.

42

71309C1

LEVER

choke shaft

1шт.

43

115707

LOCK WASHER,#10

Washer, Lock, #10

1шт.

44

426915

RETAINER

NUT, choke shaft lever

1шт.

45

455381

SCREW, 8-32 x 5/8 slt-fil-hd mach

2шт.

A48388

KIT

PACKAGE, carburetor repair, includes ref nos. 1, 3, 7, 8, 14, 27, 28 and 41

1шт.

368357R91

GASKET KIT

PACKAGE, carburetor gasket, includes ref nos. 12, 19, 21, 32 and 36

1шт.

1960013C1

SPRING

connects to #42 and #29

1шт.
