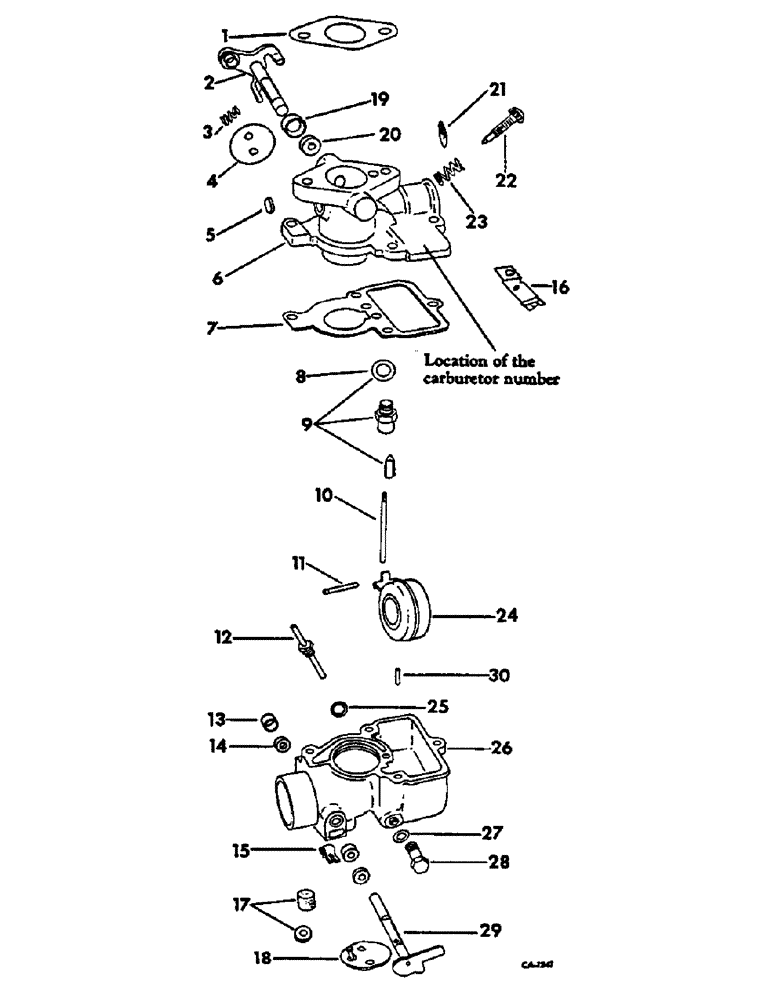

Запчасти Case IH FARMALL CUB (12-12) - POWER, C-60 ENGINE, CARBURETOR, CUB TRACTORS W/ENGINE SERIAL NO. 312389 AND BELOW Power

251234R94

CARBURETOR

ASSY, 3/4 updraft, Farmall cub, order carburetor assy, 63349C91

1шт.

364579R91

CARBURETOR ASSY, 3/4 updraft, International cub and cub lo-boy tractors, order carburetor assy, 63349C91

1шт.

63349C91

CARBURETOR

ASSY, 3/4 updraft

1шт.

1

251235R1

GASKET,1.59mm Thk

carburetor

1шт.

2

351845R11

LEVER ASSY.

LEVER AND SHAFT ASSY, throttle

1шт.

3

251289R1

SPRING, idle set screw retainer

1шт.

4

251290R1

BUTTERFLY, throttle

1шт.

147754

SCREW, 5-40 x 1/4 c-z slt-rd-hd mach

2шт.

5

37417D

PLUG, throttle body expansion

1шт.

6

351874R91

BODY

ASSY, throttle, used w/carburetor assembly, 251234R94 and 364579R91

1шт.

6

355713R92

BODY ASSY, throttle, used w/carburetor assembly 63349C91

1шт.

131899

SCREW, 6-32 x 1/2 c-z slt-fil-hd mach Slotted Fil Hd, #6-32 x 1/2"

1шт.

26668R1

SCREW, 10-24 x 9/16 slt-hex-hd mach

4шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

7

251337R3

GASKET

fuel bowl

1шт.

8

25948D

GASKET

float needle valve cage

1шт.

9

251300R21

JET

CAGE ASSY, float needle valve

1шт.

10

251331R1

TUBE,1.656, 0.125" Length

idle

1шт.

11

251299R1

PIN

PIVOT, float lever

1шт.

12

352138R31

NOZZLE INJECTION

NOZZLE, discharge, will work for 251332R11, used with carburetor assembly, 251334R94

1шт.

12

355717R11

NOZZLE INJECTION

NOZZLE ASSY, discharge, used with carburetor assembly 364579R91 and 63349C91

1шт.

13

251306R1

RETAINER, choke valve shaft dust seal, used with carburetor assembly, 251234R91

2шт.

13

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, starting shutter shaft dust, 2 used with carburetor assembly, 251234R92 thru 251234R92R94, 364579R91, 2 used w/carburetor 63349C91

1шт.

14

251305R1

SEAL, butterfly shaft dust, used with carburetor assembly 251234R91

2шт.

14

45149DA

SEAL

butterfly shaft dust, 2 used with carburetor assembly 251234R92 thru 251234R94, 364579R91, 2 used w/carburetor 63349C91

1шт.

15

251308R1

SPRING, starting shutter friction

1шт.

16

(Not used in this application)

1шт.

17

354263R91

STRIPPER PACKAGE

PACKAGE, drip hole filler replacement

1шт.

18

251312R11

SHUTTER ASSY, starting

1шт.

132622

SCREW, 4-40 x 3/16 slt-rd-hd c-z Slotted Rd Hd, #4-40 x 3/16"

2шт.

19

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, butterfly shaft dust seal

2шт.

20

45149DA

SEAL

starting shutter shaft dust

2шт.

21

251294R1

SCREEN

strainer

1шт.

22

351958R1

ADJUSTMENT SCREW

idle adjusting

1шт.

23

351959R1

SPRING

idle adjusting screw retainer

1шт.

24

251293R91

LEVER

FLOAT AND LEVER ASSY

1шт.

25

47401D

GASKET

discharge nozzle

1шт.

26

352593R93

BOWL ASSY, fuel, will word for 251336R21, used with carburetor assembly, 251234R91, composed of (1) bowl 251336R32, (1) gasket 47401D, (1) shaft 352562R12

1шт.

26

251336R32

BOWL ASSY, fuel, used with carburetor assembly, 251234R92 thru 251234R94, composed of (1) bleed 324516R1, (1) bowl (NSS), (1) filler, (NSS), (1) plug (NSS), (2) retainer 45148D, (2) seal 45149DA

1шт.

26

364611R91

BOWL ASSY, fuel, used w/carburetor assembly, 364579R91, composed of (1) bleed 364761R1, (1) bowl (NSS), (1) filler (NSS), (1) plug (NSS), (2) retainer 45148D, (2) seal 45149DA

1шт.

26

352065R21

BOWL ASSY, fuel, used w/carburetor 63349C91, composed of (1) bleed 353575R1, (1) bowl (NSS), (1) filler (NSS), (1) plug (NSS), (2) retainer 45148D, (2) seal 45149DA

1шт.

444571

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG, 1/8-27 auto. sq-hd pipe

1шт.

27

47401D

GASKET

main metering jet

1шт.

28

354192R91

JET

main metering, will work for 351804R1, Farmall cub engine serial no., Serial Range: 501-172438

1шт.

28

359551R91

JET

main metering, Farmall cub engine serial no., Serial Range: 172439-196899

1шт.

28

364610R91

JET

ASSY, main metering, used w/carburetor assembly, 364579R91

1шт.

28

404945R1

JET

ASSY, main metering, used w/carburetor assembly, 63349C91

1шт.

29

251309R12

LEVER

SHAFT, choke valve, used with carburetor assembly, 251234R91

1шт.

29

352562R12

LEVER

SHAFT, choke valve, used with carburetor assembly, 251234R92 thru 251234R94, 364579R91 and 63349C91

1шт.

30

352442R1

BLEED, main air, used with carburetor assembly, 251234R91 thru 251234R92

1шт.

30

354516R1

BLEED, main air, used with carburetor assembly, 251234R93 and 251234R94

1шт.

30

364761R1

BLEED, main air, used w/carburetor assembly, 364579R91 and 63349C91

1шт.

352070R1

TUBE, discharge

1шт.

354454R92

PACKAGE,SERVICE

PACKAGE, carburetor overhaul, for components see list of parts under details of service packages

1шт.
