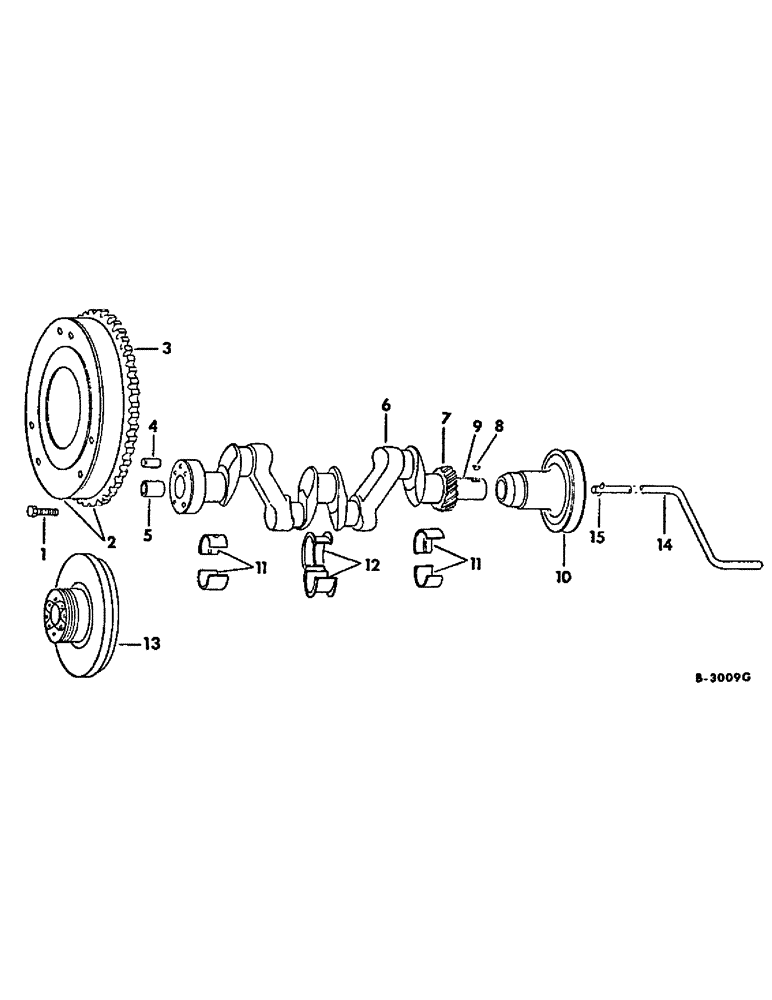

Запчасти Case IH FARMALL CUB (12-10) - POWER, C-60 ENGINE, CRANKSHAFT AND RELATED PARTS Power

1

358246R1

BOLT (SPREADER),Wheel, 3/8" - 24 x 1 1/4"

BOLT, 3/8-24 x 1-1/4 type 4 flywheel

4шт.

2

251271R12

FLYWHEEL W/RING GEAR

1шт.

3

251270R2

GEAR WHEEL

GEAR, flywheel ring, 84 T

1шт.

4

24550D

PIN

flywheel dowel

1шт.

5

251266R1

BUSHING,15.93mm ID x 20.69mm OD x 27.1mm L

BUSHING, clutch pilot

1шт.

6

353743R93

CRANK

1шт.

CRANKSHAFT W/BEARING, std, used w/connecting rods, 251246R13, engine serial no. 261717 and below, when ordering replacement connecting rods for crankshaft, 353743R93, order connecting rod, 527457R11 and appropriate bearings, bearings received with crankshaft 353743R93 will not work with connecting rod 527457R11, consists of (4) bearing 251248R21, (1) bearing 357216R91, (2) bearing 357219R91, (1) bushing 251266R1, (1) crankshaft (NSS), (1) dowel 24550D

1шт.

6

527821R92

CRANKSHAFT W/BEARINGS, std, used w/connecting rods, 527457R11, engine serial no. 261718 and above, composed of (1) crankshaft (NSS), (1) bushing 251266R1, (1) dowel 24550D, (2) bearing 357219R91, (1) bearing 357216R91, (4) bearing 527458R11

1шт.

7

251265R1

PINION

crankshaft, 18 T

1шт.

8

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Crankshaft pinion #6, 5/32" x 5/8", HT

1шт.

9

124546

WOODRUFF KEY,#6, 5/32" x 5/8", HT

Fan drive pulley #6, 5/32" x 5/8", HT

1шт.

10

251269R3

PULLEY

fan drive

1шт.

11

357219R91

BEARING,41.79mm ID x 45.64mm OD x 26.99mm W

ASSY, crankshaft front and rear std

2шт.

11

357258R91

BEARING SET

ASSY, crankshaft front and rear, .002 U/S

2шт.

11

376622R91

BEARING ASSY

BEARING ASSY, crankshaft front and rear, .010 U/S

2шт.

11

376629R91

BEARING ASSY

ASSY, crankshaft front and rear, .020 U/S

2шт.

11

357264R91

BEARING SET

BEARING ASSY, crankshaft front and rear, .030 U/S

2шт.

12

357216R91

BEARING LINER

BEARING ASSY, crankshaft center, std

1шт.

12

357261R91

BEARING SET

ASSY, crankshaft center, .002 U/S

1шт.

12

376625R91

BEARING ASSY

BEARING ASSY, crankshaft center, .010 U/S

1шт.

12

376632R91

JOURNAL

BEARING ASSY, crankshaft center, .020 U/S

1шт.

12

357267R91

BEARING SET

ASSY, crankshaft center, .030 U/S

1шт.

13

(Not used in this application)

1шт.

14

351010R31

CRANK

starting, w/pin, 351011R1, for tractors w/o starting and lighting system, cub tractors w/serial no. 227700 and below and cub lo-boy tractors w/serial no. 12575 and below

1шт.

15

351011R1

PIN

starting crank, used w/starting crank

1шт.
