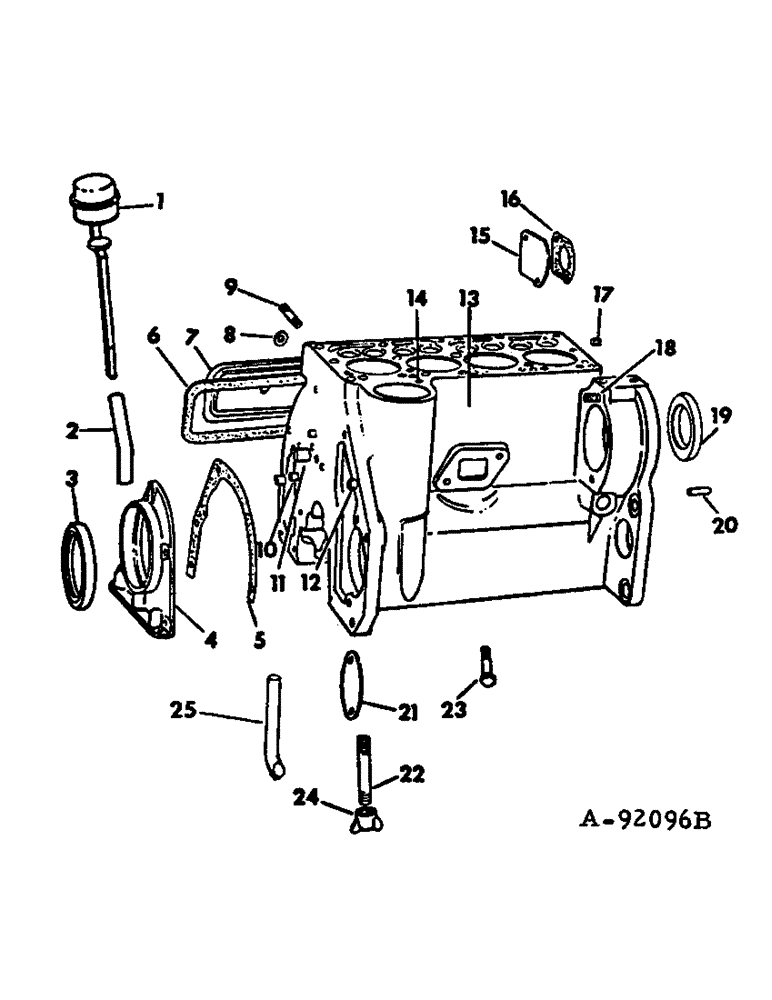

Запчасти Case IH FARMALL CUB (12-07) - POWER, C-60 ENGINE, CRANKCASE AND RELATED PARTS Power

1

251362R92

CAP

GAUGE W/BREATHER CAP, oil level, engine serial no., Serial Range: 501-210189

1шт.

1

366697R91

GAUGE ASSY.

GAUGE W/BREATHER CAP, oil level, engine serial no. 210190 and above, engine serial no., Serial Range: 501-210189

1шт.

2

251361R1

SPACER

TUBE, oil filler and breather, engine serial no. 210189 & below

1шт.

2

366696R1

TUBE

oil filler and breather, engine serial no. 210190 & above

1шт.

3

364692R91

OIL SEAL

crankshaft rear oil

1шт.

4

251363R21

RETAINER

W/SEAL, 364692R91, crankshaft rear oil seal

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

5шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

5

251364R1

GASKET,0.79mm Thk

crankshaft rear oil seal retainer

1шт.

6

251371R1

GASKET

valve tappet cover

1шт.

7

251372R1

COVER, valve tappet

1шт.

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

2шт.

8

251373R1

WASHER

valve tappet cover bolt

2шт.

9

351678R1

STUD

manifold

4шт.

10

58981D

DOWEL, oil pump body

2шт.

11

251389R1

SHAFT, oil pump idler

1шт.

12

25597D

DOWEL, clutch housing

2шт.

13

405031R92

1шт.

CRANKCASE W/PISTONS AND RINGS ASSY, composed of (6) bolt 358247R1, (1) cap 110675, (2) cap 251357R2 (NSS), (1) cap 251358R2 (NSS), (1) crankcase 251341R8 (NSS), (2) dowel 25597D, (2) dowel 58981D, (8) guide 352973R3, (1) nipple 251391R1, (1) pin 58981D, (4) pin 251241R1, (4) piston 405007R1 (NSS), (1) plug 444654, (5) plug 444687, (1) plug 444697, (8) retainer 251242R1, (4) ring 251243R1 (NSS), (4) ring 251244R1 (NSS), (4) ring 251245R1 (NSS), (1) seal 251379R91, (1) shaft 251389R1, (4) stud 351678R1, (1) s

1шт.

444697

PLUG,Hex Soc, 3/8"-18

3/8-18 auto. hex-soc pipe, oil filter drain

1шт.

14

444687

PLUG,Hex Soc, 1/8"-27

1/8-27 auto. sq-hd pipe, Crankcase oil hole

5шт.

15

351676R1

COVER, hyd lift pump opening

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

351677R1

GASKET

hyd lift pump opening cover

1шт.

17

444654

PLUG,Sq Soc, 1/4"-18 NPTF

1/4-18 auto. sq-soc pipe, crankcase oil hole

1шт.

18

24909D

STUD, magneto mounting, for tractors w/magneto ignition

1шт.

18

353946R1

STUD

mounting distributor drive housing, for tractors w/battery ignition

1шт.

19

251379R91

OIL SEAL,50.44mm ID x 82.7mm OD x 12.7mm Thk

magneto drive oil

1шт.

20

58981D

PIN, idler gear shaft locating, will work for 17847D

1шт.

21

48554D

COVER, starter pad

1шт.

179834

SCREW,Hex, 3/8" - 16 x 9/16"

3/8-16 x 9/16 hex-hd cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

2шт.

22

251391R1

NIPPLE, 3/8 x 5-7/8 pipe, oil filter drain Nipple, 3/8" NPT x 5 7/8"

1шт.

23

358247R1

BOLT, crankcase bearing cap

6шт.

24

110675

CAP,3/8" NPT

oil filter drain pipe nipple

1шт.

25

(Not used in this application)

1шт.
