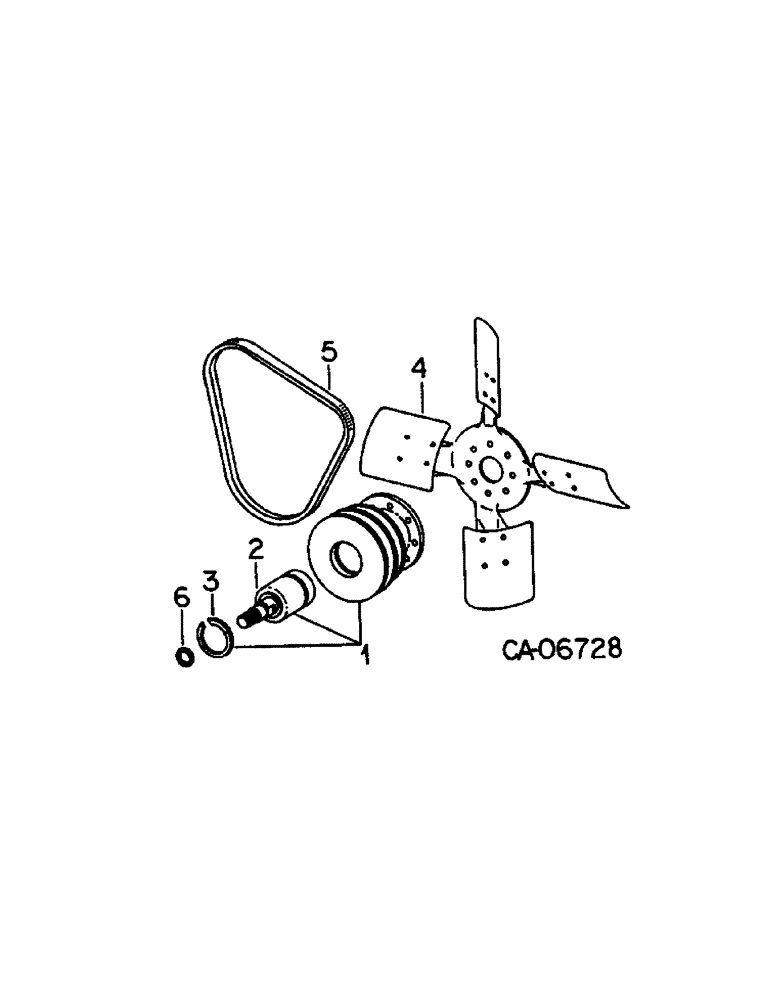

Запчасти Case IH FARMALL CUB (12-06) - POWER, C-60 ENGINE, FAN ASSY AND FAN BELT, FAN ASSY WITH CAST IRON PULLEYS Power

1

131486C91

HUB ASSY.

HUB ASSY

1шт.

2

131488C1

BEARING,0.625" ID x 1.5" OD

fan pulley and water pump

1шт.

3

160094R1

SNAP RING,1.50", Int, #150

RING, SNAP, 1.50", Int, #150

1шт.

4

351870R91

BLADE

ASSY, fan

1шт.

23794R1

SCREW

no. 12 x 5/8 znp h/hd mach

8шт.

121744

ANGLE

Washer, Lock, #12

8шт.

5

251428R1

BELT

V-BELT, Fan

1шт.

6

43293D

WASHER

fan shaft

1шт.

FOOTNOTE

1шт.

there was no thermostat on the c60 engine on cub tractor. djo 6/23/98

1шт.
