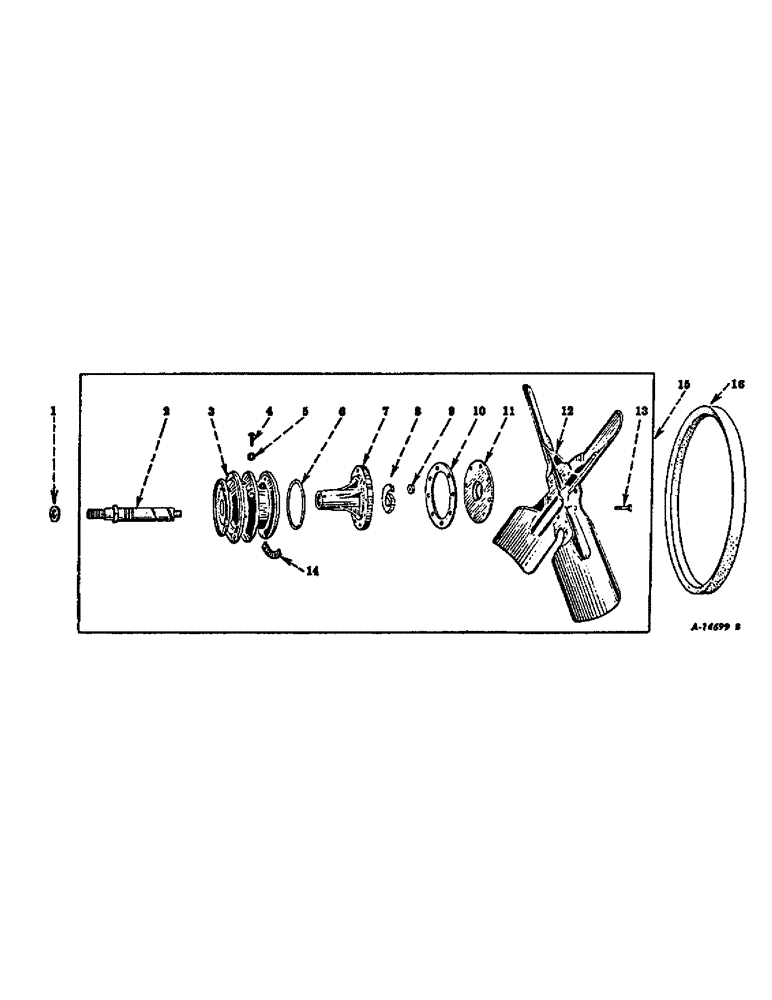

Запчасти Case IH FARMALL CUB (12-05) - POWER, C-60 ENGINE, FAN ASSY AND FAN BELT, FAN ASSY WITH SHEET METAL PULLEYS Power

1

43293D

WASHER

fan shaft

1шт.

2

SPINDLE AND BEARING ASSY, on orders for 251647R91 for Farmall cub with engine serial no. 165152 and below, furnish 131489C91, hub assy, all other machines, furnish 131486C91, hub assy

1шт.

3

HUB ASSY, cub and cub lo-boy tractors w/engine serial no. 165153 and above, on orders for 364898R91, furnish 131486C91, hub assy

1шт.

3

HUB ASSY, Farmall cub w/engine serial no. 501 to 165152, on orders for 251645R91, furnish 131489C91, hub assy

1шт.

4

1007760BS

PULLEY

oil retaining, replaces 70206D

1шт.

5

27948R1

O-RING,Rect, .25" ID x .375" OD, Cl 5

RING, 1/4 rectangular seal, replaces 70208D

1шт.

6

70207D

GASKET

fan hub

1шт.

6

360703R1

GASKET

fan hub

1шт.

7

(Not serviced separately)

1шт.

8

(Not serviced separately)

1шт.

9

9413243

LOCK NUT,3/8"-24, GB

NUT, 3/8-4 cdp P/T hex., replaces 70209D

1шт.

10

70200D

GASKET

fan bearing

1шт.

11

CAP, fan bearing, discontinued for service

1шт.

12

351870R91

BLADE

fan

1шт.

13

19-1096

PLOW BOLT,5/8" - 11 x 6", Gr 5

SCREW, 10-32 x 9/16 slt-fil-hd mach, replaces 12922R1, 3/4" in length, will have to file down, or purchase locally

8шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

8шт.

103101

CLEVIS

NUT, 10-32 sq mach screw

8шт.

14

NUT, double, discontinued for service

4шт.

15

FAN AND HUB ASSY, Farmall cub w/engine serial no. 501 to 165152, on orders for 251427R91, furnish 131489C91, hub assy and 351870R91, fan blade

1шт.

15

FAN ASSY, cub and cub lo-boy tractors w/engine serial no. 165153 and above, on orders for 358211R91, furnish 131486C91, hub assy and 351870R91 fan blade

1шт.

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

16

251428R1

BELT

V-BELT, Fan

1шт.

425-1510

JAM NUT,Jam, 5/8"-18, G5

Mounts #2 engine

1шт.
