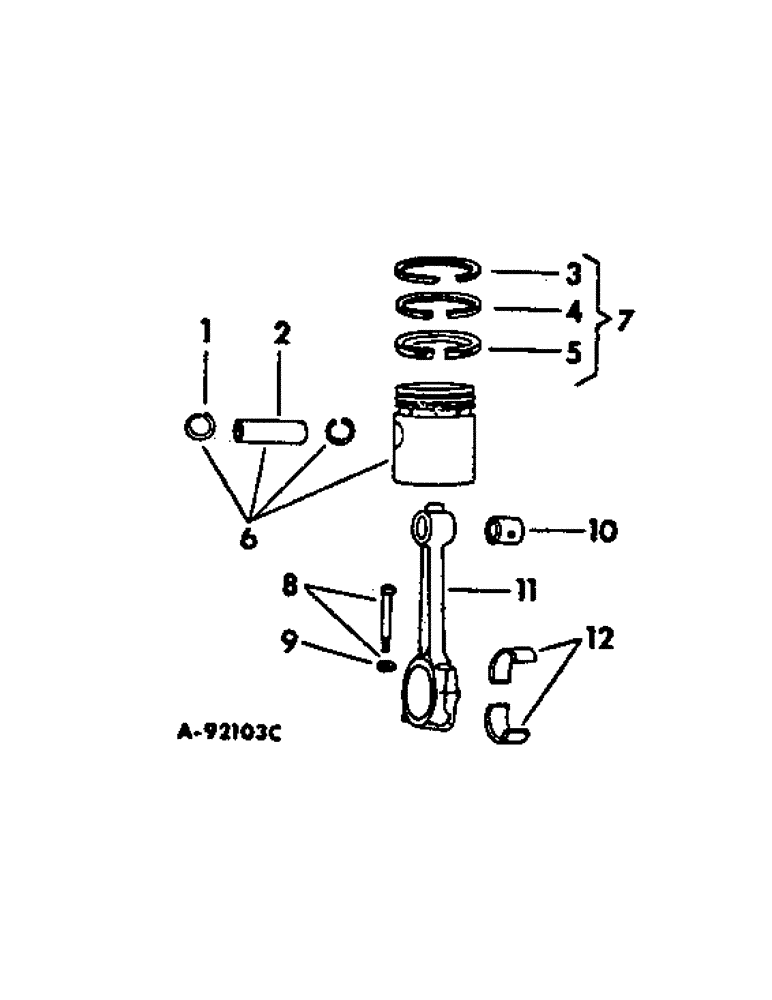

Запчасти Case IH FARMALL CUB (12-04) - POWER, C-60 ENGINE, CONNECTING RODS AND PISTONS Power

1

251242R1

RING

RETAINER, piston pin

8шт.

2

251241R2

PISTON PIN

PIN, piston

4шт.

2

352084R1

PIN

piston, .005 O/S

4шт.

3

RING, compression, top or first groove, not serviced separately, order piston ring package

1шт.

4

RING, compression, second groove, not serviced separately, order piston ring package

1шт.

5

RING, oil regulating piston, third or bottom groove, not serviced separately, order piston ring package

1шт.

6

405007R11

PISTON

ASSY, std, aluminum, dome top pistons, International cub tractors w/serial no. 264568 and above

4шт.

6

530980R11

PISTON

ASSY, .010 O/S, aluminum, dome top pistons, International cub tractors w/serial no. 264568 and above

4шт.

6

405008R11

PISTON

ASSY, .020 O/S, aluminum, dome top pistons, International cub tractors w/serial no. 264568 and above

4шт.

6

531532R11

PISTON

ASSY, .030 O/S, aluminum, dome top pistons, International cub tractors w/serial no. 264568 and above

4шт.

6

405009R11

PISTON

ASSY, .040 O/S. aluminum, dome top pistons, International cub tractors w/serial no. 264568 and above

4шт.

7

539354R1

PISTON RING SET

PACKAGE, piston ring service, std and .010 O/S

4шт.

7

539355R1

RING

PACKAGE, piston ring service, .020 O/S

4шт.

7

539356R1

SET

PACKAGE, piston ring service, .030 O/S

4шт.

7

539357R1

RING

PACKAGE, piston ring srevice, .040 O/S

4шт.

8

251249R21

BOLT

ASSY, connecting rod

8шт.

9

353791R1

NUT

connecting rod bolt, order bolt assembly, 251249R21, Farmall cub tractors w/engine serial no. 501 to 57557 and, Serial Range: 59290-59482

8шт.

9

353831R1

NUT

connecting rod bolt, all machines except Farmall cub tractors w/engine serial no. 501 to 57557 and, Serial Range: 59290-59482

8шт.

10

251247R1

BEARING

BUSHING, piston pin

4шт.

11

527457R11

ROD, CONNECTING

ROD ASSY, connecting, for service replacement of 251246R13, order 527457R11 and corresponding bearings

4шт.

12

251248R21

CRANKSHAFT BEARING

BEARING ASSY, connecting rod, std, see note A

4шт.

12

527458R11

BEARING

ASSY, connecting rod, std, see note B

4шт.

12

355273R11

CRANKSHAFT BEARING

BEARING ASSY, connecting rod, .002 U/S, see note A

4шт.

12

527460R11

BEARING

ASSY, connecting rod, .002 U/S, see note B

4шт.

12

376604R11

BEARING ASSY

BEARING ASSY, connecting rod, .010 U/S, see note A

4шт.

12

527461R11

BEARING ASSY

BEARING ASSY, connecting rod, .010 U/S, see note B

4шт.

12

376606R11

BEARING ASSY

BEARING ASSY, connecting rod, .020 U/S, see note A

4шт.

12

527462R11

BEARING ASSY

BEARING ASSY, connecting rod, .020 U/S, see note B

4шт.

12

251254R21

CRANKSHAFT BEARING

ASSY, connecting rod, .030 U/S, see note A

4шт.

12

527463R11

BEARING ASSY

BEARING ASSY, connecting rod, .030 U/S, see note B

4шт.

251250R93

PISTON ASSY.

PISTON W/RINGS, standard, cast iron, flat top pistons, replaces 251240R1, International cub tractors with serial no. 264567 and below, Farmall cub tractors and cub lo-boy tractors

4шт.

352183R94

PISTON

SET OF FOUR PISTONS W/RINGS, assy, .020 O/S, includes pistons, replaces 352182R1, cast iron flat top pistons, International cub tractors with serial no. 264567 and below, Farmall cub tractors and cub lo-boy tractors

1шт.

364856R94

PISTON

SET OF FOUR PISTONS W/RINGS, assy, .040 O/S, includes pistons, replaces 364857R1, cast iron, flat top pistons, International cub tractors with serial no. 264567 and below, Farmall cub tractors and cub lo-boy tractors

1шт.
