(09-13[1]) - FRAME, CUSHION SPRING, FOR TRACTORS EQUIPPED WITH FAST HITCH

Запчасти Case IH FARMALL CUB (09-13[1]) - FRAME, CUSHION SPRING, FOR TRACTORS EQUIPPED WITH FAST HITCH (12) - FRAME

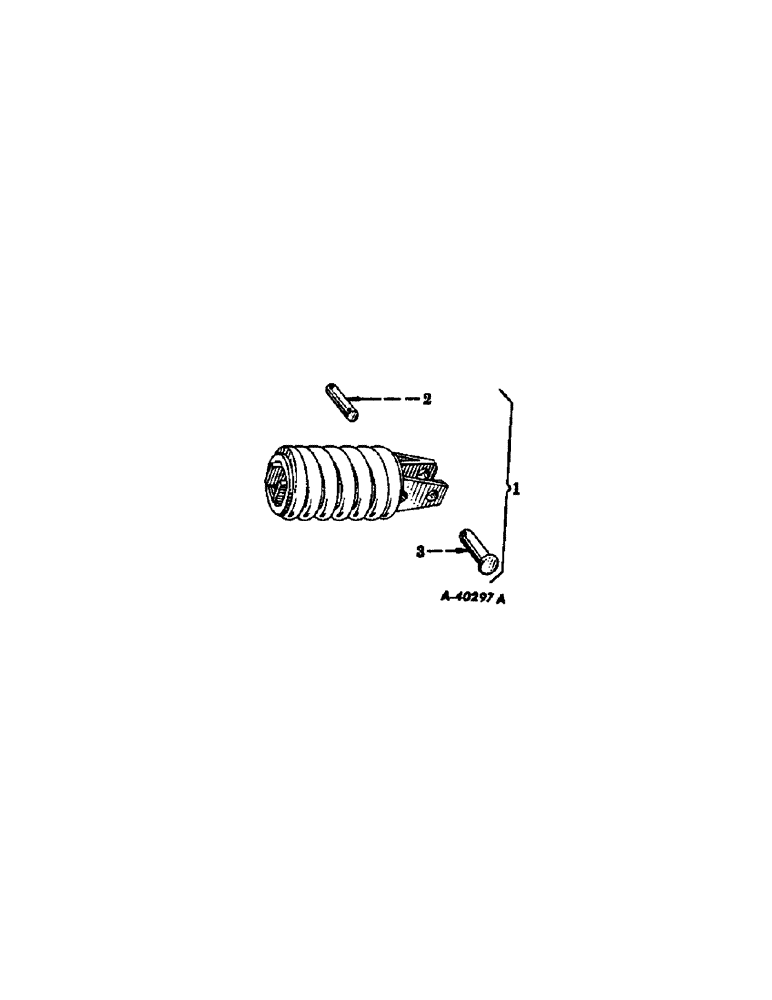

Схема запчастей Case IH FARMALL CUB - (09-13[1]) - FRAME, CUSHION SPRING, FOR TRACTORS EQUIPPED WITH FAST HITCH (12) - FRAME
2
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

520057R91

PARTS ACCESSORY, fast-hitch cushion spring, consists of parts listed in this unit

1шт.

2

520115R1

PIN, spring retaining

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

2шт.

3

520121R1

PIN, cushion spring strap

1шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

Выбрано товаров: 5
