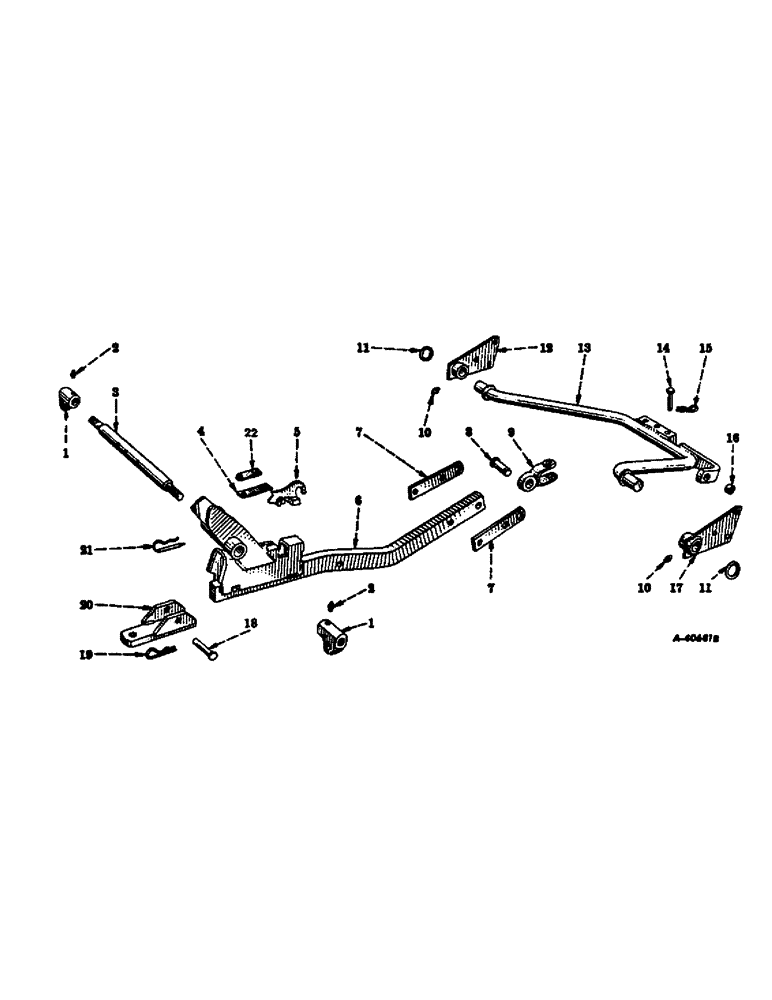

Запчасти Case IH FARMALL CUB (09-10) - FRAME, FAST-HITCH, CUB LO-BOY TRACTORS, BALL, DRAFT LINK, PULL BAR AND SUPPORTS (12) - FRAME
№
Артикул
Название
Примечание
Количество
1
520129R1
SWIVEL, lateral link lower
2шт.
2
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
3
520139R1
SUPPORT, pull bar
1шт.
4
522839R1
VALVE SPRING
SPRING, latch
1шт.
179833
BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd
1шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, , Not used on hitch with auxiliary latch spring 3/8"
1шт.
5
393500R1
LATCH ASSY.
LATCH, pull bar, will work for 523110R3
1шт.
6
521414R11
BAR ASSY, pull
1шт.
7
520102R1
STRAP, pull bar extension, not used on tractors equipped with cushion spring
2шт.
17604R1
BOLT (SPREADER),Hex, 5/8"-11 x 2 3/4", G2
BOLT, 5/8-11 x 2-3/4 hex-hd mach
1шт.
17630R1
BOLT
3/4-10 x 3 hex-hd mach
1шт.
102639
NUT,5/8"-11, G5
1шт.
425-1012
NUT,3/4"-10, G5
3/4-10 hex.
1шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
103326
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
8
363415R1
PIN
pull bar pivot, not used on tractors equipped with cushion spring
1шт.
13121R1
Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"
1шт.
9
520069R1
YOKE
BRACKET, pull bar pivot
1шт.
10
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
2шт.
11
552423R1
WASHER
1-13/32 x 2-1/8 x 11 ga
2шт.
12
521420R91
PLATE ASSY, attaching hitch LH
1шт.
17450R1
BOLT, 5/8-11 x 1-1/4 hex-hd mach
3шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
13
521404R11
BALL ASSY, hitch
1шт.
13157R1
PIN, 1/4 x 2 self-opening cot.
2шт.
14
520296R1
PIN
pull bar pivot bracket
1шт.
15
520175R1
CLIP
PIN, 3/16 quick-attachable cot.
1шт.
16
520042R1
BUSHING, screw clevis
1шт.
17
521421R91
PLATE ASSY, attaching hitch RH
1шт.
17450R1
BOLT, 5/8-11 x 1-1/4 hex-hd mach
3шт.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
3шт.
18
PO12095
HEADED PIN,15.88mm OD x 84.12mm L
PIN, 5/8 x 3-5/16 std-hd drilled
1шт.
19
520175R1
CLIP
PIN, 3/16 quick-attachable cot.
1шт.
20
520095R2
EXTENSION
pull bar
1шт.
21
520174R11
LINCH PIN,7.92mm OD x 88.91mm L
PIN ASSY, quick-attachable cot.
1шт.
22
522840R2
VALVE SPRING
SPRING, auxiliary latch, used to increase spring pressure
1шт.
Выбрано товаров: 36
