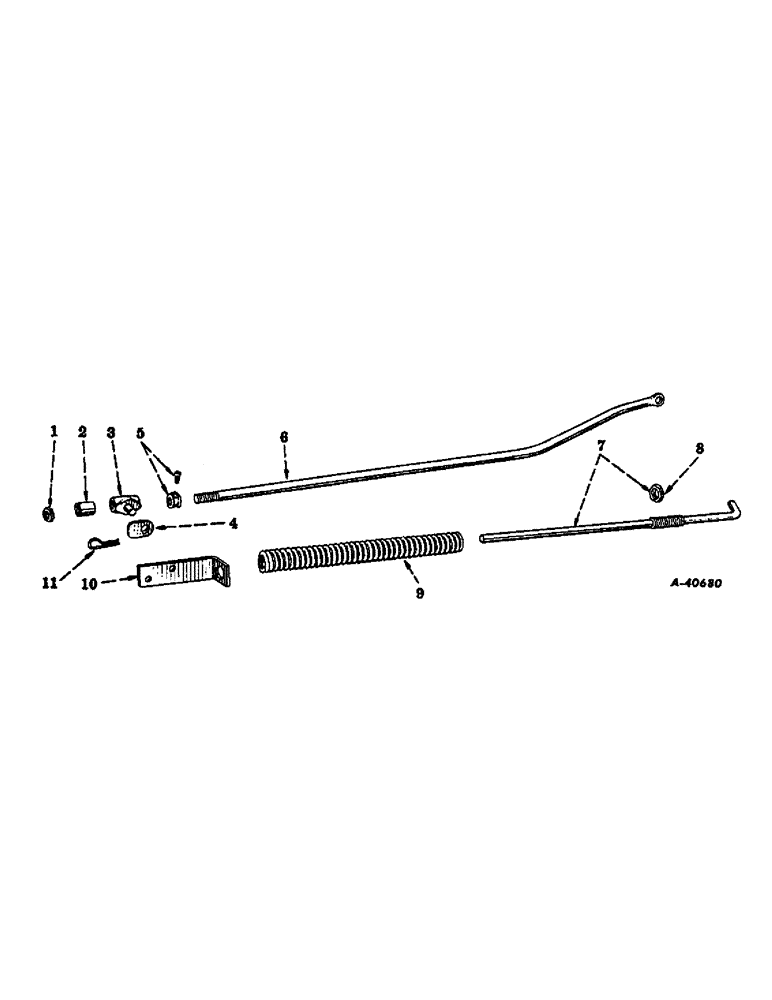

Запчасти Case IH FARMALL CUB (09-09) - FRAME, FAST-HITCH, CUB LO-BOY TRACTORS, LIFT LINK AND HELPER SPRING CONNECTIONS (12) - FRAME

ATTACHMENT, fast-hitch, 364121R91, for tractors equipped with touch-control system, composed of (1) bolt 17430R1, (1) bolt 17446R1, (6) bolt 17450R1, (3) bolt 17459R1, (1) bolt 17525R1, (2) bolt 17578R1, (2) bolt 271560, (1) fast-hitch unit 521042R91 (NSS), (4) spacer 521426R1, (7) washer 103525

1шт.

1

425-1414

JAM NUT,Jam, 7/8"-9, G5

1шт.

2

521425R1

BUSHING, lift link

1шт.

3

521401R1

TRUNNION, lift link

1шт.

4

520122R1

BUSHING

trunnion

1шт.

5

PO2041X

COLLAR

COLAR W/SCREW, 110447, set

1шт.

85-15010

SET SCREW,Sq Hd, 1/2"-13 x 5/8"

SCREW, 1/2-13 x 5/8 sq-hd cup-pt set

1шт.

6

521409R11

LINK W/NUT, 218444, lift

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

7

520163R91

ROD W/NUT, 218446, helper spring

1шт.

13094R1

Pin, Split (Cotter), 3/16" x 1 1/4", self-opening 3/16" x 1 1/4"

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

8

218446

NUT,Jam, 1 1/8"-7, G5

1-1/8-7 hex, jam

1шт.

9

520160R1

SPRING

helper

1шт.

10

521415R1

GUIDE, helper spring rod

1шт.

17578R1

BOLT (SPREADER),Hex, 5/8"-11 x 2 1/2", G2

BOLT, 5/8-11 x 2-1/2 hex-hd mach

2шт.

11

520175R1

CLIP

PIN, 3/16 quick-attachable cot.

1шт.
