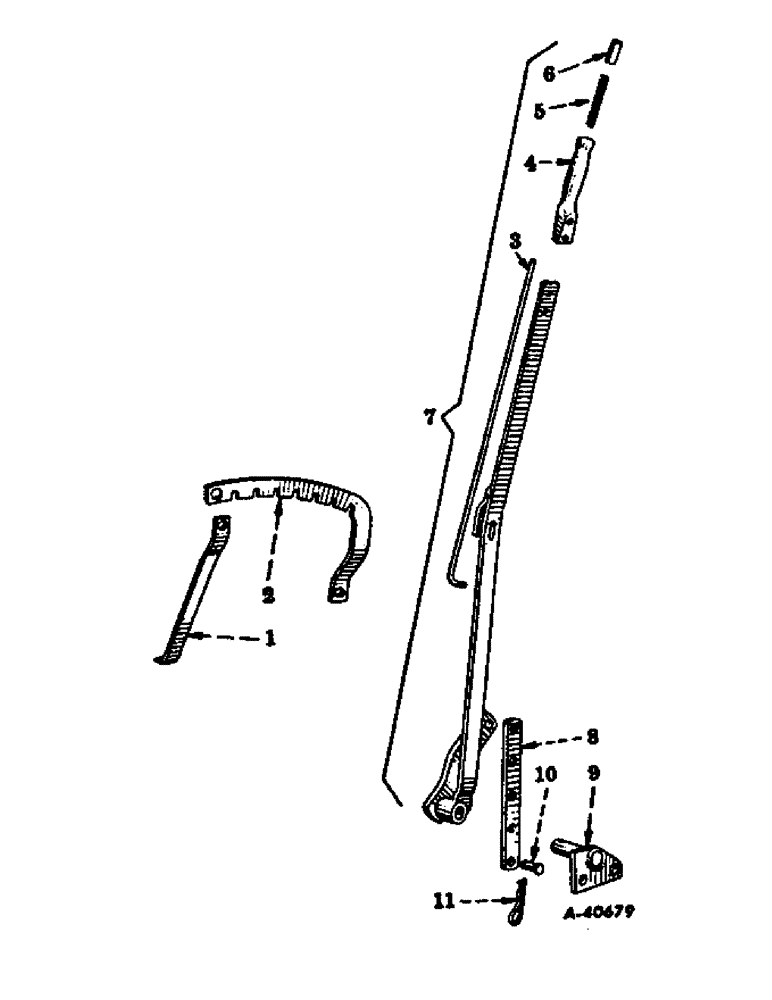

Запчасти Case IH FARMALL CUB (09-08) - FRAME, FAST-HITCH, CUB TRACTORS, ADJUSTING LEVER W/QUADRANT BRACE, HITCHES W/DEPTH ADJUSTING LEVER (12) - FRAME

1

520159R1

BRACE, quadrant

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8-16 x 1 hex-hd mach

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

1/2-13 x 1 hex-hd mach

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2-13 x 1-1/4 hex-hd mach

2шт.

102635

NUT,3/8"-16, G5

1шт.

102637

NUT,1/2"-13, G5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

120389

WASHER,7/16"

17/32 x 1-1/8 x 16 ga znd

1шт.

2

520156R1

QUADRANT, adjusting lever

1шт.

3

520138R1

ROD, latch

1шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

1шт.

Q1505

WASHER

13/32 x 1 x 16 ga

1шт.

4

511962R1

HANDLE, adjusting lever

1шт.

104182

SPINDLE

RIVET, 5/16 x 7/8 cks

2шт.

446363

WASHER,5/16"

13/32 x 3/4 x 16 ga

1шт.

5

2067A

SPRING

push button

1шт.

6

511964R1

BUTTON, push

1шт.

142485

GROOVED PIN,1/8" x 5/8", Type A

Pin, Grooved, 1/8" x 5/8", Type A

1шт.

7

520164R91

LEVER ASSY, adjusting, composed of (1) button 511964R1, (1) handle 511962R1, (1) lever 520152R11 (NSS), (1) pin 142485 (NSS), (1) pin 13042R1, (2) rivet 104182, (1) rod 520138R1, (1) spring 2067A, (1) washer Q1505, (1) washer 446363

1шт.

8

520158R1

LINK, lever arm

2шт.

520161R1

PIN, lever link upper

1шт.

460309R1

COTTER PIN

PIN, 11/64 quick-attachable cot.

1шт.

9

520145R11

PLATE ASSY, lever pivot

1шт.

17450R1

BOLT, 5/8-11 x 1-1/4 hex-hd mach

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

Q5036

WASHER

1-1/32 x 1-3/4 x 16 ga

1шт.

10

520161R1

PIN, lever link lower

1шт.

11

520175R1

CLIP

PIN, 3/16 quick-attachable cot.

1шт.
