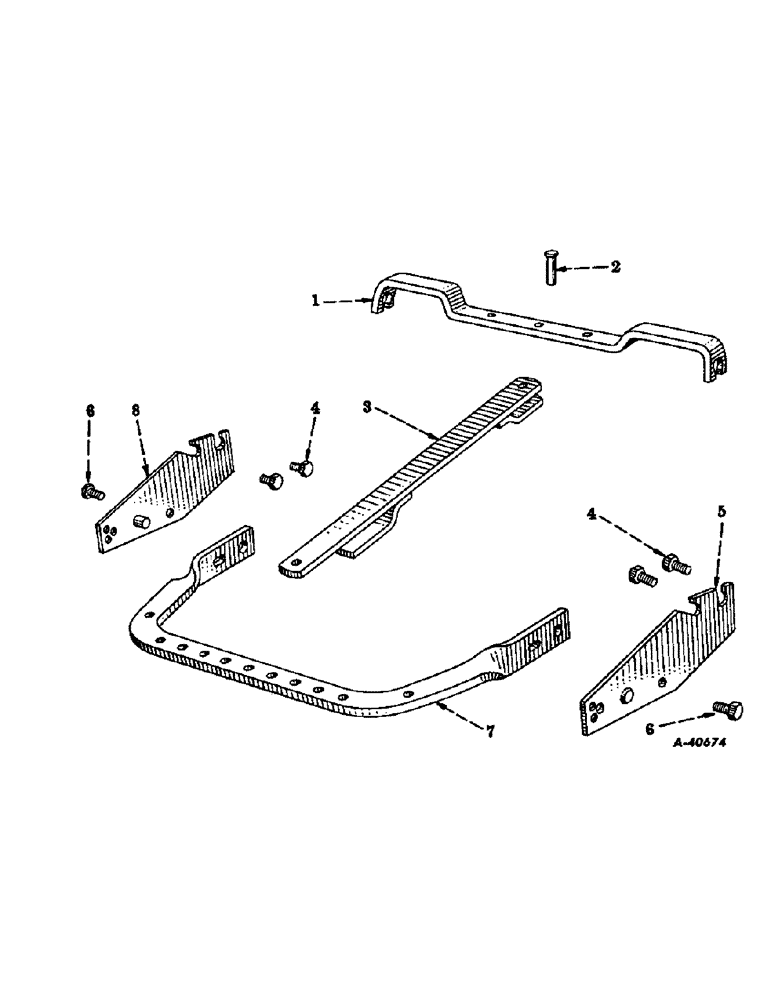

Запчасти Case IH FARMALL CUB (09-02) - FRAME, FIXED DRAWBAR AND SWINGING DRAWBAR, CUB LO-BOY TRACTORS (12) - FRAME

1

364041R1

BAR, swinging drawbar anchor

1шт.

352714R1

SPACER, swinging drawbar anchor bar

1шт.

2

Q3558

PIN, swinging drawbar pivot

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

3

364040R11

DRAWBAR ASSY, swinging

1шт.

4

351679R1

BOLT (SPREADER),5/8" - 11 x 1"

BOLT, drawbar bracket

4шт.

5

364039R11

BRACKET

ASSY, quick attachable drawbar RH

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

6

351679R1

BOLT (SPREADER),5/8" - 11 x 1"

BOLT, swinging drawbar anchor bar

2шт.

7

350963R1

DRAWBAR, quick attachable

1шт.

102637

NUT,1/2"-13, G5

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, 1/2-13 x 1-3/4 hex-hd cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

106265

WASHER,1/2"

9/16 x 1-3/8 x 12 ga

2шт.

8

364038R11

BRACKET ASSY, quick attachable drawbar LH

1шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.
