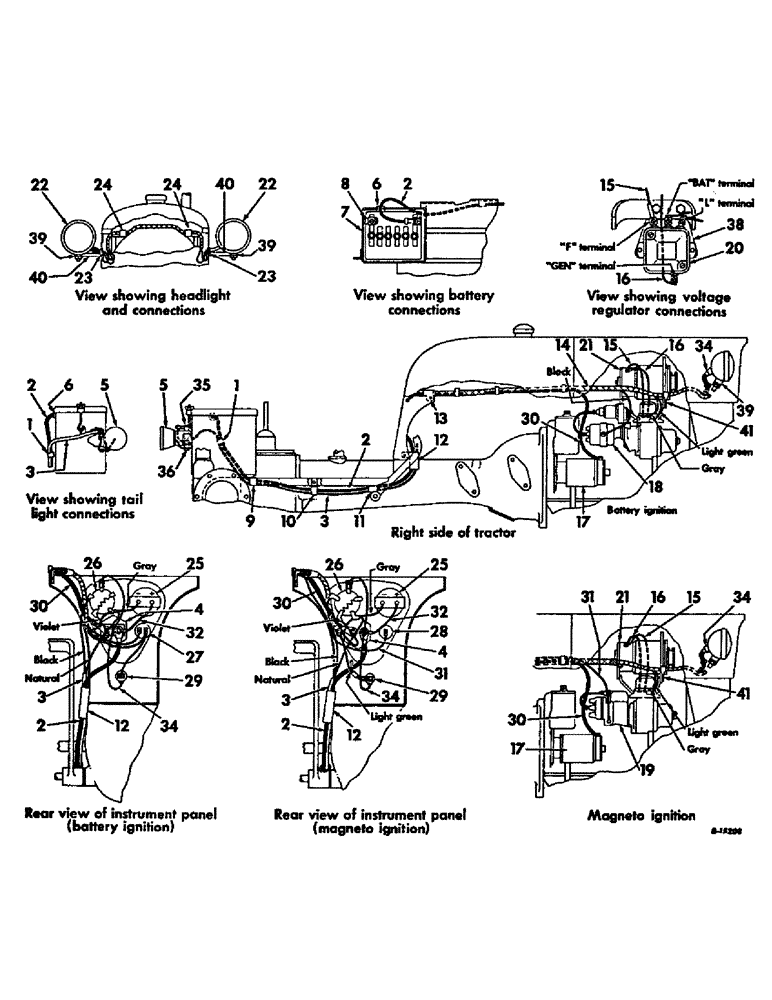

Запчасти Case IH FARMALL CUB (08-31) - ELECTRICAL STARTING AND LIGHTING SYSTEM, 12 VOLT (06) - ELECTRICAL

1

363500R1

CLIP

STRAP, cable wrapping

1шт.

2

387263R91

CABLE

W/BOLT, 356062R91, battery to starting switch

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

3

387312R91

HARNESS

CABLE ASSY, rear light

1шт.

4

376295R91

SWITCH

ASSY, starting

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

124920

JAM NUT,Jam, 5/16"-24, G5

2шт.

453049

SCREW,Slotted Pan Hd, 1/4"-20 x 3/4"

1/4-20 x 3/4 C-Z slt-pan-hd mach

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16559R1

WASHER,1/4"

17/64 x 5/8 x .049 C-Z

2шт.

5

121846C91

LIGHT

ASSY, tail, replaces 376850R91, for components see list of parts under details of tail light

1шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

6

52118D

GROMMET

battery box

1шт.

7

IHPR20H

DRY BATTERY

12 volt

1шт.

8

629029R92

NEG BATTERY CABLE

STRAP W/BOLT, 356062R91, Serial Range: battery-ground

1шт.

120512HX

BOLT AND NUT,Sq Hd, 5/16" - 18 x 1 3/8", W/Hex Nut

BOLT ASSY, terminal

1шт.

9

370383R1

CLIP

cable, underneath platform, 1/2 in. opening

1шт.

9

371035R1

CLIP

cable, underneath platform, 7/8 in. opening

1шт.

10

371036R1

CLIP

third bolt from rear, underneath platform, 7/8 in. opening

1шт.

10

263513R91

CLIP

third bolt from rear, underneath platform, 1/2 in. opening

1шт.

11

363500R1

CLIP

STRAP, cable wrapping, between pedal and clutch housing

1шт.

12

363504R1

CLIP, inside right side fuel tank support

1шт.

103088

NUT,#10-32

10-32 hex.

1шт.

100763

SCREW, 10-32 x 3/8 slt-rd-hd mach

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

13

371034R1

CLIP, cable harness, RH side, on inside edge of hood support

1шт.

14

404353R1

HARNESS

ASSY, cable, replaces 387262R91

1шт.

15

358113R92

CABLE, generator, F, terminal to regulator, F, terminal

1шт.

16

358112R92

CABLE

generator, A, terminal to regulator, Gen, terminal

1шт.

17

1107327

MOTOR

ASSY, cranking, order 1109352, for components see list of parts under details of cranking motor

1шт.

NLS

NO LONGER SERVICED

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

18

BATTERY IGNIITON UNIT, refer to C-60 engine group 12

1шт.

19

MAGNETO ASSY, refer to C-60 engine group 12

1шт.

20

121577C1

GOVERNOR

REGULATOR ASSY, voltage

1шт.

109084

NUT,1/4"-20, G5

2шт.

179792

BOLT,Hex, 1/4" - 20 x 9/16"

SCREW, 1/4-20 x 9/16 hex-hd cap

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

21

GENERATOR ASSY, refer to generator and connections

1шт.

22

376849R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items are sealed beam unit, 373662R91 and connection 530029R91, optional w/391005R91

2шт.

22

391005R91

HEADLIGHT

LIGHT ASSY, head, only serviceable items are sealed beam unit, 373078R1, retainer 676078R1 and connector 530029R91

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

23

120302

GROMMET,3/8" ID x 27/32" x .188", Diag Cut

no. 6 rubber, in hood

2шт.

24

362121R1

CLIP

head light cable harness

2шт.

109084

NUT,1/4"-20, G5

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4-20 x 1/2 slt-rd-hd mach

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

378424R91

GAUGE

INDICATOR ASSY, charge, replaces 360053R92

1шт.

26

376851R92

SWITCH

ASSY, lighting, 12 volt

1шт.

27

403562R2

SWITCH

ASSY, battery ignition key

1шт.

131313C1

KEY, IGNITION

KEY, switch

1шт.

365502R1

NUT

switch mounting

1шт.

375431R1

LOCK WASHER

switch mounting

1шт.

28

379593R92

SWITCH

ASSY, magneto ignition key

1шт.

382458R2

KEY

switch

1шт.

365502R1

NUT

switch mounting, unit A

1шт.

375431R1

LOCK WASHER

switch mounting nut

1шт.

29

376852R91

HOUSING

ASSY, fuse

1шт.

9426333

FUSE,15 Amp, Type 3AG

cartridge type AGC 15

1шт.

30

387264R91

CABLE W/BOLT, 356062R91, battery to cranking motor

1шт.

356062R91

BOLT

ASSY, terminal

1шт.

31

387267R91

CABLE, magneto ignition, Serial Range: switch-magneto

1шт.

32

387266R91

CABLE

ASSY, starting switch to charge indicator, red

1шт.

33

387310R91

CABLE ASSY, fuse housing to lighting switch

1шт.

34

387311R1

ROD, CONNECTING

BODY, connector

2шт.

35

362121R1

CLIP

rear light cable

1шт.

36

366460R1

CABLE CLIP

CLIP, tail light cable

1шт.

37

(Not used in this application)

1шт.

38

354247R1

BRACKET, voltage regulator mounting

1шт.

39

45569D

SPACER

head light

2шт.

40

351341R1

BOLT

POST, head light

2шт.

114507

JAM NUT,Jam, 5/8"-11, G5

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

41

363660R1

CLIP

cable harness, on generator front mounting bolt

1шт.
